TreeMapLevels in EJ 1 ASP.NET MVC TreeMap

18 Nov 2017 / 6 minutes to read

The Levels of TreeMap can be categorized into two types as,

  • FlatLevel
  • Hierarchical Level

Following customization options are available to customize the treemap level as per your requirements.

  • To specify the background color for the group, you can use GroupBackground property.

  • To specify the border color for the group, you can use GroupBorderColor property.

  • To maintain the border thickness for the group, you can use GroupBorderThickness property.

  • You can specify the gaps between groups using GroupGap property.

  • You can specify the padding using GroupPadding property.

  • For specifying the header height, you can use HeaderHeight property.

  • You can customize the header template using HeaderTemplate property.

  • To specify the label position, you can use LabelPosition property.

  • To specify the label template for treemap, you can use LabelTemplate property.

  • You can specify the label visibility using LabelVisibilityMode property.

  • You can control the label visibility using ShowLabels property.

  • For controlling text overflow, you can use TextOverflow property.

Flat Level

Group Path

You can use GroupPath property for every flat level of the TreeMap control. It is a path to a field on the source object that serves as the “Group” for the level specified. You can group the data based on the GroupPath in the TreeMap control. When the GroupPath is not specified, then the items are not grouped and the data is displayed in the order specified in the DataSource.

Group Gap

You can use GroupGap property to separate the items from every flat level and to differentiate the levels mentioned in the TreeMap control.

  • cshtml
  • @(Html.EJ().TreeMap("treemap")

    		.DataSource(datasource)

    		.ColorValuePath("Growth")

    		.WeightValuePath("Population")

    		.Levels(lv =>

    		{

    			lv.GroupPath("Continent")

    				.GroupGap(5).Add();

    		})

    		.Render())

    TreeMapLevels_img1

    Hierarchical Level

    TreeMap Hierarchical level is used to define levels for hierarchical data collection that contains tree-structured data.

    @(Html.EJ().TreeMap("treemap")

    		.DataSource(datasource)

    		.WeightValuePath("Population")

    		.Render())
    public class ContinentData

    	{

    		public string Region { get; set; }

    		public double Growth { get; set; }

    		public long Population { get; set; }

    		public static List<ContinentData> GetAsiaData()

    		{

    			List<ContinentData> Asia = new List<ContinentData>();

    			Asia.Add(new ContinentData() { Region = "Southern Asia", Growth = 1.32, Population = 1749046000 });

    			Asia.Add(new ContinentData() { Region = "Eastern Asia", Growth = 0.57, Population = 1620807000 });

    			Asia.Add(new ContinentData() { Region = "South-Eastern Asia", Growth = 1.20, Population = 618793000 });

    			Asia.Add(new ContinentData() { Region = "Western Asia", Growth = 1.98, Population = 245707000 });

    			Asia.Add(new ContinentData() { Region = "Central Asia", Growth = 1.43, Population = 64370000 });

    			return Asia;

    		}

    		public static List<ContinentData> GetEuropeData()

    		{

    			List<ContinentData> Europe = new List<ContinentData>();

    			Europe.Add(new ContinentData() { Region = "Europe", Growth = 0.10, Population = 742452000 });

    			return Europe;

    		}

    		public static List<ContinentData> GetAmericaData()

    		{

    			List<ContinentData> America = new List<ContinentData>();

    			America.Add(new ContinentData() {  Region = "South America", Growth = 1.06, Population = 406740000 });

    			America.Add(new ContinentData() {  Region = "Northern America", Growth = 0.85, Population = 355361000 });

    			America.Add(new ContinentData() {  Region = "Central America", Growth = 1.40, Population = 167387000 });

    			return America;

    		}

    		public static List<ContinentData> GetAfricaData()

    		{

    			List<ContinentData> Africa = new List<ContinentData>();

    			Africa.Add(new ContinentData() { Region = "Eastern Africa", Growth = 2.89, Population = 373202000 });

    			Africa.Add(new ContinentData() { Region = "Western Africa", Growth = 2.78, Population = 331255000 });

    			Africa.Add(new ContinentData() { Region = "Northern Africa", Growth = 1.70, Population = 210002000 });

    			Africa.Add(new ContinentData() { Region = "Middle Africa", Growth = 2.79, Population = 135750000 });

    			Africa.Add(new ContinentData() { Region = "Southern Africa", Growth = 0.91, Population = 60425000 });

    			return Africa;

    		}

    	}

    	public class TreeMapPopulationData

    	{

    		public string Continent { get; set; }

    		public List<ContinentData> Data { get; set; }

    		public static List<TreeMapPopulationData> GetData()

    		{

    			List<TreeMapPopulationData> population = new List<TreeMapPopulationData>();

    			population.Add(new TreeMapPopulationData() { Continent = "Asia", Data = ContinentData.GetAsiaData()});

    			population.Add(new TreeMapPopulationData() { Continent = "Europe", Data = ContinentData.GetEuropeData()});

    			population.Add(new TreeMapPopulationData() { Continent = "America", Data = ContinentData.GetAmericaData()});

    			population.Add(new TreeMapPopulationData() { Continent = "Africa", Data = ContinentData.GetAfricaData() });

    			return population;

    		}

    	}

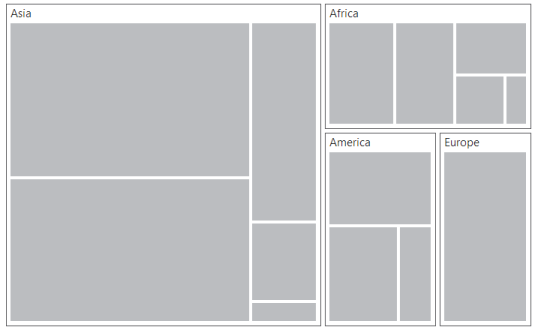

    TreeMapLevels_img2
