Getting Started

This section explains briefly how to create a Ribbon in your application with ASP.NET MVC. You can refer MVC Getting Started documentation to create new project and add necessary dll’s and script files.

Control Initialization

Ribbon can be initialized with ApplicationTab and UL list is needed for binding Menu to application Menu which can be specified through MenuItemID which denotes Id of UL.

Define the Application Tab with Type as Menu to render simple Ribbon control.

  • cshtml
  • @(Html.EJ().Ribbon("defaultRibbon")
         .Width("500")
         .ApplicationTab(app => {
             app.Type(ApplicationTabType.Menu).MenuItemID("Ribbon").MenuSettings(new MenuProperties() {
                 OpenOnClick = false
             });
            }))
            <ul id="Ribbon">
            <li>
                <a>FILE</a>
                <ul>
                    <li><a>New</a></li>
                    <li><a>Open</a></li>
                    <li><a>Save</a></li>
                    <li><a>Save As</a></li>
                    <li><a>Print</a></li>
                </ul>
            </li>
        </ul>

    NOTE

    Set the required Width to Ribbon, else default parent container or window Width will be considered.

    Adding Tabs

    RibbonTab is a set of related groups which are combined into single item. For creating Tab, Id and Text properties should be specified.

  • cshtml
  • @(Html.EJ().Ribbon("defaultRibbon")
            .Width("500")
            .ApplicationTab(app => {
                app.Type(ApplicationTabType.Menu).MenuItemID("Ribbon").MenuSettings(new MenuProperties() {
                    OpenOnClick = false
                });
            })
            .RibbonTabs(tab => {
                tab.Id("home").Text("HOME").TabGroups(tabgroup => {}).Add();
            })
                 )
         <ul id="Ribbon">
            <li>
                <a>FILE</a>
                <ul>
                    <li><a>New</a></li>
                    <li><a>Open</a></li>
                    <li><a>Save</a></li>
                    <li><a>Save As</a></li>
                    <li><a>Print</a></li>
                </ul>
            </li>
        </ul>

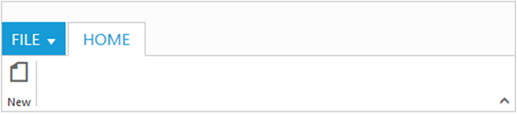

    Configuring Groups

    List of controls are combined as logical ContentGroups into RibbonTabs. TabGroup alignment type as “Rows/Columns”, Default is Rows.

    Create TabGroup item with Text specified and add ContentGroup to ContentGroup collection with Button control settings.

  • cshtml
  • @(Html.EJ().Ribbon("defaultRibbon")
        .Width("500")
        .ApplicationTab(app => {
            app.Type(ApplicationTabType.Menu).MenuItemID("Ribbon").MenuSettings(new MenuProperties() {
                OpenOnClick = false
            });
        })
        .RibbonTabs(tab => {
            tab.Id("home").Text("HOME").TabGroups(tabgroup => {
                tabgroup.Text("New").AlignType(RibbonAlignType.Rows).Content(ctn => {
                    ctn.ContentGroups(contentGroup => {
                        contentGroup.Id("new").Text("New").ButtonSettings(new ButtonProperties() {
                            ContentType = ContentType.ImageOnly,
                                ImagePosition = ImagePosition.ImageTop,
                                PrefixIcon = "e-icon e-Ribbon e-new",
                                Click = "executeAction"
                        }).Add();
                    }).ContentDefaults(df => df.Type(RibbonButtonType.Button).Width("60px").Height("70px")).Add();
                }).Add();
            }).Add();
        }))
            <ul id="Ribbon">
            <li>
                <a>FILE</a>
                <ul>
                    <li><a>New</a></li>
                    <li><a>Open</a></li>
                    <li><a>Save</a></li>
                    <li><a>Save As</a></li>
                    <li><a>Print</a></li>
                </ul>
            </li>
        </ul>
        }
        @section StyleSection{
        <link href="~/Content/ej/Ribbon-css/ej.icons.css" rel="stylesheet" />
        }

    Adding Controls to Group

    Syncfusion ASP.NET MVC Controls can be added to TabGroup’s content with corresponding Type specified like Button, SplitButton, ToggleButton, DropDownList, Gallery, Custom, etc. Default type is Button.

    @(Html.EJ().Ribbon("defaultRibbon")
        .Width("500")
        .ApplicationTab(app => {
            app.Type(ApplicationTabType.Menu).MenuItemID("Ribbon").MenuSettings(new MenuProperties() {
                OpenOnClick = false
            });
        })
        .RibbonTabs(tab => {
            tab.Id("home").Text("HOME").TabGroups(tabGroup => {
                tabGroup.Text("SplitButton & Dropdown").AlignType(RibbonAlignType.Columns).Content(ctn => {
                    ctn.ContentGroups(contentGroup => {
                        contentGroup.Id("paste").Text("Paste").SplitButtonSettings(new SplitButtonProperties() {
                            ContentType = ContentType.ImageOnly,
                                PrefixIcon = "e-icon e-Ribbon e-Ribbonpaste",
                                TargetID = "pasteSplit",
                                ArrowPosition = ArrowPosition.Bottom,
                                ButtonMode = ButtonMode.Dropdown

                        }).Add();
                    }).ContentDefaults(df => df.Type(RibbonButtonType.SplitButton).Width("50px").Height("70px")).Add();
                    ctn.ContentGroups(contentGroup => {
                        contentGroup.Id("fontFamily").DropdownSettings(new DropDownListProperties() {
                            DataSource = (IEnumerable < FontFamily > ) ViewBag.datasource,
                                Text = "Segoe UI",
                                Select = "executeAction",
                                Width = "150px"
                        }).Add();

                    }).ContentDefaults(df => df.Type(RibbonButtonType.DropDownList).Height("28px")).Add();
                }).Add();
            }).Add();
        })))
        <ul id="Ribbon">
            <li>
                <a>FILE</a>
                <ul>
                    <li><a>New</a></li>
                    <li><a>Open</a></li>
                    <li><a>Save</a></li>
                    <li><a>Save As</a></li>
                    <li><a>Print</a></li>
                </ul>
            </li>
        </ul>
        <ul id="pasteSplit">
            <li><a>Paste</a></li>
        </ul>
        }
        @section StyleSection{
        <link href="~/Content/ej/Ribbon-css/ej.icons.css" rel="stylesheet" />
        <style>
            .e-pastetip {
                background-image: url("../Content/ej/common-images/Ribbon/paste.png");
                background-repeat: no-repeat;
                height: 64px;
                width: 64px;
            }
        </style>
        }
    public partial class RibbonController: Controller
        {
    		List<FontFamily> fontFamily1 = new List<FontFamily>();
            List<FontPoint> fontPoint1 = new List<FontPoint>();
            public ActionResult RibbonFeatures()
            {
                fontFamily1.Add(new FontFamily { text = "Segoe UI" });
                fontFamily1.Add(new FontFamily { text = "Arial" });
                fontFamily1.Add(new FontFamily { text = "Times New Roman" });
                fontFamily1.Add(new FontFamily { text = "Tahoma" });
                fontFamily1.Add(new FontFamily { text = "Helvetica" });
                ViewBag.datasource = fontFamily1;
                return View();
             }
        }

    User Interface

    Ribbon component able to integrate any custom components and customized their functionality in application end. Our Ribbon component is similar to Microsoft products(Word). The Ribbon UI consists of several sections like Application Tab, Quick Access Toolbar, Tab, Contextual Tab, Gallery and etc.The following screenshot shows the diagrammatic detail of Ribbon UI:

    From above screenshot, you can see Ribbon has several subcomponents for different functionalities. The upcoming sections explains the brief details of each functionalities and their customizations.
