Export

Exporting feature provides support to export TreeGrid content to excel and PDF files. To export the contents, the ExcelExport and PdfExport toolbar items must be added in the toolbar using the ToolbarItems property of ToolbarSettings. When you click, the toolbar exporting icons, it internally invokes the export public method of TreeGrid object to export.

The below code snippet explains the above behavior,

<ej:TreeGrid runat="server" ID="TreeGridControlExporting" ChildMapping="SubTasks" TreeColumnIndex="1" IsResponsive="true" OnServerPdfExporting="TreeGridControlExporting_ServerPdfExporting" OnServerExcelExporting="TreeGridControlExporting_ServerExcelExporting" >
            <Columns>
                <ej:TreeGridColumn HeaderText="Task Id" Field="TaskID" Width="80" />
                <ej:TreeGridColumn HeaderText="Task Name" Field="TaskName" />
                <ej:TreeGridColumn HeaderText="Start Date" Field="StartDate" />
                <ej:TreeGridColumn HeaderText="End Date" Field="EndDate" />
                <ej:TreeGridColumn HeaderText="Duration" Field="Duration" />
            </Columns>
            <EditSettings AllowDeleting="false" />
            <SizeSettings Width="100%" Height="450px" />
            <ToolbarSettings ShowToolbar="true" ToolbarItems="pdfExport,excelExport" />
        </ej:TreeGrid>
public partial class TreeGridExporting : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
            TaskDetailsCollection TaskCollection = new TaskDetailsCollection();
            this.TreeGridControlExporting.DataSource = TaskCollection.GetDataSource();
            this.TreeGridControlExporting.DataBind();
        }

        protected void TreeGridControlExporting_ServerPdfExporting(object sender, Syncfusion.JavaScript.Web.TreeGridEventArgs e)
        {
            PdfExport exp = new PdfExport();
            TreeGridExportSettings settings = new TreeGridExportSettings();
            settings.Theme = ExportTheme.FlatLime;
            exp.Export(this.TreeGridControlExporting.Model, (IEnumerable)this.TreeGridControlExporting.DataSource, settings, "Export");
        }

        protected void TreeGridControlExporting_ServerExcelExporting(object sender, Syncfusion.JavaScript.Web.TreeGridEventArgs e)
          {
            ExcelExport exp = new ExcelExport();
            TreeGridExportSettings settings = new TreeGridExportSettings();
            settings.Theme = ExportTheme.FlatLime;
            exp.Export(this.TreeGridControlExporting.Model, (IEnumerable)this.TreeGridControlExporting.DataSource, "Export.xlsx", ExcelVersion.Excel2010, new TreeGridExportSettings() { Theme = ExportTheme.BootstrapTheme });
          }
    }

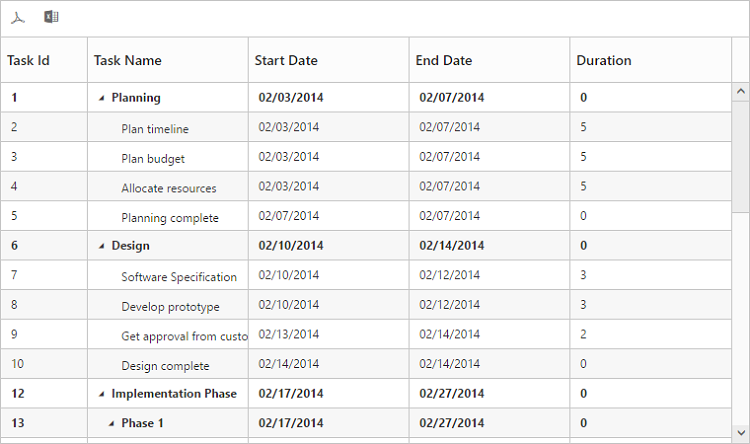

The below screen shot shows TreeGrid with excel and PDF exporting enabled.

Server dependencies

Export Helper functions are available in the Assembly Syncfusion.EJ.Export, which is available in the Essential Studio & Essential ASP.NET builds. The list of assemblies needed for TreeGrid Export as follows

  • Syncfusion.EJ
  • Syncfusion.EJ.Export
  • Syncfusion.Linq.Base
  • Syncfusion.Compression.Base
  • Syncfusion.XlsIO.Base
  • Syncfusion.PDF.Base

Supported Export Types

Currently server helper function allows following two types of exporting.

  • Excel
  • PDF

Multiple exporting

Multiple export is used for export more than one TreeGrid object in the same file. Multiple export in TreeGrid can be enabled by setting AllowMultipleExporting property to true. TreeGrid properties of all the TreeGrid which are available in current page are passed as string array parameter to controller action method.

The following code example describes exporting multiple TreeGrid in PDF

<div>
        <ej:TreeGrid runat="server" ID="TreeGridControlExporting" ChildMapping="SubTasks" TreeColumnIndex="1" IsResponsive="true" OnServerPdfExporting="TreeGridControlExporting_ServerPdfExporting">
            <Columns>
                <ej:TreeGridColumn HeaderText="Task Id" Field="TaskID" Width="80"/>
                <ej:TreeGridColumn HeaderText="Task Name" Field="TaskName" />
                <ej:TreeGridColumn HeaderText="Start Date" Field="StartDate" />
                <ej:TreeGridColumn HeaderText="End Date" Field="EndDate" />
                <ej:TreeGridColumn HeaderText="Duration" Field="Duration"/>
            </Columns>
            <EditSettings AllowDeleting="false" />
            <SizeSettings Width="100%" Height="250px" />
            <ToolbarSettings ShowToolbar="true" ToolbarItems="pdfExport" />
        </ej:TreeGrid>
    </div>

     <div>
        <ej:TreeGrid runat="server" ID="TreeGridControlDesign" ChildMapping="SubTasks" TreeColumnIndex="1" EnableResize="true">
            <Columns>
                <ej:TreeGridColumn HeaderText="Task Id" Field="TaskID" Width="80"/>
                <ej:TreeGridColumn HeaderText="Task Name" Field="TaskName" />
                <ej:TreeGridColumn HeaderText="Start Date" Field="StartDate" />
                <ej:TreeGridColumn HeaderText="End Date" Field="EndDate" />
                <ej:TreeGridColumn HeaderText="Duration" Field="Duration"/>
            </Columns>
            <EditSettings AllowDeleting="false" />
            <SizeSettings Width="100%" Height="200px" />
        </ej:TreeGrid>
    </div>

     <div>
        <ej:TreeGrid runat="server" ID="TreeGridControlImplementation" ChildMapping="SubTasks" TreeColumnIndex="1" EnableResize="true">
            <Columns>
                <ej:TreeGridColumn HeaderText="Task Id" Field="TaskID" Width="80"/>
                <ej:TreeGridColumn HeaderText="Task Name" Field="TaskName" />
                <ej:TreeGridColumn HeaderText="Start Date" Field="StartDate" />
                <ej:TreeGridColumn HeaderText="End Date" Field="EndDate" />
                <ej:TreeGridColumn HeaderText="Duration" Field="Duration"/>
            </Columns>
            <EditSettings AllowDeleting="false" />
            <SizeSettings Width="100%" Height="250px" />
        </ej:TreeGrid>
    </div>
public partial class TreeGridMultipleExporting : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
            ExportTaskDetailsCollection TaskCollection = new ExportTaskDetailsCollection();
            this.TreeGridControlExporting.DataSource = TaskCollection.GetDataSource();
            this.TreeGridControlExporting.DataBind();
            this.TreeGridControlDesign.DataSource = TaskCollection.GetDesignPhaseDataSource();
            this.TreeGridControlDesign.DataBind();
            this.TreeGridControlImplementation.DataSource = TaskCollection.GetImplementationPhaseDataSource();
            this.TreeGridControlImplementation.DataBind();
        }

        protected void TreeGridControlExporting_ServerPdfExporting(object sender, Syncfusion.JavaScript.Web.TreeGridEventArgs e)
        {
            PdfExport exp = new PdfExport();
            PdfDocument document = exp.Export(this.TreeGridControlExporting.Model, (IEnumerable)this.TreeGridControlExporting.DataSource, new TreeGridExportSettings(){ Theme = ExportTheme.FlatLime},false,"Planning Phase");
            document = exp.Export(this.TreeGridControlDesign.Model, (IEnumerable)this.TreeGridControlDesign.DataSource, new TreeGridExportSettings() { Theme = ExportTheme.FlatLime }, "Export", document, false, "Design Phase");
            exp.Export(this.TreeGridControlImplementation.Model, (IEnumerable)this.TreeGridControlImplementation.DataSource, new TreeGridExportSettings() { Theme = ExportTheme.FlatLime }, "Export", document, true, "Implementation Phase");
        }
    }

You can also find the sample demo for multiple exporting in TreeGrid here.

Export Theme

The TreeGrid export supports the below themes,

  • flat-azure
  • flat-azure-dark
  • flat-lime
  • flat-lime-dark
  • flat-saffron
  • flat-saffron-dark
  • gradient-azure
  • gradient-azure-dark
  • gradient-lime
  • gradient-lime-dark
  • gradient-saffron
  • gradient-saffron-dark
  • bootstrap-theme

The desired theme should be passed as a parameter to the Export method and the code snippet for this as follows

  • c#
  • protected void TreeGridControlExporting_ServerPdfExporting(object sender, Syncfusion.JavaScript.Web.TreeGridEventArgs e)
            {
                PdfExport exp = new PdfExport();
                TreeGridExportSettings settings = new TreeGridExportSettings();
                settings.Theme = ExportTheme.FlatLime;
                exp.Export(this.TreeGridControlExporting.Model, (IEnumerable)this.TreeGridControlExporting.DataSource, settings, "Export");
            }

            protected void TreeGridControlExporting_ServerExcelExporting(object sender, Syncfusion.JavaScript.Web.TreeGridEventArgs e)
              {
                ExcelExport exp = new ExcelExport();
                TreeGridExportSettings settings = new TreeGridExportSettings();
                settings.Theme = ExportTheme.FlatLime;
                exp.Export(this.TreeGridControlExporting.Model, (IEnumerable)this.TreeGridControlExporting.DataSource, "Export.xlsx", ExcelVersion.Excel2010, new TreeGridExportSettings() { Theme = ExportTheme.BootstrapTheme });
              }
