Grouping bar

13 Feb 20193 minutes to read

Initialization

Grouping bar allows you to dynamically alter the report by filter and remove operations in the pivot grid control. Based on the OLAP data source and report bound to the pivot grid control, the grouping bar will be automatically populated. You can enable the grouping bar option in the pivot grid by setting the EnableGroupingBar property to true.

Client mode

HTML

<ej:PivotGrid ID="PivotGrid1" runat="server" EnableGroupingBar="true">
    <DataSource Catalog="Adventure Works DW 2008 SE" Cube="Adventure Works" Data="https://bi.syncfusion.com/olap/msmdpump.dll">
        <Rows>
            <ej:Field FieldName="[Date].[Fiscal]"></ej:Field>
        </Rows>
        <Columns>
            <ej:Field FieldName="[Customer].[Customer Geography]"></ej:Field>
        </Columns>
        <Values>
            <ej:Field Axis="Column">
                <Measures>
                    <ej:MeasuresItems FieldName="[Measures].[Internet Sales Amount]" />
                </Measures>
            </ej:Field>
        </Values>
    </DataSource>
</ej:PivotGrid>

</ej:PivotGrid>

Grouping bar in ASP NET pivot grid OLAP client mode

Server mode

HTML

<ej:PivotGrid ID="PivotGrid1" runat=server url="/PivotGridService" EnableGroupingBar="true">
</ej:PivotGrid>

Grouping bar in ASP NET pivot grid OLAP server mode

Drag and drop

You can alter the report on fly through the drag and drop operation.

Drag and drop in ASP NET pivot grid control

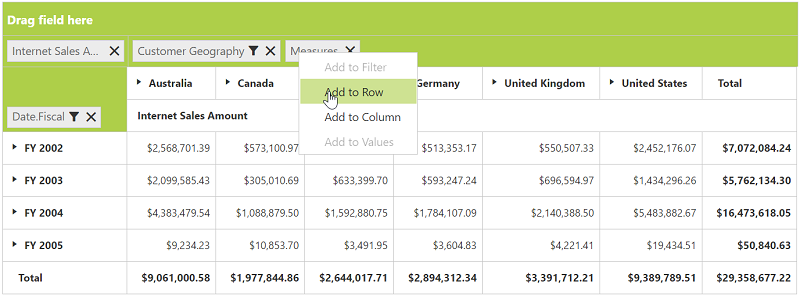

You can also alter the report by using the context menu.

Context menu in ASP NET pivot grid control

Searching values

Search option available in the grouping bar allows you to search a specific value that should be filtered from the list of values in the filter pop-up window.

Filtering option in grouping bar of ASP NET pivot grid control

Searching in member editor dialog of ASP NET pivot grid control

Filtering values

The filtering option available in the grouping bar allows you to select a specific set of values that should be displayed in the pivot grid control. At least, one value should present in the checked state while filtering. If else, the OK button will be disabled.

Filtering icon in grouping bar of ASP NET pivot grid control

Filtering in member editor dialog of ASP NET pivot grid control

Removing field

The remove option available in the grouping bar allows you to completely remove a specific field from the pivot grid control. The remove operation can be achieved by clicking the remove icon available in each field or by dragging and dropping the field out of the grouping bar region.

Remove icon in grouping bar of ASP NET pivot grid control

Removed items in ASP NET pivot grid control
