Getting started

Important
Starting with v16.2.0.x, if you refer to Syncfusion assemblies from trial setup or from the NuGet feed, include a license key in your projects. Refer to this link to learn about registering Syncfusion license key in your ASP.NET Core application to use our components.

Creating a simple application with pivot gauge and relational data source (client mode)

This section covers the information required to populate a simple pivot gauge with relational data completely on the client-side.

Project initialization

Create a new ASP.NET Empty Web Application by using the Visual Studio IDE and name the project “PivotGaugeDemo”.

Now, add a Web Form to the ASP.NET empty web application. For adding a Web Form, right-click the project in the solution explorer and select Add > New Item. In the Add New Item window, select Web Form and name it Default.aspx, and then click Add.

Add the following dependency libraries as references to your web application. To add them to your application, right-click References in the solution explorer and select Add Reference. In the Reference Manager dialog, under Assemblies > Extension, the following Syncfusion libraries will be found.

  • Syncfusion.EJ
  • Syncfusion.EJ.Export
  • Syncfusion.EJ.Pivot

Register the referenced assemblies in Web.config files available at the root of the application.

  • xml
  • <compilation debug="true" targetFramework="4.5">
        <assemblies>
            ……
            ……
            <add assembly="Syncfusion.EJ, Version= 17.2450.0.46, Culture=neutral, PublicKeyToken=3d67ed1f87d44c89" />
            <add assembly="Syncfusion.EJ.Pivot, Version= 17.2450.0.46, Culture=neutral, PublicKeyToken=3d67ed1f87d44c89" />
            <add assembly="Syncfusion.EJ.Export, Version= 17.2450.0.46, Culture=neutral, PublicKeyToken=3d67ed1f87d44c89" />

        </assemblies>
    </compilation>

    Scripts and CSS initialization

    The scripts and style sheets that are required to render the pivot gauge widget in a web application are mentioned below in an appropriate order:

    1. ej.web.all.min.css
    2. jQuery-3.0.0.min.js
    3. ej.web.all.min.js

    Click here here to know more about scripts and style sheets available in online (CDN link).

    Scripts and style sheets are referred under the <head> tag in the Default.aspx file.

  • html
  • <head>
        <link href="http://cdn.syncfusion.com/17.2.0.46/js/web/flat-azure/ej.web.all.min.css" rel="stylesheet" type="text/css" />
        <script src="http://cdn.syncfusion.com/js/assets/external/jquery-3.0.0.min.js" type="text/javascript"></script>
        <script src="http://cdn.syncfusion.com/17.2.0.46/js/web/ej.web.all.min.js" type="text/javascript"></script>
    </head>

    Initialize pivot gauge

    You can drag and drop the pivot gauge control from the toolbox (under Syncfusion BI Web category) or manually define the widget as shown in the following code sample of the “Default.aspx” page.

  • html
  • <%@ Register Assembly="Syncfusion.EJ.Pivot" Namespace="Syncfusion.JavaScript.Web" TagPrefix="ej" %>
    <%@ Register Assembly="Syncfusion.EJ.Pivot" Namespace="Syncfusion.JavaScript.Models" TagPrefix="ej" %>
    <%@ Register Assembly="Syncfusion.EJ" Namespace="Syncfusion.JavaScript.DataVisualization.Models" TagPrefix="ej" %>

    <html>
    ……
    ……
    <body>
    <form runat="server">
            <ej:PivotGauge ID="MyPivotGauge1" runat="server" ClientIDMode="Static">
            </ej:PivotGauge>
            <asp:ScriptManager ID="ScriptManager1" runat="server"></asp:ScriptManager>
    </form>
    </body>

    </html>

    Populate pivot gauge with data

    This section illustrates how to populate the pivot gauge control by using a sample JSON data as shown below:

  • html
  • <ej:PivotGauge ID="MyPivotGauge1" runat="server" ClientIDMode="Static">
        <ClientSideEvents Load="onLoad" />
    </ej:PivotGauge>
    <asp:ScriptManager ID="ScriptManager1" runat="server"></asp:ScriptManager>
    <script type="text/javascript">
        function onLoad(args) {
            args.model.dataSource.data = [
                { Amount: 100, Country: "Canada", Product: "Bike" },
                { Amount: 200, Country: "Germany", Product: "Van" },
                { Amount: 300, Country: "Germany", Product: "Car" },
                { Amount: 150, Country: "United Kingdom", Product: "Bike" },
                { Amount: 200, Country: "Canada", Product: "Car" }
            ]
        }
    </script>

    The JSON data is set to the “Data” property present in the “DataSource” object. The “DataSource” object allows you to set both data source and the fields that should be displayed in the row, column, value, and filter section of the pivot gauge control.

  • html
  • <!DOCTYPE html>
    <html>

        //....
        <body>
            <form runat="server">
            <ej:PivotGauge ID="MyPivotGauge1" runat="server" BackgroundColor="transparent" ClientIDMode="Static">
                <DataSource>
                    <Rows>
                        <ej:Field FieldName="Country" FieldCaption="Country"></ej:Field>
                        <ej:Field FieldName="State" FieldCaption="State"></ej:Field>
                    </Rows>
                    <Columns>
                        <ej:Field FieldName="Product" FieldCaption="Product"></ej:Field>
                    </Columns>
                    <Values>
                        <ej:Field FieldName="Amount" FieldCaption="Amount"></ej:Field>
                        <ej:Field FieldName="Quantity" FieldCaption="Quantity"></ej:Field>
                    </Values>
                </DataSource>
                <ClientSideEvents RenderSuccess="loadPivotGaugeTheme" Load ="onLoad"/>
                <Scales>
                    <ej:CircularScales ShowRanges="true" Radius="150" ShowScaleBar="true" Size="1"  ShowIndicators="true" ShowLabels="true">
                        <Border Width ="0.5" />
                        <PointerCollection>
                            <ej:Pointers ShowBackNeedle="true" BackNeedleLength="20"  Length="125" Width="7" ></ej:Pointers>
                            <ej:Pointers Type="Marker" MarkerType="Diamond" DistanceFromScale="5" Placement="Center" BackgroundColor="#29A4D9" Length="25" Width="15"></ej:Pointers>
                        </PointerCollection>
                        <TickCollection>
                            <ej:CircularTicks Type="Major" DistanceFromScale="2" Height="16" Width="1" Color="#8c8c8c" />
                            <ej:CircularTicks Type="Minor" Height="6" Width="1" DistanceFromScale="2" Color="#8c8c8c" />
                        </TickCollection>
                        <LabelCollection>
                            <ej:CircularLabels Color="#8c8c8c"></ej:CircularLabels>
                        </LabelCollection>
                        <RangeCollection>
                            <ej:CircularRanges DistanceFromScale="-5" BackgroundColor="#fc0606">
                            <Border Color="#fc0606"/>
                            </ej:CircularRanges>
                            <ej:CircularRanges DistanceFromScale="-5"></ej:CircularRanges>
                        </RangeCollection>
                        <CustomLabelCollection>
                            <ej:CircularCustomLabel Color="#666666">
                            <Position X="180" Y="290" />
                            <Font Size="10px" FontFamily="Segoe UI" FontStyle="Normal"></Font>
                            </ej:CircularCustomLabel>
                            <ej:CircularCustomLabel Color="#666666">
                            <Position X="180" Y="320" />
                            <Font Size="10px" FontFamily="Segoe UI" FontStyle="Normal"></Font>
                            </ej:CircularCustomLabel>
                            <ej:CircularCustomLabel Color="#666666">
                            <Position X="180" Y="150" />
                            <Font Size="12px" FontFamily="Segoe UI" FontStyle="Normal"></Font>
                            </ej:CircularCustomLabel>
                        </CustomLabelCollection>
                    </ej:CircularScales>
                </Scales>
                <LabelFormatSettings DecimalPlaces="2" />
                <ClientSideEvents Load="onLoad" />
                </ej:PivotGauge>
                <asp:ScriptManager ID="ScriptManager1" runat="server"></asp:ScriptManager>

                <script type="text/javascript">
                    function onLoad(args) {
                        args.model.dataSource.data = [
                            { Amount: 100, Country: "Canada", Product: "Bike" },
                            { Amount: 200, Country: "Germany", Product: "Van" },
                            { Amount: 300, Country: "Germany", Product: "Car" },
                            { Amount: 150, Country: "United Kingdom", Product: "Bike" },
                            { Amount: 200, Country: "Canada", Product: "Car" }
                        ]
                    }
                </script>
                </form>
        </body>
    </html>

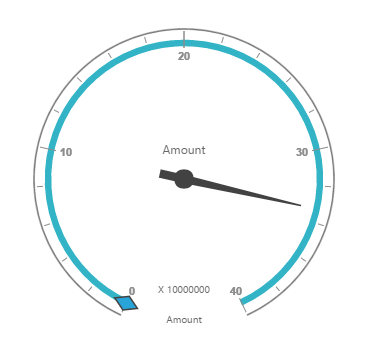

    The above code will generate a simple pivot gauge with values in “Country” field as segments, values in “Product” field as series, and “Amount” field as points.

    Creating a simple application with pivot gauge and relational data source (server mode)

    This section covers the information required to create a simple pivot gauge bound to the relational data source.

    NOTE

    ASP.NET empty web application contains a service that will transfer the data to server-side, process it, and return it to client-side for control rendering and re-rendering. The service utilized for communication can be either WCF or WebAPI based on user requirement.

    Project initialization

    Create a new ASP.NET Empty Web Application by using the Visual Studio IDE and name the project “PivotGaugeDemo”.

    Now, add a Web Form to the ASP.NET empty web application. For adding a Web Form, right-click the project in the solution explorer and select Add > New Item. In the Add New Item window, select Web Form and name it Default.aspx, and then click Add.

    Add the following dependency libraries as references to your web application. To add them to your application, right-click References in the solution explorer and select Add Reference. In the Reference Manager dialog, under Assemblies > Extension, the following Syncfusion libraries will be found.

    NOTE

    If you have installed any version of Essential Studio, then the location of Syncfusion libraries is [system drive:\Program Files (x86)\Syncfusion\Essential Studio\17.2.0.46\Assemblies].

    • Syncfusion.Compression.Base
    • Syncfusion.Linq.Base
    • Syncfusion.Olap.Base
    • Syncfusion.PivotAnalysis.Base
    • Syncfusion.EJ
    • Syncfusion.EJ.Web
    • Syncfusion.EJ.Export
    • Syncfusion.EJ.Pivot

    Register the referenced assemblies in Web.config files available at the root of the application.

  • xml
  • <compilation debug="true" targetFramework="4.5">
        <assemblies>
            ……
            ……
            <add assembly="Syncfusion.EJ, Version= 17.2450.0.46, Culture=neutral, PublicKeyToken=3d67ed1f87d44c89" />
            <add assembly="Syncfusion.EJ.Web, Version= 17.2450.0.46, Culture=neutral, PublicKeyToken=3d67ed1f87d44c89" />
            <add assembly="Syncfusion.EJ.Pivot, Version= 17.2450.0.46, Culture=neutral, PublicKeyToken=3d67ed1f87d44c89" />
            <add assembly="Syncfusion.EJ.Export, Version= 17.2450.0.46, Culture=neutral, PublicKeyToken=3d67ed1f87d44c89" />
            <add assembly="Syncfusion.Linq.Base, Version= 17.2450.0.46, Culture=neutral, PublicKeyToken=3d67ed1f87d44c89" />
            <add assembly="Syncfusion.Olap.Base, Version= 17.2450.0.46, Culture=neutral, PublicKeyToken=3d67ed1f87d44c89" />
        </assemblies>
    </compilation>

    Scripts and CSS initialization

    The scripts and style sheets that are required to render the pivot gauge widget in a web application are mentioned below in an appropriate order:

    1. ej.web.all.min.css
    2. jQuery-3.0.0.min.js
    3. ej.web.all.min.js

    Click here here to know more about scripts and style sheets available in online (CDN link).

    Scripts and style sheets are referred under the head tag in Default.aspx.

  • html
  • <head>
        <link href="http://cdn.syncfusion.com/17.2.0.46/js/web/flat-azure/ej.web.all.min.css" rel="stylesheet" type="text/css" />
        <script src="http://cdn.syncfusion.com/js/assets/external/jquery-3.0.0.min.js" type="text/javascript"></script>
        <script src="http://cdn.syncfusion.com/17.2.0.46/js/web/ej.web.all.min.js" type="text/javascript"></script>
    </head>

    Control initialization

    You can drag and drop the pivot gauge control from the toolbox (under Syncfusion BI Web category) or manually define the widget as shown in the following code sample of the “Default.aspx” page.

  • html
  • <%@ Register Assembly="Syncfusion.EJ.Pivot" Namespace="Syncfusion.JavaScript.Web" TagPrefix="ej" %>
    <%@ Register Assembly="Syncfusion.EJ.Pivot" Namespace="Syncfusion.JavaScript.Models" TagPrefix="ej" %>
    <%@ Register Assembly="Syncfusion.EJ" Namespace="Syncfusion.JavaScript.DataVisualization.Models" TagPrefix="ej" %>

    <html>
    ……
    ……
    <body>
            <ej:PivotGauge ID="MyPivotGauge1" runat="server" Url="/Relational"  ClientIDMode="Static">
            <ClientSideEvents RenderSuccess="loadPivotGaugeTheme"/>
            <Scales>
                <ej:CircularScales ShowRanges="true" Radius="150" ShowScaleBar="true" Size="1"  ShowIndicators="true" ShowLabels="true">
                    <Border Width ="0.5" />
                    <PointerCollection>
                        <ej:Pointers ShowBackNeedle="true" BackNeedleLength="20"  Length="125" Width="7" ></ej:Pointers>
                        <ej:Pointers Type="Marker" MarkerType="Diamond" DistanceFromScale="5" Placement="Center" BackgroundColor="#29A4D9" Length="25" Width="15"></ej:Pointers>
                    </PointerCollection>
                    <TickCollection>
                        <ej:CircularTicks Type="Major" DistanceFromScale="2" Height="16" Width="1" Color="#8c8c8c" />
                        <ej:CircularTicks Type="Minor" Height="6" Width="1" DistanceFromScale="2" Color="#8c8c8c" />
                    </TickCollection>
                    <LabelCollection>
                        <ej:CircularLabels Color="#8c8c8c"></ej:CircularLabels>
                    </LabelCollection>
                    <RangeCollection>
                        <ej:CircularRanges DistanceFromScale="-5" BackgroundColor="#fc0606">
                            <Border Color="#fc0606"/></ej:CircularRanges>
                        <ej:CircularRanges DistanceFromScale="-5"></ej:CircularRanges>
                    </RangeCollection>
                    <CustomLabelCollection>
                        <ej:CircularCustomLabel Color="#666666">
                            <Position X="180" Y="290" />
                            <Font Size="10px" FontFamily="Segoe UI" FontStyle="Normal"></Font>
                        </ej:CircularCustomLabel>
                        <ej:CircularCustomLabel Color="#666666">
                            <Position X="180" Y="320" />
                            <Font Size="10px" FontFamily="Segoe UI" FontStyle="Normal"></Font>
                        </ej:CircularCustomLabel>
                        <ej:CircularCustomLabel Color="#666666">
                            <Position X="180" Y="150" />
                            <Font Size="12px" FontFamily="Segoe UI" FontStyle="Normal"></Font>
                        </ej:CircularCustomLabel>
                    </CustomLabelCollection>
                </ej:CircularScales>
            </Scales>
            <LabelFormatSettings DecimalPlaces="2" />
          </ej:PivotGauge>
          <asp:ScriptManager ID="ScriptManager1" runat="server"></asp:ScriptManager>
    </form>
    </body>

    </html>

    The “Url” property in the pivot gauge widget points the service endpoint, where the data is processed and fetched in the form of JSON. The services used in the pivot gauge widget as an endpoint are WCF and WebAPI.

    NOTE

    The above “Default.aspx” contains WebAPI URL, which is “/Relational”. If the WCF service is used as an endpoint, the URL will look like “/RelationalService.svc”.

    WebAPI

    Adding a WebAPI controller

    To add a WebAPI controller in an existing empty web application, right-click the project in the solution explorer and select Add > New Item. In the Add New Item window, select WebAPI Controller Class and name it “RelationalController.cs”, and then click Add.

    Now, the WebAPI controller is added to the application with the file “RelationalController.cs”.

    NOTE

    While adding the WebAPI controller class, add the mandatory suffix “Controller”. For example, in the demo, the controller is named as “RelationalController”.

    Next, remove all the existing methods such as “Get”, “Post”, “Put”, and “Delete” present in the RelationalController.cs file.

  • c#
  • namespace PivotGaugeDemo
    {
        public class RelationalController: ApiController
        {

        }
    }

    List of namespaces

    Following are the list of namespaces to be added on top of the main class in the RelationalController.cs file:

  • c#
  • using Syncfusion.JavaScript;
    using Syncfusion.PivotAnalysis.Base;

    namespace PivotGaugeDemo
    {
        public class RelationalController : ApiController
        {

        }
    }

    Data source initialization

    A simple collection is provided as a data source for the pivot gauge in this demo section. This data source is placed inside a separate class “ProductSales” in the RelationalController.cs file. Refer to the following code example:

  • c#
  • namespace PivotGaugeDemo
    {
        //....
        //....

        internal class ProductSales
        {
            public string Product { get; set; }

            public string Date { get; set; }

            public string Country { get; set; }

            public string State { get; set; }

            public int Quantity { get; set; }

            public double Amount { get; set; }

            public static ProductSalesCollection GetSalesData()
            {
                /// Geography
                string[] countries = new string[] { "Australia", "Canada", "France", "Germany", "United Kingdom", "United States" };
                string[] ausStates = new string[] { "New South Wales", "Queensland", "South Australia", "Tasmania", "Victoria" };
                string[] canadaStates = new string[] { "Alberta", "British Columbia", "Brunswick", "Manitoba", "Ontario", "Quebec" };
                string[] franceStates = new string[] { "Charente-Maritime", "Essonne", "Garonne (Haute)", "Gers", };
                string[] germanyStates = new string[] { "Bayern", "Brandenburg", "Hamburg", "Hessen", "Nordrhein-Westfalen", "Saarland" };
                string[] ukStates = new string[] { "England" };
                string[] ussStates = new string[] { "New York", "North Carolina", "Alabama", "California", "Colorado", "New Mexico", "South Carolina" };

                /// Time
                string[] dates = new string[] { "FY 2005", "FY 2006", "FY 2007", "FY 2008", "FY 2009" };

                /// Products
                string[] products = new string[] { "Bike", "Van", "Car" };
                Random r = new Random(123345345);

                int numberOfRecords = 2000;
                ProductSalesCollection listOfProductSales = new ProductSalesCollection();
                for (int i = 0; i < numberOfRecords; i++)
                {
                    ProductSales sales = new ProductSales();
                    sales.Country = countries[r.Next(1, countries.GetLength(0))];
                    sales.Quantity = r.Next(1, 12);
                    /// 1 percent discount for 1 quantity
                    double discount = (30000 * sales.Quantity) * (double.Parse(sales.Quantity.ToString()) / 100);
                    sales.Amount = (30000 * sales.Quantity) - discount;
                    sales.Date = dates[r.Next(r.Next(dates.GetLength(0) + 1))];
                    sales.Product = products[r.Next(r.Next(products.GetLength(0) + 1))];
                    switch (sales.Product)
                    {
                        case "Car":
                        {
                            sales.Date = "FY 2005";
                            break;
                        }
                    }
                    switch (sales.Country)
                    {
                        case "Australia":
                        {
                            sales.State = ausStates[r.Next(ausStates.GetLength(0))];
                            break;
                        }
                        case "Canada":
                        {
                            sales.State = canadaStates[r.Next(canadaStates.GetLength(0))];
                            break;
                        }
                        case "France":
                        {
                            sales.State = franceStates[r.Next(franceStates.GetLength(0))];
                            break;
                        }
                        case "Germany":
                        {
                            sales.State = germanyStates[r.Next(germanyStates.GetLength(0))];
                            break;
                        }
                        case "United Kingdom":
                        {
                            sales.State = ukStates[r.Next(ukStates.GetLength(0))];
                            break;
                        }
                        case "United States":
                        {
                            sales.State = ussStates[r.Next(ussStates.GetLength(0))];
                            break;
                        }
                    }
                    listOfProductSales.Add(sales);
                }
                return listOfProductSales;
            }

            public override string ToString()
            {
                return string.Format("{0}-{1}-{2}", this.Country, this.State, this.Product);
            }

            public class ProductSalesCollection : List<ProductSales>
            {
            }
        }
    }

    Service methods in WebAPI controller

    Now, you can define the service methods in the RelationalController class, find in the RelationalController.cs file which was created while adding the WebAPI controller class to your web application.

  • c#
  • namespace PivotGaugeDemo
    {
        public class RelationalController : ApiController
        {
            PivotGauge htmlHelper = new PivotGauge();
            Dictionary<string, object> dict = new Dictionary<string, object>();

            [HttpPost]
            [ActionName("InitializeGauge")]
            public Dictionary<string, object> InitializeGauge(Dictionary<string, object> jsonResult)
            {
                htmlHelper.PivotReport = BindDefaultData();
                dict = htmlHelper.GetJsonData(jsonResult["action"].ToString(), ProductSales.GetSalesData());
                return dict;
            }

            private PivotReport BindDefaultData()
            {
                PivotReport pivotSetting = new PivotReport();
                pivotSetting.PivotRows.Add(new PivotItem { FieldMappingName = "Date", FieldHeader = "Date", TotalHeader = "Total" });
                pivotSetting.PivotColumns.Add(new PivotItem { FieldMappingName = "Product", FieldHeader = "Product", TotalHeader = "Total" });
                pivotSetting.PivotCalculations.Add(new PivotComputationInfo { CalculationName = "Amount", Description = "Amount", FieldHeader = "Amount", FieldName = "Amount", Format = "C", SummaryType = Syncfusion.PivotAnalysis.Base.SummaryType.DoubleTotalSum });
                return pivotSetting;
            }
        }
        .....
        ..... // Datasource initialization
        .....
    }

    Configure routing in global application class

    To add a Global.asax in your existing web application, right-click the project in the solution explorer and select Add > New item. In the Add New Item window, select Global Application class and name it “Global.asax”, and then click Add.

    After adding the Global.asax file, delete all methods in the Global class and add the namespace “using System.Web.Http;”, and then configure the routing as shown in the following code example:

  • c#
  • public class Global : System.Web.HttpApplication
    {
        protected void Application_Start(object sender, EventArgs e)
        {
            GlobalConfiguration.Configuration.Routes.MapHttpRoute(
                name: "DefaultApi",
                routeTemplate: "{controller}/{action}/{id}",
                defaults: new { id = RouteParameter.Optional });
            AppDomain.CurrentDomain.SetData("SQLServerCompactEditionUnderWebHosting", true);
        }
    }

    Now, the pivot gauge will be rendered as shown in the following image:

    WCF

    This section demonstrates the utilization of WCF service as endpoint binding the relational data source to a simple pivot gauge. For more details on this topic, click here.
