Data binding

Binding pivot gauge to offline cube

To connect to an OLAP cube available in the local machine, set the physical path of the cube in the connection string. The following code example illustrates this process:

  • c#
  • string connectionString = @"DataSource = system drive:\OfflineCube\Adventure_Works_Ext.cub; Provider = MSOLAP;";
    OlapDataManager DataManager = new OlapDataManager(connectionString);

    Binding pivot gauge to cube in local SQL Server

    To connect to an OLAP cube available in the SQL Server Analysis Service in the local machine, set the server name and database name in the connection string. If you have any credentials to connect your cube, then set the user ID and password attributes accordingly. The following code example illustrates this process:

  • c#
  • string connectionString = "Data source=localhost; Initial Catalog=Adventure Works DW;";
    OlapDataManager DataManager = new OlapDataManager(connectionString);

    Binding pivot gauge to cube in online SQL Server

    To connect to an OLAP cube available in the SQL Server Analysis Service in online server through XML/A, set the host server link and database name in the connection string. If you have any credentials to connect your cube, then set the user ID and password attributes accordingly. The following code example illustrates this process:

  • c#
  • string connectionString = "Data Source=http://bi.syncfusion.com/olap/msmdpump.dll; Initial Catalog=Adventure Works DW 2008 SE;";
    OlapDataManager DataManager = new OlapDataManager(connectionString);

    Binding pivot gauge to cube in online Mondrian Server

    To connect to an OLAP cube available in the Mondrian Server through XML/A, set the host server link and database name in the connection string. If you have any credentials to connect your cube, then set the user ID and password attributes accordingly. The following code example illustrates this process:

  • c#
  • string connectionString = @"Data Source = http://localhost:8080/mondrian/xmla; Initial Catalog =FoodMart;";
    OlapDataManager DataManager = new OlapDataManager(connectionString);
    DataManager.DataProvider.ProviderName = Syncfusion.Olap.DataProvider.Providers.Mondrian;

    Binding pivot gauge to cube in online Active Pivot Server

    To connect to an OLAP cube available in the Active Pivot Server through XML/A, set the host server link and database name in the connection string. If you have any credentials to connect your cube, then set the user ID and password attributes accordingly. The following code example illustrates this process:

  • c#
  • string connectionString = @"Data Source = http://localhost:8080/cva_s/xmla; Initial Catalog = CVAS;";
    OlapDataManager DataManager = new OlapDataManager(connectionString);
    DataManager.DataProvider.ProviderName=Syncfusion.Olap.DataProvider.Providers.ActivePivot;

    WCF

    Adding a WCF service

    To add a WCF service in an existing web application, right-click the project in the solution explorer and select Add > New Item. In the Add New Item window, select the WCF Service and name it “OlapService.svc”, and then click Add.

    Now, the WCF service is added to your application, which, in-turn, comprises the following files. The utilization of these files will be explained in the immediate sections.

    • OlapService.svc
    • OlapService.svc.cs
    • IOlapService.cs

    Configuring WCF service class

    Remove the “DoWork” method present in both OlapService.svc.cs and IOlapService.cs files. Next, add “AspNetCompatibilityRequirements” attribute on top of the main class present in OlapService.svc.cs and set the “RequirementsMode” value to “Allowed”.

  • c#
  • namespace PivotGaugeDemo
    {
        [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
        public class OlapService : IOlapService
        {

        }
    }

    List of dependency lLibraries

    Next, you can add the below-mentioned dependency libraries to your web application. These libraries can be found in the GAC (Global Assembly Cache).

    To add them to your web application, right-click References in the solution explorer and select Add Reference. In the Reference Manager dialog, under Assemblies > Extension, the following Syncfusion libraries are found.

    NOTE

    If you have installed any version of SQL Server Analysis Service (SSAS) or Microsoft ADOMD.NET utility, then the location of Microsoft.AnalysisServices.AdomdClient library is [system drive:\Program Files (x86)\Microsoft.NET\ADOMD.NET]. And if you have installed any version of Essential Studio, then the location of Syncfusion libraries is [system drive:\Program Files (x86)\Syncfusion\Essential Studio\17.2.0.46\Assemblies].

    • Microsoft.AnalysisServices.AdomdClient
    • Syncfusion.Compression.Base
    • Syncfusion.Linq.Base
    • Syncfusion.Olap.Base
    • Syncfusion.PivotAnalysis.Base
    • Syncfusion.EJ
    • Syncfusion.EJ.Web
    • Syncfusion.EJ.Export
    • Syncfusion.EJ.Pivot

    List of namespaces

    Following are the list of namespaces to be added on top of the main class in the OlapService.svc.cs file:

  • c#
  • using System.ServiceModel.Activation;
    using Syncfusion.Olap.Manager;
    using Syncfusion.Olap.Reports;
    using Syncfusion.JavaScript;
    using System.Collections.Generic;

    namespace PivotGaugeDemo
    {
        [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
        public class OlapService : IOlapService
        {

        }
    }

    Data source initialization

    Now, the connection string to connect the OLAP cube and the pivot gauge instances is created immediately in the main class of the OlapService.svc.cs file.

  • c#
  • namespace PivotGaugeDemo
    {
        [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
        public class OlapService : IOlapService
        {
            PivotGauge htmlHelper = new PivotGauge();
            string connectionString = "Data Source=http://bi.syncfusion.com/olap/msmdpump.dll; Initial Catalog=Adventure Works DW 2008 SE;";
            //Other codes

        }
    }

    Service methods in WCF service

    First, you can define the service methods in the IOlapService interface, find in the IOlapService.cs file which was created while adding the WCF Service to your web application.

  • c#
  • namespace PivotGaugeDemo
    {
        [ServiceContract]
        public interface IOlapService
        {
            [OperationContract]
            Dictionary<string, object> InitializeGauge(string action,string customObject);
        }
    }

    Then, you can elaborate the service methods in the main class that is found in the OlapService.svc.cs file.

  • c#
  • namespace PivotGaugeDemo
    {
        [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
        public class OlapService : IOlapService
        {
            PivotGauge htmlHelper = new PivotGauge();
            string connectionString = "Data Source=http://bi.syncfusion.com/olap/msmdpump.dll; Initial Catalog=Adventure Works DW 2008 SE;";

            public Dictionary<string, object> InitializeGauge(string action,string customObject)
            {
                OlapDataManager DataManager = new OlapDataManager(connectionString);
                DataManager.SetCurrentReport(CreateOlapReport());
                return htmlHelper.GetJsonData(action, DataManager);
            }

            private OlapReport CreateOlapReport()
            {
                OlapReport report = new OlapReport();
                report.CurrentCubeName = "Adventure Works";

                //Specifying the KPI name
                KpiElements kpiElement = new KpiElements();
                kpiElement.Elements.Add(new KpiElement { Name = "Internet Revenue", ShowKPIGoal = true, ShowKPIStatus = true, ShowKPIValue = true, ShowKPITrend = true });

                DimensionElement dimensionElementColumn = new DimensionElement();
                //Specifying the dimension name
                dimensionElementColumn.Name = "Customer";
                //Adding the level with the hierarchy Name
                dimensionElementColumn.AddLevel("Customer Geography", "Country");

                //Specifying the measure name
                MeasureElements measureElementColumn = new MeasureElements();
                measureElementColumn.Elements.Add(new MeasureElement { Name = "Internet Sales Amount" });

                DimensionElement dimensionElementRow = new DimensionElement();
                //Specifying the dimension name
                dimensionElementRow.Name = "Date";
                //Adding the level with the hierarchy Name
                dimensionElementRow.AddLevel("Fiscal", "Fiscal Year");
                dimensionElementRow.Hierarchy.LevelElements["Fiscal Year"].Add("FY 2004");
                dimensionElementRow.Hierarchy.LevelElements["Fiscal Year"].IncludeAvailableMembers = true;

                report.CategoricalElements.Add(dimensionElementColumn);
                report.CategoricalElements.Add(kpiElement);
                report.CategoricalElements.Add(measureElementColumn);
                report.SeriesElements.Add(dimensionElementRow);
                return report;
            }
        }
    }

    Configuring web configuration file

    You can expose the services through the properties such as binding, contract, and address by using an endpoint.

    • Contract: This property indicates that the contract of the endpoint is exposed. Refer to the IOlapService contract, and it is written as PivotGaugeDemo.IOlapService.
    • Binding: In your application, you can use webHttpBinding to post and receive requests and responses between the client-end and the service.
    • behaviorConfiguration: This property contains the name of the behavior to be used in the endpoint.

    The endpointBehaviors are illustrated as follows:

  • xml
  • <system.serviceModel>
        ……
        ……
        <services>
            <service name="PivotGaugeDemo.OlapService">
                <endpoint address="" behaviorConfiguration="PivotGaugeDemo.OlapServiceAspNetAjaxBehavior" binding="webHttpBinding" contract="PivotGaugeDemo.IOlapService" />
            </service>
        </services>
    </system.serviceModel>

    The endpointBehaviors contain all behaviors for an endpoint. You can link each endpoint to the respective behavior only by using the name property.

  • xml
  • <system.serviceModel>
        <behaviors>
            <endpointBehaviors>
                <behavior name="PivotGaugeDemo.OlapServiceAspNetAjaxBehavior">
                    <enableWebScript />
                </behavior>
            </endpointBehaviors>
        </behaviors>
        ……
        ……
    </system.serviceModel>

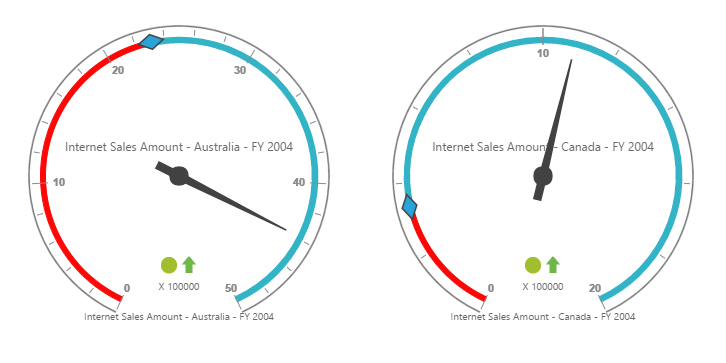

    Now, the pivot gauge is rendered with internet revenue for internet sales amount over a Fiscal Year 2004 across different customer geographic locations.
