Appearance and Styling in EJ 1 ASP.NET Core RadialSlider

11 Apr 20171 minute to read

You can customize RadialSlider control style and appearance by using available themes or cssClass property.


In order to apply styles to the RadialSlider control, refer to 2 files namely, ej.widgets.core.min.css and ej.theme.min.css. When you refer ej.web.all.min.css file, it is not necessary to include the files ej.widgets.core.min.css and ej.theme.min.css in your project, as ej.web.all.min.css is the combination of these two.

By default, there are 13 theme support available for RadialSlider component, namely:

  • flat-azure
  • flat-azure-dark
  • fat-lime
  • flat-lime-dark
  • flat-saffron
  • flat-saffron-dark
  • gradient-azure
  • gradient-azure-dark
  • gradient-lime
  • gradient-lime-dark
  • gradient-saffron
  • gradient-saffron-dark
  • bootstrap


RadialSlider control also allows you to customize its appearance using user-defined CSS. To apply custom themes you can use CssClass property, which sets the root class for RadialSlider theme.

Using this css-class you can override the existing styles under the theme style sheet. In the following example, the value of CssClass property is set as “Purple-dark”. Purple-dark is added as root class to RadialSlider control at the runtime. From this root class you can customize the RadialSlider appearance.

Add the following code example to the corresponding CSHTML page to render the RadialSlider with the customized style.

  • cshtml
  • <ej-radial-slider id="slider" css-class="Purple-darks" />

    Using below style sheet,exiting theme style sheet file has been over-ridden using root class “Purple-dark”.

    Add the following code in your style section.

  • css
  • .Purple-dark{

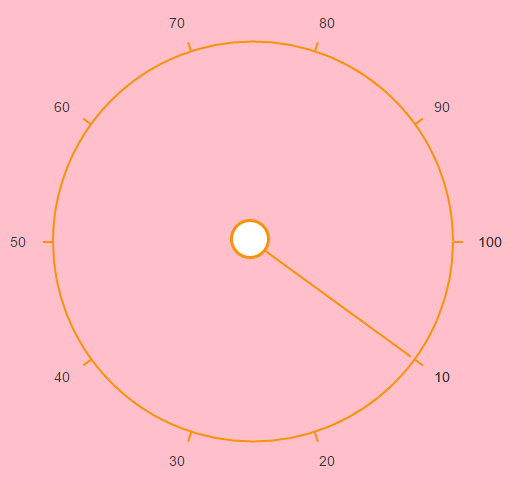

    The following screenshot illustrates the output of the above code.
