Unscheduled Tasks

Unscheduled tasks are planned for a project but do not have definite schedule dates. Now, the Gantt control supports rendering the unscheduled tasks. You can create or update the tasks with anyone of start date, end date and duration values or none. You can enable or disable the unscheduled tasks by using the allow-unscheduled-task property.

Unscheduled Task Types

Unscheduled tasks have various task types with only either start date, end date or duration.

Start Date Only

End Date Only

Duration Only

Milestone

The milestone task, one without a start and end date, but having a duration value of zero is represented as follows.

Define unscheduled tasks in data source

You can define the various types of unscheduled tasks in the data source as follows.

  • c#
  • public List<GanttTaskDetails> GetUnscheduledData()
            {
                List<GanttTaskDetails> tasks = new List<GanttTaskDetails>();

                // Start Date only
                tasks[0].SubTasks[0].SubTasks.Add(new GanttTaskDetails()
                {
                    TaskID = 3,
                    TaskName = "Plan timeline",
                    StartDate = "02/01/2017",
                    Duration = null,
                    EndDate = null,
                    Progress = "100",
                    ResourceID = new List<object>() { 1 }
                });
                //Duration only
                tasks[0].SubTasks[0].SubTasks.Add(new GanttTaskDetails()
                {
                    TaskID = 4,
                    TaskName = "Plan budget",
                    StartDate = null,
                    EndDate = null,
                    Duration = 5,
                    Progress = "100",
                    ResourceID = new List<object>() { 5 }
                });
                //End date only
                tasks[0].SubTasks[0].SubTasks.Add(new GanttTaskDetails()
                {
                    TaskID = 5,
                    TaskName = "Allocate resources",
                    StartDate = null,
                    EndDate = "02/7/2017",
                    Duration = null,
                    Progress = "100",
                    ResourceID = new List<object>() { 6 }
                });
                // Milestone
                tasks[0].SubTasks[1].SubTasks.Add(new GanttTaskDetails()
                {
                    TaskID = 8,
                    TaskName = "Software Specification",
                    StartDate = null,
                    EndDate = null,
                    Duration = 0,
                    Progress = "60",
                    ResourceID = new List<object>() { 2 }
                });

                //...
                return tasks;
            }
  • cshtml
  • <ej-gantt id="GanttContainer"
        allow-unscheduled-task = "true"
        //...>
    </ej-gantt>

    The following screenshot displays the output of the above code.

    NOTE

    If the allow-unscheduled-task property is set to false for unplanned task, the Gantt control will automatically calculate the scheduled dates with a default value of duration 1 and the project scheduled start date is considered as the start date for the task.

    Show/hide null text in Gantt columns

    You can show/hide the null text cell value for start date, end date and duration columns by using the showNullText column property. This can be customized in load event of Gantt. You can change the Null string by using the nullText property in the localization text file of the Gantt control. The following code snippets explain this behavior.

  • cshtml
  • <ej-gantt id="GanttContainer"
        allow-unscheduled-task = "true"
        load = "loadEvent"
        //...>
    </ej-gantt>
  • javascript
  • function loadEvent(args) {
       //…
       var columns = this.getColumns();
           columns[1].showNullText = true;
           columns[2].showNullText = true;
           column[3].showNullText = false;
    }
    ej.Gantt.Locale["en-Us"] = {
       nullText: "null"
    }

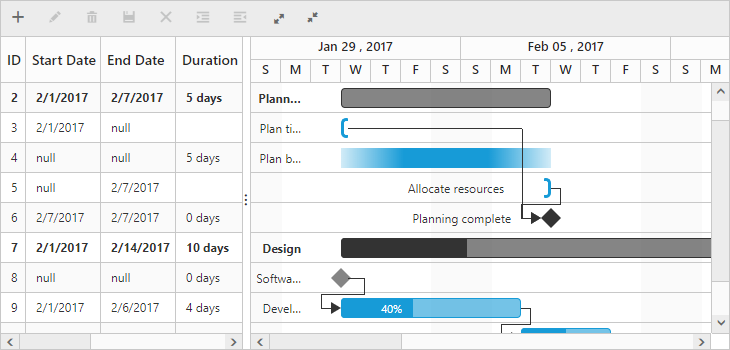

    The following screenshot displays the output of the above code.
