Legend in ASP.NET Core CircularGauge

18 Apr 20236 minutes to read

The legend contains the list of the ranges that appear in the circular gauge

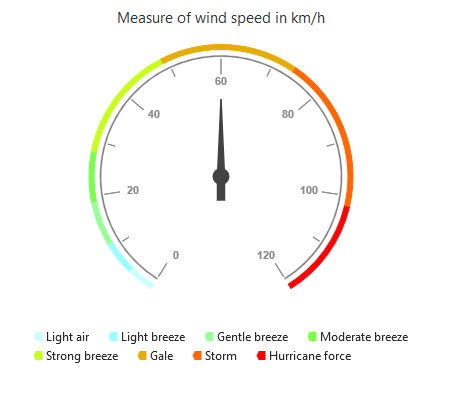

Legend Visibility

By default, the legend the legend will not be displayed in the circular gauge. You can enable or disable it by using the visible property of the legend.

HTML

<ej-circular-gauge id="circularGauge1">
    <e-legend visible="true"></e-legend>
</ej-circular-gauge>

Click here to view the online demo sample for legend .

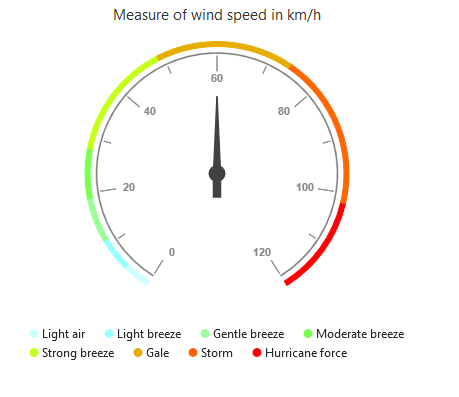

Legend Text

The text displayed in the legend can be customized by using the legendText property present in the ranges of the circular gauge. When the legendText is not specified in the ranges, then the legend item for that particular range will not displayed. By default the legendText value is null .

HTML

<ej-circular-gauge id="circularGauge1">
    <e-scales>
    <e-scale >
    <e-ranges>
    <e-range legend-text="Light air"></e-range>
    </e-ranges>
    </e-scale>
    </e-scales>
</ej-circular-gauge>

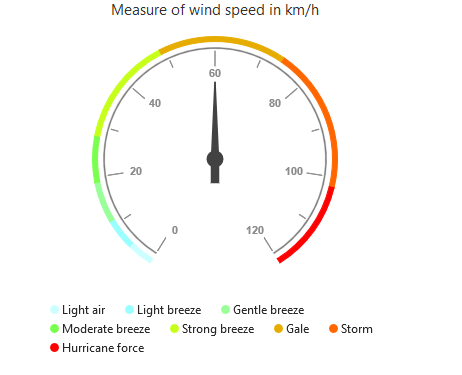

Legend Fill and Opacity

You can change the opacity and fill color of legend text using Opacity and Fill property of legend.

HTML

<ej-circular-gauge id="circularGauge1">
    <e-legend visible="true" fill="blue" opacity="0.5"></e-legend>
</ej-circular-gauge>

Position and Align the Legend

By using the position property, you can position the legend at left, right, top or bottom of the CircularGauge. The legend is positioned at the bottom of the circular gauge, by default.

HTML

<ej-circular-gauge id="circularGauge1">
    <e-legend visible="true" position="@CircularLegendPosition.Top"></e-legend>
</ej-circular-gauge>

Legend Alignment

You can align the legend to the center, far or near based on its position by using the alignment property.

HTML

<ej-circular-gauge id="circularGauge1">
     <e-legend visible="true" position="@CircularLegendAlignment.Far"></e-legend>
</ej-circular-gauge>

Customization

Legend shape

To change the legend item, shape, you have to specify the desired shape in the shape property of the legend. By default the legend shape is circle.It also supports rectangle,diamond,triangle,slider,line,pentagon,trapezoid and wedge shapes.

HTML

<ej-circular-gauge id="circularGauge1">
    <e-legend visible="true" shape="@CircularLegendShape.Slider"></e-legend>
</ej-circular-gauge>

Legend Item Size and Border

You can change the size of the legend items by using the width and height properties in the itemStyle. To change the legend item border, use border property of the legend itemStyle.

HTML

<ej-circular-gauge id="circularGauge1">
    <e-legend>
        <e-item-style width="13" height="13" >
            <e-border color="blue" width="2"></e-border>
        </e-item-style>
    </e-legend>
</ej-circular-gauge>

Legend size

You can change the default legend size by using the size property of the legend.

HTML

<ej-circular-gauge id="circularGauge1">
    <e-legend>
        <e-size width="350" height="100"></e-size>
    </e-legend>
</ej-circular-gauge>

Legend Item Padding

You can control the spacing between the legend items by using the item-padding option of the legend. The default value is 20.

HTML

<ej-circular-gauge id="circularGauge1">
    <e-legend item-padding="30">
    </e-legend>
</ej-circular-gauge>

Legend border

You can customize the legend border by using the border option in the legend.

HTML

<ej-circular-gauge id="circularGauge1">
    <e-legend>
        <e-border color="blue" width="2"></e-border>
    </e-legend>
</ej-circular-gauge>

Font of the legend text

The font of the legend item text can be customized by using the font property in legend.

HTML

<ej-circular-gauge id="circularGauge1">
    <e-legend>
        <e-font font-family="Arial" font-style="bold" size="18px"></e-border>
    </e-legend>
</ej-circular-gauge>

Events

Legend Item Render

legend-item-render event triggers before rendering the legend items. This event is triggered for each legend item in Circular gauge. You can use this event to customize legend item shape or add custom text to legend item.

HTML

<ej-circular-gauge id="circularGauge1" legend-item-render="onLegendItemRender($event)">
</ej-circular-gauge>

<script>
function onLegendItemRender(sender) {
//Get legend item details on legend item click.
var legendItem = sender.data;
}
</script>

Legend Item Click

You can get the legend item details such as RangeIndex, bounds, shape and series by subscribing the legend-item-click event on the circular gauge. When the legend item is clicked, it triggers the event and returns the legend information.

HTML

<ej-circular-gauge id="circularGauge1" legend-item-click="onLegendClicked($event)">
</ej-circular-gauge>

  <script>
     function onLegendClicked(sender) {
        //Get legend item details on legend item click.
        var legendItem = sender.data;
     }
 </script>
