TargetId

e-targetid property is used to define the target Id for Navigation Drawer. The drawer opens while you click on the specified target element.

In the HTML page set the e-targetid of Navigationdrawer.

  • html
  • <div ng-controller="NavigationDrawerCtrl">
            <div id="main" style="height:1000px;">
                    <div id="navpane" class="ang-navigationdrawer" ej-navigationdrawer e-targetid="drawerTarget" e-direction="left" e-enablelistview=true e-listviewsettings-width="300" e-position="fixed">
                    <ul>
                            <li>Settings</li>
                            <li>Read</li>
                            <li>Help</li>
                            <li>About</li>
                    </ul>
                    </div>
                    <button id="drawerTarget" class="ang-button btn" ej-button style="top:200px;left:600px;position:absolute">Open Drawer</button>
            </div>
            </div>

    The following screenshots illustrates the output.

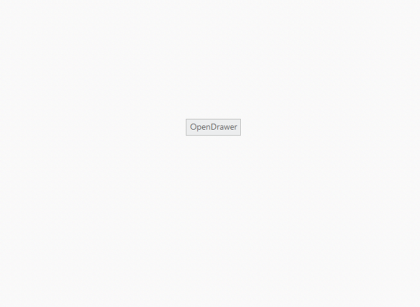

    Before target click

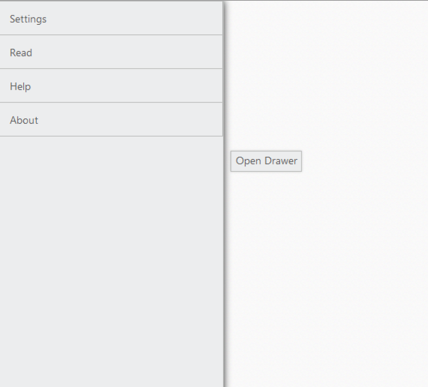

    After target click
