Chart Series in Windows Forms Chart

1 Dec 202224 minutes to read

Provide data for the Windows Forms chart through the ChartSeries. ChartSeries acts as a wrapper around data that is to be displayed, and associates styles with the data. The data that is to be displayed is contained in either the IChartSeriesModel or the IEditableChartSeriesModel implementation. The style used to display the points is stored in a contained implementation of IChartSeriesStylesModel.

Here is some sample code to create a new series and add it to the chart.

// 1) One way to create a series:

ChartSeries series = new ChartSeries("Sales Performance", ChartSeriesType.Bar);

series.Points.Add(0,200);

series.Points.Add(1,300);

// Remember to add the series to the chart.

chartControl1.Series.Add(series);

// 2) Another way to create a series

// This will automatically add the series to the chart

ChartSeries series = chartControl1.Model.NewSeries("Sales Performance", ChartSeriesType.Bar);

series.Points.Add(0,200);

series.Points.Add(1,300);
' 1) One way to create a series:

Dim series1 As ChartSeries = New ChartSeries("Sales Performance", ChartSeriesType.Bar)

series.Points.Add(0,200)

series.Points.Add(1,300)

' Remember to add the series to the chart.

Me.chartControl1.Series.Add(series)

' 2) Another way to create a series

' This will automatically add the series to the chart

ChartSeries series = Me.chartControl1.Model.NewSeries("Sales Performance", ChartSeriesType.Bar)

series.Points.Add(0,200)

series.Points.Add(1,300)

NOTE

Same ChartSeries object being added to more than one chart is not supported. It binds the series to the default primary axis always.

Chart Points

The ChartPoint class holds value information about a single point in a series (x and y values). The following table describes the kind of x and y values you can specify via a chart point.

Chart Points

Axis Number of Values Value Types
X 1 double or DateTime
Y 1 or more double or DateTime

Here is some sample code that shows adding data points to the Points collection. You could also optionally create a ChartPoint instance first and then add it to the Points collection.

// Option 1: 1 X double value; 2 double Y values in a point

series1.Points.Add(0, 2.5, 3.5);

// Option 2: 1 X double value; 1 DateTime Y value

series2.Points.Add(1, DateTime.Now);

// Option 3: 1 X DateTime value; 1 double Y value

series1.Points.Add(DateTime.Now, 5.3);
' Option 1: 1 X double value; 2 double Y values in a point

series1.Points.Add(0, 2.5, 3.5)

' Option 2: 1 X double value; 1 DateTime Y value

series2.Points.Add(1, DateTime.Now)

' Option 3: 1 X DateTime value; 1 double Y value

series1.Points.Add(DateTime.Now, 5.3)

ValueType

Always use the ChartAxis.ValueType property to specify what kind of values you have added in the series data points for the corresponding axis.

// To specify DateTime values in the X axis

this.chartControl1.PrimaryXAxis.ValueType = ChartValueType.DateTime;

// To specify Double values

this.chartControl1.PrimaryXAxis.ValueType = ChartValueType.Double;
' To specify DateTime values in the X axis

Me.chartControl1.PrimaryXAxis.ValueType = ChartValueType.DateTime

' To specify Double values

Me.chartControl1.PrimaryXAxis.ValueType = ChartValueType.Double

NOTE

To display the text right next to the data points, the DisplayText property of the data point’s style should be set.

The Chart Series features are elaborated in more detail in the following sub-topics.

Sorting

Chart has built-in support to sort the data points either in ascending or descending order. By default, chart renders the sorted data points. Sorting feature can be enabled or disabled using the property SortPoints of. ChartSeries.

Here is a simple code to sort the data points in ascending order.

// Create chart series and add data points into it.
ChartSeries series1 = new ChartSeries("Market");

series1.Points.Add(1, 20);
series1.Points.Add(3, 28);
series1.Points.Add(5, 38);
series1.Points.Add(2, 18);
series1.Points.Add(6, 58);
series1.Points.Add(9, 28);
series1.Points.Add(4, 48);

//Enable sorting. Sorting is enabled by default
series1.SortPoints = true;

series1.Type = ChartSeriesType.Line;

// Add the series to the chart series collection.
this.chartControl1.Series.Add(series1);
' Create chart series and add data points into it.
Dim series1 As New ChartSeries("Market")

series1.Points.Add(1, 20)
series1.Points.Add(3, 28)
series1.Points.Add(5, 38)
series1.Points.Add(2, 18)
series1.Points.Add(6, 58)
series1.Points.Add(9, 28)
series1.Points.Add(4, 48)

'Enable sorting. Sorting is enabled by default
series1.SortPoints = True

series1.Type = ChartSeriesType.Line

' Add the series to the chart series collection.
Me.chartControl1.Series.Add(series1)

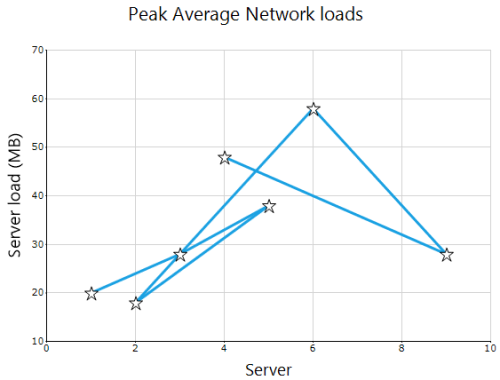

Following screenshot displays chart without sorting
Data points in random order

Following screenshot displays chart with sorted data points

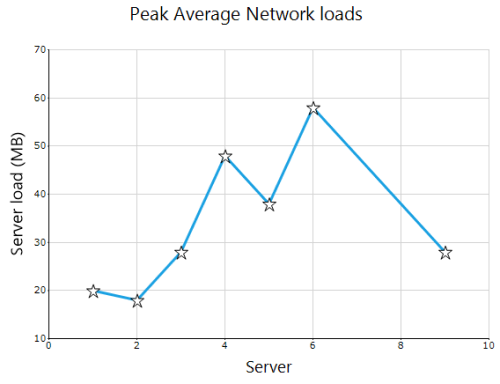

Data points after sorting

Sorting In Categorical Axis

In categorical axis, data points can be sorted based on their x-value (value along x-axis) or y-value (value along y-axis) in either ascending or descending order.

Sorting order (ascending or descending) can be specified using the SortOrder property in ChartSeries. The SortBy property of ChartSeries can be used to specify whether sorting should work on x or y values of data point.

Here is a simple code to sort the data points in categorical axis

//Set axis type as Category
this.chartControl1.PrimaryXAxis.ValueType = ChartValueType.Category;

series1.Points.Add("A1", 20);
series1.Points.Add("D1", 28);
series1.Points.Add("C1", 38);
series1.Points.Add("B1", 18);
series1.Points.Add("G1", 58);
series1.Points.Add("E1", 28);
series1.Points.Add("F1", 48);
//Enable sorting. Sorting is enabled by default
series1.SortPoints = true;

//Specify the order of sorting
series1.SortOrder = ChartSeriesSortingOrder.Ascending;

//Specify the value to consider
series1.SortBy = ChartSeriesSortingType.X;

series1.Type = ChartSeriesType.Line;

// Add the series to the chart series collection.
this.chartControl1.Series.Add(series1);
'Set axis type as Category
Me.chartControl1.PrimaryXAxis.ValueType = ChartValueType.Category

series1.Points.Add("A1", 20)
series1.Points.Add("D1", 28)
series1.Points.Add("C1", 38)
series1.Points.Add("B1", 18)
series1.Points.Add("G1", 58)
series1.Points.Add("E1", 28)
series1.Points.Add("F1", 48)
'Enable sorting. Sorting is enabled by default
series1.SortPoints = True

'Specify the order of sorting
series1.SortOrder = ChartSeriesSortingOrder.Ascending

'Specify the value to consider
series1.SortBy = ChartSeriesSortingType.X

series1.Type = ChartSeriesType.Line

' Add the series to the chart series collection.
Me.chartControl1.Series.Add(series1)

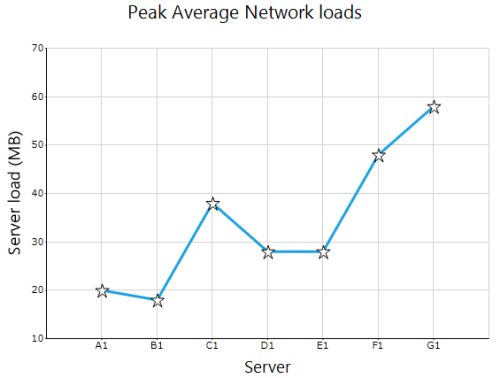

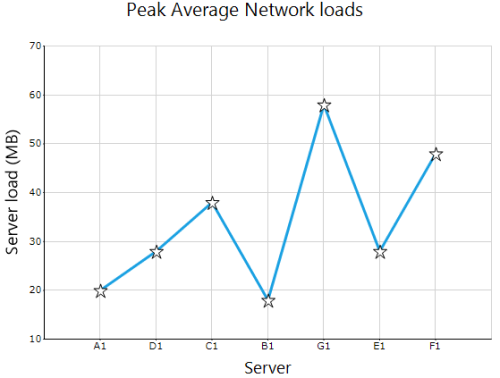

Data points in chart before sorting
Chart Series

Data points sorted by x-values in ascending order
Chart Series

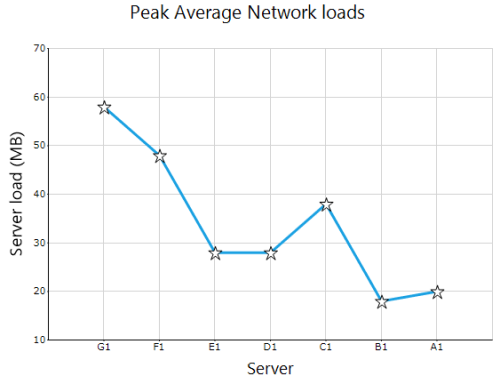

Data points sorted by X-values in descending order
Chart Series

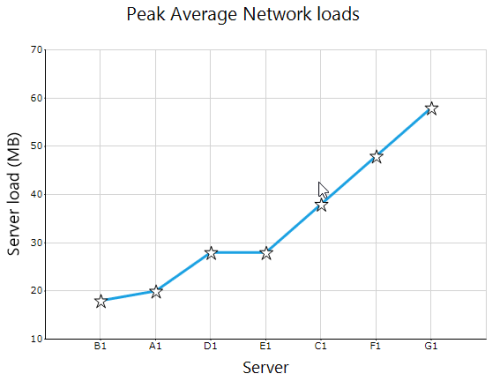

Data points sorted by y-values in ascending order
Chart Series

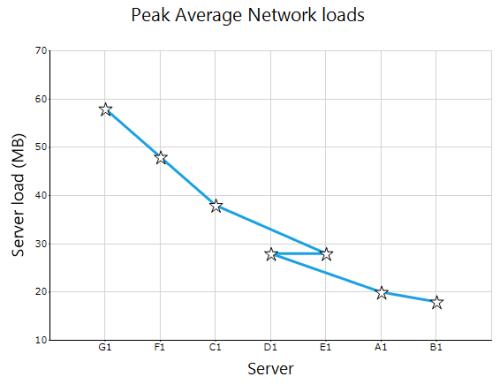

Data points sorted by Y-values in descending order
Chart Series

Series Customization

Essential Chart offers numerous appearance and behavior customization capabilities at the series level and on individual points.

Some of these options are applicable only for the whole series while the rest could be applied on the specific data points. Similarly some of these options are specific to certain chart types.

Note that styles set at the series level automatically propagate to the points in the series.

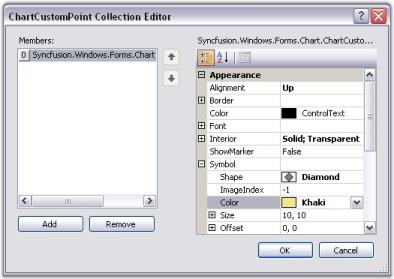

Interestingly the Chart control lets the user to edit the styles of a series by double clicking on it during run-time. This feature can be turned on by setting the AllowUserEditStyles property to true.

The table below lists the customization options available in ChartSeries and their restrictions.

Customization Option Applies to Series or DataPoints* Applies to Chart Type

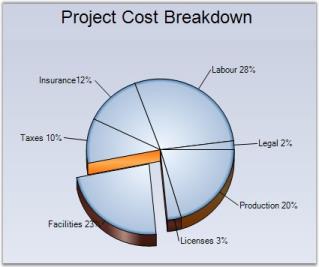

AngleOffset

Series Pie Chart

Border

Series and points Pyramid, Funnel, Area, Bar, Bubble, Column Chart, Candle Chart, Renko chart, Three Line Break Chart, Box and Whisker Chart, Gantt Chart, Histogram Chart, Tornado Chart, Polar and Radar Chart and Pie Chart.

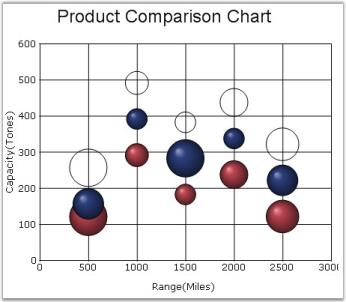

BubbleType

Series Bubble chart.

ColumnDrawMode

Column Chart, ColumnRange Chart,Bar Chart, BoxAndWhisker Chart, Gantt Chart.

ColumnWidthMode

Series Column charts

ColumnFixedWidth

Series Column charts

ColumnType

Series Column

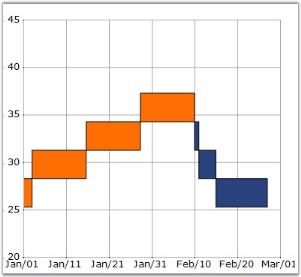

ColorsMode

Series Renko chart.

DarkLightPower

Series Renko chart.

DisplayShadow

Series and points Area Chart, Bar Chart, Bubble Chart, Column Chart, Stacking Column Chart, Stacking Column100 Chart, Line Chart, Spline Chart, Rotated Spline chart, Stepline Chart, Candle Chart, Kagi Chart, Point and Figure Chart, Renko Chart, Three line Break Charts, Gantt Chart, Histogram chart, Tornado Chart, Combination Chart, Box and Whisker Chart.

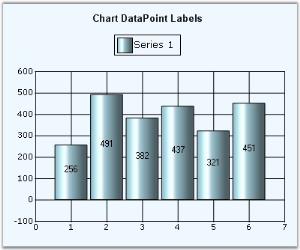

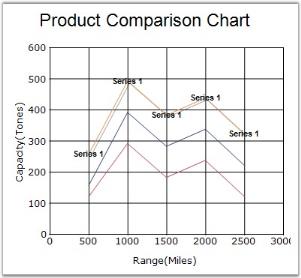

DisplayText

Series and points All Chart types.

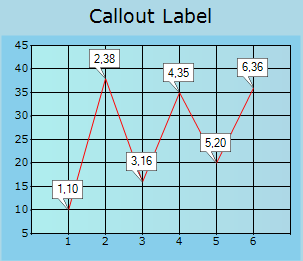

Callout

Series and points Area Chart, Bar Chart, Scatter Chart, Bubble Chart, Column Chart, Stacking Column Chart, Stacking Column100 Chart, Line Chart, Spline Chart, Rotated Spline chart, Stepline Chart, Candle Chart, HiLo Chart, HiLoOpenClose Chart, Combination Chart, Pie Chart.

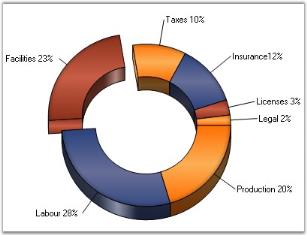

DoughnutCoeficient

Series Pie Chart.

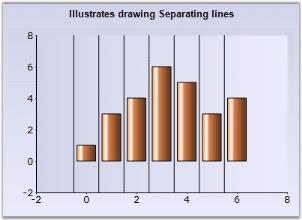

DrawColumnSeparatingLines

Series Column Chart.

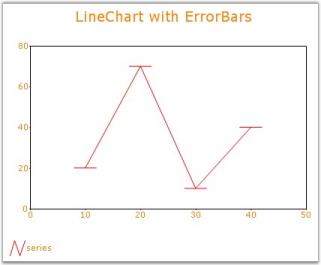

DrawErrorBars

Series Column Chart, Line Chart and HiLo Chart.

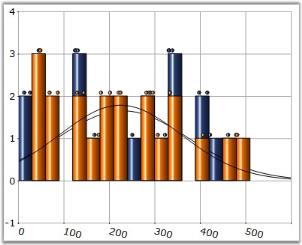

ShowNormalDistribution

Series Histogram chart.

DrawSeriesNameInDepth

Series All Chart types.

ElementBorders

Series and points Area Charts, Bar Charts, Bubble Chart, Column Charts, Line Charts, Candle Chart, Renko chart, Three Line Break Chart, Box and Whisker Chart, Gantt Chart, Tornado Chart, Polar and Radar Chart.

EnablePhongStyle

Series Bubble Chart.

SymbolShape

Series Column Chart, Line Chart and HiLo Chart.

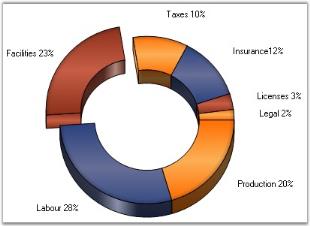

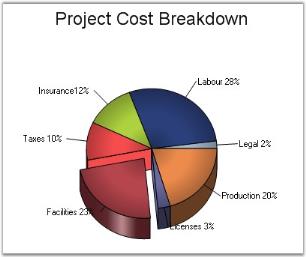

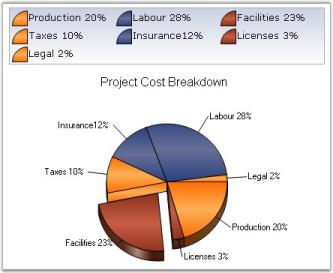

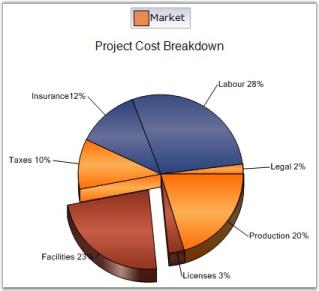

ExplodedAll

Series Pie Chart, Doughnut Chart.

ExplodedIndex

Series Pie Chart.

ExplosionOffset

Series Pie Chart.

FancyToolTip

Series All Chart Types.

FigureBase

Series Funnel and Pyramid chart.

FillMode

Series Pie Chart

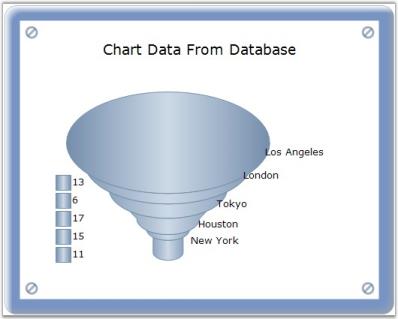

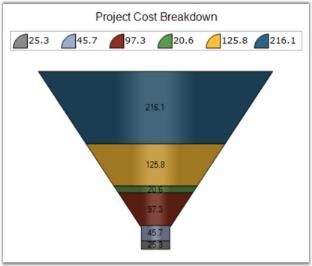

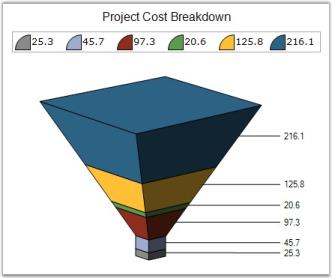

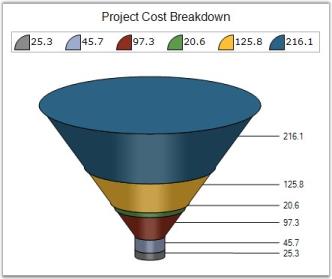

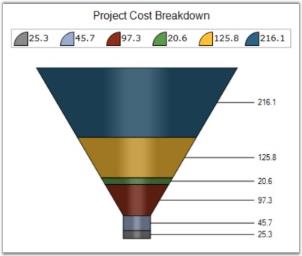

FunnelMode

Series Funnel and Pyramid chart.

Font

Series and points All Chart types.

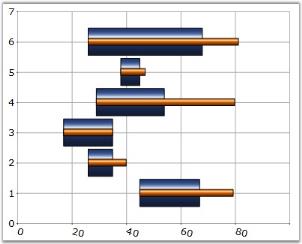

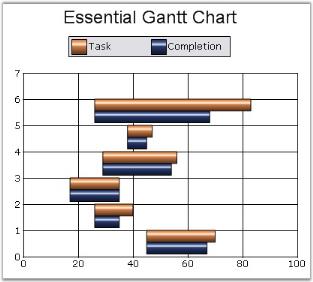

GanttDrawMode

Series Gantt Chart.

GapRatio

Series Funnel and Pyramid chart.

Gradient

Series Pie Chart.

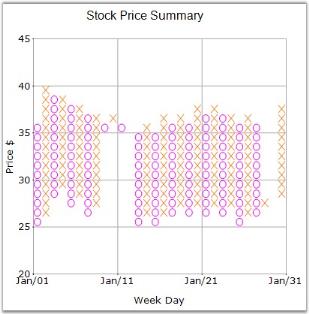

HeightBox

Series Point And Figure Chart.

HeightByAreaDepth

Series Pie Chart.

HeightCoeficient

Series Pie Chart.

HighlightInterior

Series Bar Charts, Pie, Funnel, Pyramid,Bubble, Column, Area, Stacking Area, Stacking Area100, Line Charts, Box and Whisker, Gantt Chart and Tornado Chart.

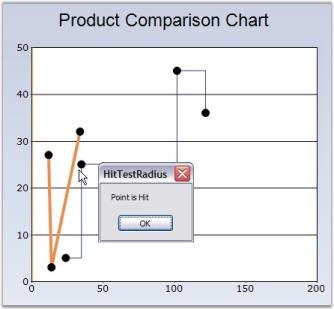

HitTestRadius

Series Line Chart and Step Line Chart.

ImageIndex

Series and points Area Charts, Bar Charts, Bubble Chart, Column Charts, Line Charts, Candle Chart, Renko chart, Three Line Break Chart, Box and Whisker Chart, Gantt Chart, Tornado Chart, Polar and Radar Chart.

Images

Series and points Area Charts, Bar Charts, Bubble Chart, Column Charts, Line Charts, Candle Chart, Renko chart, Three Line Break Chart, Box and Whisker Chart, Gantt Chart, Tornado Chart, Polar and Radar Chart.

InSideRadius

Series Pie Chart.

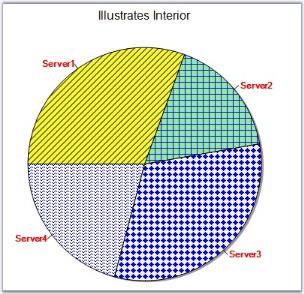

Interior

Series and points All Chart Types.

LabelPlacement

Series Funnel and Pyramid Charts.

LabelStyle

Series Funnel and Pyramid, Pie

LegendItem

Series All Chart Types.

LightAngle

Series Scatter Chart, Column Charts , Bar Charts, Box and Whisker Chart, Gantt Chart, Histogram Chart, Tornado Chart, Polar and Radar Chart.

LightColor

Series Scatter Chart, Column Charts , Bar Charts, Box and Whisker Chart, Gantt Chart, Histogram Chart, Tornado Chart, Polar and Radar Chart.

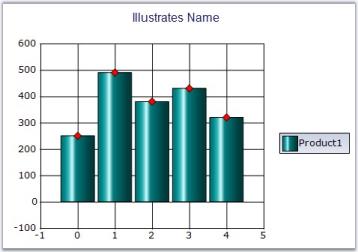

Name

Series All chart types.

NumberOfIntervals

Series Histogram Chart.

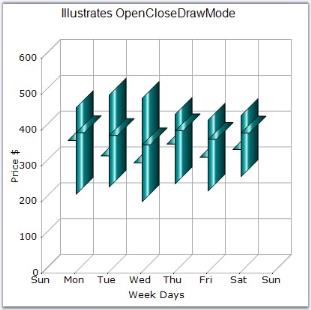

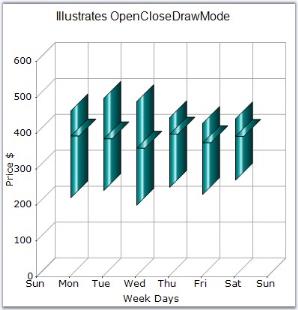

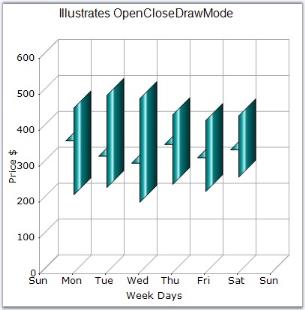

DrawMode

Series HiLo OpenClose chart.

OptimizePiePointPositions

Series Pie chart

PhongAlpha

Series Column Chart.

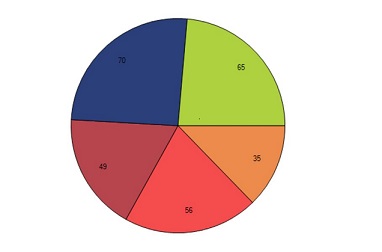

PieType

Series Pie chart

PieWithSameRadius

Series Pie chart and Doughnut chart.

PointsToolTipFormat

Series All Chart Types.

PointWidth

Series and points Gantt Chart.

PriceDownColor

Series Financial types

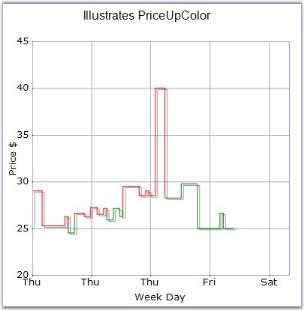

PriceUpColor

Series Financial types

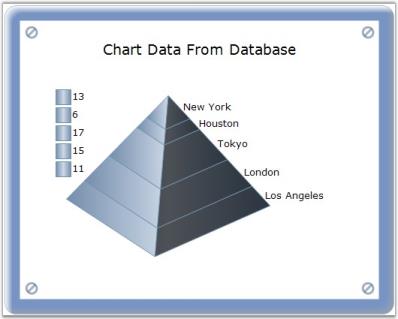

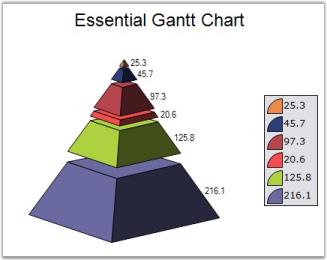

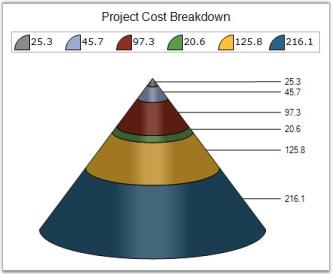

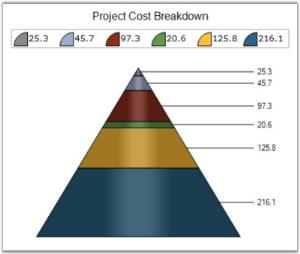

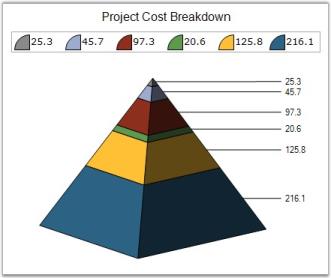

PyramidMode

Series Pyramid

Radar Type

Series Polar and Radar Chart.

RadarStyle

Series Polar and Radar Chart.

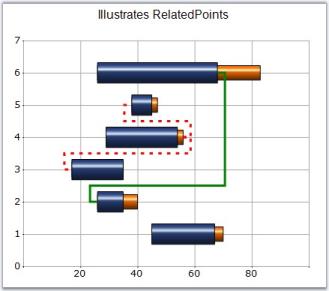

RelatedPoints

Series and points Gantt Chart.

ReversalAmount

Series Kagi, PointAndFigure, Renko

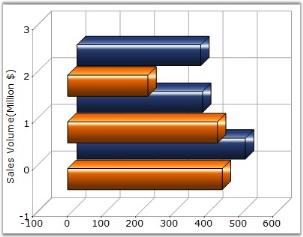

Rotate

Series Column Charts, Bar Charts, Area charts, Line Chart, Spline Chart, Stepline Chart, Candle Chart, HiLo Chart, HiLo Open Chart, Kagi Chart, Box and Whisker chart, Histogram chart, Polar and Radar Chart.

ScatterConnectType

Series Scatter Chart.

ScatterSplineTension

Series Scatter Chart.

SeriesToolTipFormat

Series Area Charts.

ShadingMode

Series Column Chart, BarCharts, Candle Chart, HiLo Chart, HiLoOpenClose Chart, Tornado chart, BoxAndWhisker chart, Gantt Chart, Histogram Chart, Polar and Radar Chart.

ShadowInterior

Series and points Column Charts, Bubble Chart, Line Charts, BarCharts, Candle Chart, Kagi Chart, Point and Figure Chart, Renko Chart, Three Line Break Chart, Box and Whisker Chart, Gantt Chart, Histogram Chart, Tornado Chart, Pie Chart, Polar and Radar Chart.

ShadowOffset

Series and points Column Charts, Bubble Chart, Line Charts, Bar Charts, Candle Chart, Kagi Chart, Point and Figure Chart, Renko Chart, Three Line Break Chart, Box and Whisker Chart, Gantt Chart, Histogram Chart, Tornado Chart, Pie Chart, Polar and Radar Chart.

ShowDataBindLabels

Series Pie Chart, Doughnut Chart, Funnel and Pyramid charts.

ShowHistogramDataPoints

Series Histogram Chart

ShowTicks

Series Pie Chart.

SmartLabels

Series All Chart Types.

Spacing

Series and Points. Column Charts, BarCharts, Box and Whisker Chart, Gantt Chart, Tornado Chart.

Spacing Between Series

Series Area Charts, BarCharts, Line Charts, Bubble Chart, Financial Charts, Gantt Chart, Histogram chart, Tornado Chart, Combination Chart, Box and Whisker Chart.

SpacingBetweenPoints

Series Points Column Chart, Bar Chart, HiLo Chart, HiLo Open Close Chart, Candle Chart, Tornado Chart, Boxes and Whisker Chart.

StepItem.Inverted

Series StepAreaChart, StepLine Chart.

Summary

Series All Chart Types.

Symbol

Series and points Column Chart, Bar Chart, Bubble Chart, Financial Chart, Line Chart, BoxAndWhisker Chart, Gantt chart, Tornado chart, Radar Chart

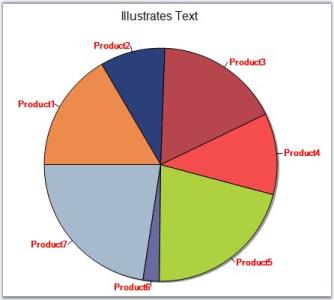

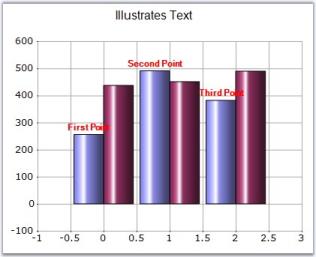

Text (Series)

Series All Chart Types.

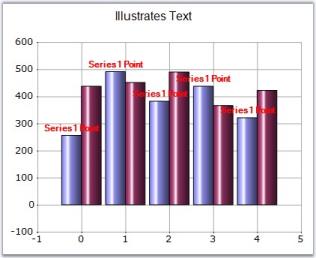

Text (Style)

Series and Points All Chart Types.

TextColor

Series and points All Chart Types.

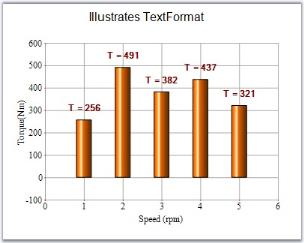

TextFormat

Series and points All Chart Types.

TextOffset

Series and points All Chart Types.

TextOrientation

Series and points All Chart Types.

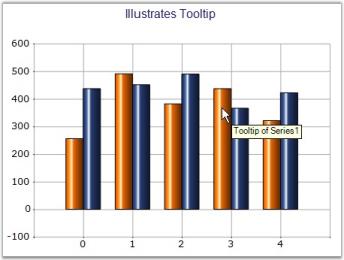

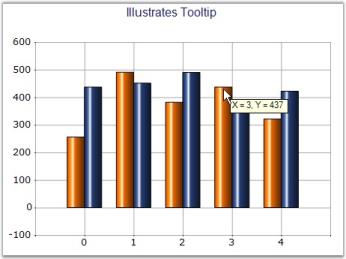

ToolTip

Series and points Scatter Chart.

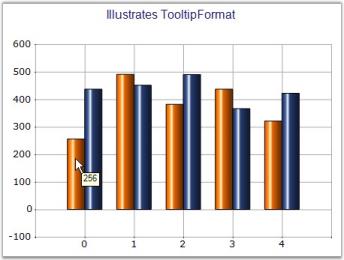

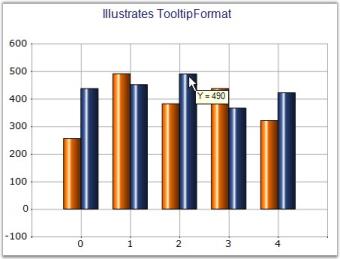

ToolTipFormat

Series and points Scatter Chart.

Visible

Series All Chart Types.

VisibleAllPies

Series Pie Chart.

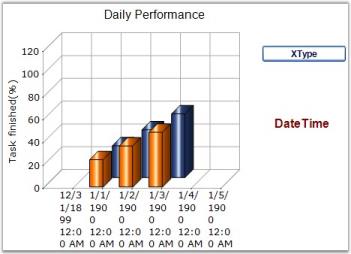

XType

Series All Chart Types.

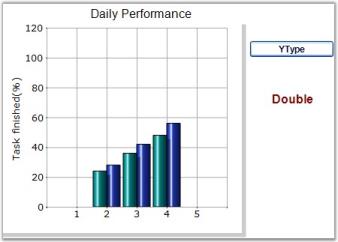

YType

Series All Chart Types.

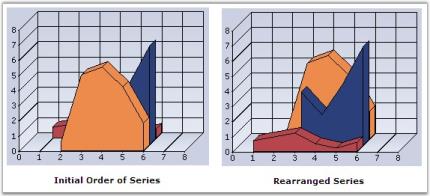

ZOrder

Series Gantt chart, StackingBar chart, StackingBar100 chart, StackingColumn chart, StackedColumn100 chart, StackingArea chart, StackingArea100 chart.
  • Indicates whether the property affects ALL the points in the series or if the property can be set on individual points as well.

AngleOffset

The offset angle that is to be used when rendering Pie charts.

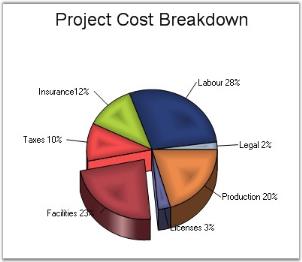

Details

Possible Values - Accepts real values like 45f, 90f etc.

Default Value – 0.

2D / 3D Limitations – No.

Applies to Chart Element - All Series.

Applies to Chart Types – PieChart.

Here is some sample code.

// Create chart series and add data points into it.

ChartSeries series1 = new ChartSeries("Market");

series1.Points.Add(0, 20);

series1.Points.Add(1, 28);

series1.Type = ChartSeriesType.Pie;

// Add the series to the chart series collection.

this.chartControl1.Series.Add(series1);

this.chartControl1.Series3D = true;

this.chartControl1.Series[0].ConfigItems.PieItem.AngleOffset = 45f;
' Create chart series and add data points into it.

Private series1 As New ChartSeries("Market")

series1.Points.Add(0, 20)

series1.Points.Add(1, 28)

series1.Type = ChartSeriesType.Pie

 ' Add the series to the chart series collection.

Me.chartControl1.Series.Add(series1)

Me.chartControl1.Series3D = True

Me.chartControl1.Series(0).ConfigItems.PieItem.AngleOffset = 45f

Chart Series

Chart Series

See Also

PieChart

Border

The user can also set the Border color and Border style for the chart series.

Border

Features Details
Possible Values Any Color, Width, Style for the Borders
Default Value Color - BlackWidth value - 1DashStyle - Solid
2D / 3D Limitations No
Applies to Chart Element All series and points
Applies to Chart Types Pyramid, Funnel, Area, Bar, Bubble, Column Chart, Candle Chart, Renko chart, Three Line Break Chart, Box and Whisker Chart, Gantt Chart, Histogram Chart, Tornado Chart, Polar and Radar Chart and Pie Chart

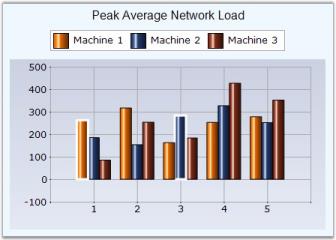

The line type can be configured using the ChartSeries.Style.Border property as in the following example.

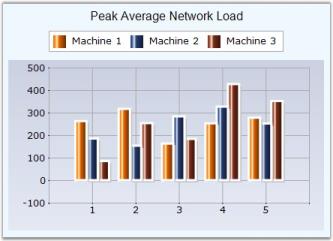

// Set the border style required for the column chart.

series.Style.Border.Width = 3;

series.Style.Border.Color = Color.White;

// Set the Series style

series.Style.DisplayShadow = true;

series.Style.ShadowInterior = new Syncfusion.Drawing.BrushInfo(Color.White);

series.Style.ShadowOffset = new Size(3, 3);
' Set the border style required for the column chart.

series.Style.Border.Width = 3

series.Style.Border.Color = Color.White

' Set the Series style

series.Style.DisplayShadow = True

series.Style.ShadowInterior = New Syncfusion.Drawing.BrushInfo(Color.White)

series.Style.ShadowOffset = New Size(3, 3)

Chart Series

To apply this on specific data points:

//Sets border for the 1st point in 1st series

series1.Styles[0].Border.Width = 3;

series1.Styles[0].Border.Color = Color.White;

//Sets border for the 3rd point in 2nd series

series2.Styles[2].Border.Width = 3;

series2.Styles[2].Border.Color = Color.White;
'Sets border for the 1st point in 1st series

series1.Styles(0).Border.Width = 3

series1.Styles(0).Border.Color = Color.White

'Sets border for the 3rd point in 2nd series

series2.Styles(2).Border.Width = 3

series2.Styles(2).Border.Color = Color.White

Chart Series

See Also

Pyramid Chart, Funnel Chart, AreaChart, BarCharts, Bubble Charts, Column Charts, Candle Charts, Renko Chart, ThreeLineBreak Chart, Box and Whisker Chart, Gantt Chart, Histogram chart, Tornado Chart, Polar And Radar Chart, PieChart

BubbleType

BubbleType - Specifies whether to render the data point symbols as circle, square or as image.

Features

Features Details
Possible Values Circle - Symbol is rendered as a circleSquare - Symbol is rendered as a squareImage - Symbol is rendered as an image
Default Value Circle
2D / 3D Limitations No
Applies to Chart Element All Series
Applies to Chart Types Bubble

Here is some sample code to specify an Image BubbleType.

Series wide setting

this.chartControl1.Series[0].ConfigItems.BubbleItem.BubbleType = ChartBubbleType.Image;

this.chartControl1.Series[0].Style.Images = new ChartImageCollection(this.imageList1.Images );

this.chartControl1.Series[0].Style.ImageIndex = 0;
Me.chartControl1.Series[0].ConfigItems.BubbleItem.BubbleType = ChartBubbleType.Image

Me.chartControl1.Series[0].Style.Images = New ChartImageCollection(Me.imageList1.Images)

Me.chartControl1.Series[0].Style.ImageIndex = 0

Specific Data Point Setting

Specify image for specific data points.

this.chartControl1.Series[0].Styles[0].Images = new ChartImageCollection(this.imageList1.Images );

this.chartControl1.Series[0].Styles[0].ImageIndex = 0;

this.chartControl1.Series[0].Styles[1].Images = new ChartImageCollection(this.imageList1.Images );

this.chartControl1.Series[0].Styles[1].ImageIndex = 1;
Me.chartControl1.Series[0].Styles(0).Images = New ChartImageCollection(Me.imageList1.Images)

Me.chartControl1.Series[0].Styles[0).ImageIndex = 0

Me.chartControl1.Series[0].Styles(1).Images = New ChartImageCollection(Me.imageList1.Images)

Me.chartControl1.Series[0].Styles(1).ImageIndex = 1

Chart Series

See Also

Bubble Charts

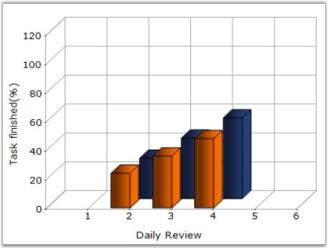

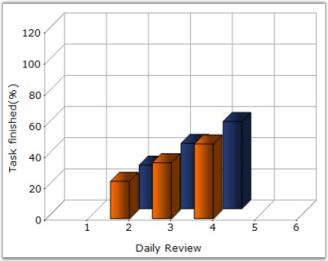

ColumnDrawMode

It indicates the drawing mode of columns in charts when there are multiple series.

Features

Features Details
Possible Values InDepthMode - Columns from different series are drawn at different depths.PlaneMode - Columns from all series are drawn side-by-side.ClusteredMode - Columns from all series are drawn in depth with the same size.
Default Value InDepthMode
2D / 3D Limitations 3D only
Applies to Chart Element All Series
Applies to Chart Types Column Chart, ColumnRange Chart,Bar Chart, BoxAndWhisker Chart, Gantt Chart

Here is the sample code snippet using ColumnDrawMode in Column Chart.

this.chartControl1.ColumnDrawMode = ChartColumnDrawMode.PlaneMode;
Me.chartControl1.ColumnDrawMode = ChartColumnDrawMode.PlaneMode

[VB.NET]

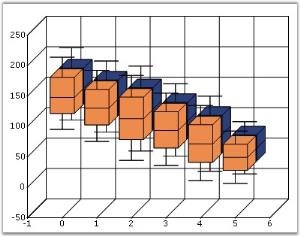

Chart Series

Chart Series

Chart Series

See Also

Column Charts, Range Column Chart, BarCharts, Box and Whisker Chart, Gantt Chart

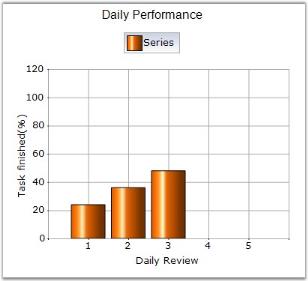

ColumnWidthMode

It specifies the width drawing mode for the columns in a column chart.

Features

Features Details
Possible Values
  • DefaultWidthMode - The width of the columns will always be calculated to fill the space between columns.
  • FixedWidthMode - The width should be given in Series.Points[i].YValues[1], in pixels. If the width of the columns are not given in point YValues[1], then they are calculated to fill the space between columns.
  • RelativeWidthMode - Similar to the FixedWidthMode, the width is specified in YValues[1], but in units of X-axis range.

Default Value
DefaultWidthMode
2D / 3D Limitations No
Applies to Chart Element All Series
Applies to Chart Types Column charts, BoxAndWhiskerChart, Candle Chart

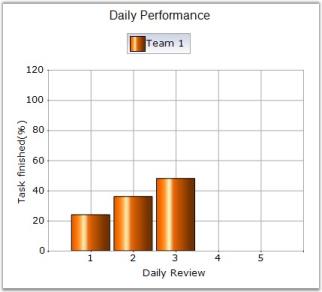

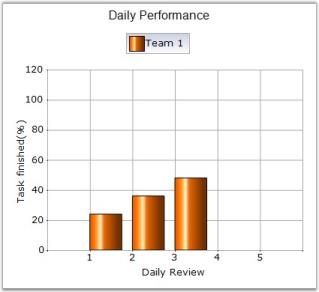

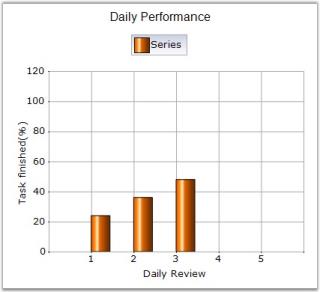

Here is some sample code.

ChartSeries series1 = new ChartSeries("Series");

series.Points.Add(1, 24);

series.Points.Add(2, 36);

series.Points.Add(3, 48);

chartControl1.Series.Add(series1);

chartControl1.ColumnWidthMode = ChartColumnWidthMode.DefaultWidthMode;
Dim series1 As ChartSeries = New ChartSeries("Series")

series.Points.Add(1, 24)

series.Points.Add(2, 36)

series.Points.Add(3, 48)

chartControl1.Series.Add(series1)

chartControl1.ColumnWidthMode = ChartColumnWidthMode.DefaultWidthMode

Chart Series

double Interval = this.chartControl1.PrimaryXAxis.Range.Interval;

ChartSeries series = new ChartSeries("Team 1");

// 2nd Y value specifies the column width

series.Points.Add(1, new double[] { 24, Interval * 0.75 });

series.Points.Add(2, new double[] { 36, Interval * 0.75 });

series.Points.Add(3, new double[] { 48, Interval * 0.75 });

this.chartControl1.Series.Add(series);

this.chartControl1.ColumnWidthMode = ChartColumnWidthMode.RelativeWidthMode;
Dim Interval As Double = Me.chartControl1.PrimaryXAxis.Range.Interval

Dim series As New ChartSeries("Team 1")

' 2nd Y value specifies the column width

series.Points.Add(1, New Double() { 24, Interval * 0.75 })

series.Points.Add(2, New Double() { 36, Interval * 0.75 })

series.Points.Add(3, New Double() { 48, Interval * 0.75 })

Me.chartControl1.Series.Add(series)

Me.chartControl1.ColumnWidthMode = ChartColumnWidthMode.RelativeWidthMode

Chart Series

ChartSeries series1 = new ChartSeries("Series");

// 2nd Y value specifies the column width

series1.Points.Add(1, new double[] { 24, 25});

series1.Points.Add(2, new double[] { 36, 25});

series1.Points.Add(3, new double[] { 48, 25});

chartControl1.Series.Add(series1);

chartControl1.ColumnWidthMode = ChartColumnWidthMode.FixedWidthMode;
Dim series1 As ChartSeries = New ChartSeries("Series")

' 2nd Y value specifies the column width

series1.Points.Add(1, New Double() { 24, 25})

series1.Points.Add(2, New Double() { 36, 25})

series1.Points.Add(3, New Double() { 48, 25})

chartControl1.Series.Add(series1)

chartControl1.ColumnWidthMode = ChartColumnWidthMode.FixedWidthMode

NOTE

The width of the column can also be specified by ColumnFixedWidth property. If both second Y value and ColumnFixedWidth are specified, second Y value takes higher priority.

Chart Series

See Also

Column Charts , Box and Whisker Chart, Candle Charts, ColumnFixedWidth

ColumnFixedWidth

It specifies the width of each column when ColumnWidthMode is set to FixedWidthMode.

Features

Features Details
Possible Values An integer value
Default Value 20
2D / 3D Limitations None
Applies to Chart Element All Series
Applies to Chart Types Column Charts, BoxAndWhiskerChart, Candle Chart

Here is some sample code.

ChartSeries series1 = new ChartSeries("Series");

series1.Points.Add(1, new double[] { 24});

series1.Points.Add(2, new double[] { 36});

series1.Points.Add(3, new double[] { 48});

chartControl1.Series.Add(series1);

chartControl1.ColumnWidthMode = ChartColumnWidthMode.FixedWidthMode;

chartControl1.ColumnFixedWidth = 45;
Dim series1 As ChartSeries = New ChartSeries("Series")

series1.Points.Add(1, New Double() { 24})

series1.Points.Add(2, New Double() { 36})

series1.Points.Add(3, New Double() { 48})

chartControl1.Series.Add(series1)

chartControl1.ColumnWidthMode = ChartColumnWidthMode.FixedWidthMode

chartControl1.ColumnFixedWidth = 45

NOTE

The ColumnFixedWidth property can be overridden by specifying a second y value in the data point. See_ ColumnWidthMode _for a sample.

Chart Series

See Also

Column Charts, BoxAndWhiskerChart, ColumnWidthMode, Candle Charts

ColumnType

It specifies whether the columns should be rendered as bars or cylinders.

Features

Features Details
Possible Values Box - Renders the columns as boxes.
Cylinder - Renders the columns as cylinders.
Default Value Box
2D / 3D Limitations 3D only
Applies to Chart Element All series
Applies to Chart Types Column Chart, Column Range Chart, Stacking Column Chart, Candle Chart, Bar Chart, Stacking Bar Chart

Here is some sample.

this.chartControl1.Series[0].ConfigItems.ColumnItem.ColumnType = ChartColumnType.Cylinder;

this.chartControl1.Series[1].ConfigItems.ColumnItem.ColumnType = ChartColumnType.Box;
Me.chartControl1.Series(0).ConfigItems.ColumnItem.ColumnType = ChartColumnType.Cylinder

Me.chartControl1.Series(1).ConfigItems.ColumnItem.ColumnType = ChartColumnType.Box

[VB.NET]

Chart Series

See Also

Column Charts, Column Range Chart, Stacking Column Chart, Candle Charts, BarCharts, Stacking Bar Chart

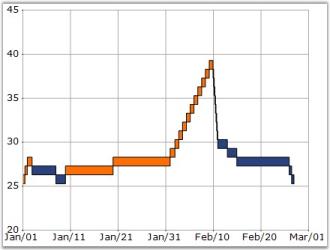

ColorsMode

Gets / sets ColorsMode of the boxes in the financial chart types.

Features

Features Details
Possible Values
  • DarkLight -Draws series data points as a dark light colors mode.
  • Fixed - Draws series data points as a Fixed color mode.
  • Mixed - Draws series data points as a Mixed colors mode.

Default Value
Fixed
2D / 3D Limitations None
Applies to Chart Element All series
Applies to Chart Types Renko Chart (Financial Chart)

Here is some sample code.

// Setting ColorsMode for series

this.chartControl1.Series[0].ConfigItems.FinancialItem.ColorsMode = ChartFinancialColorMode.DarkLight;
' Setting ColorsMode for series

Me.chartControl1.Series(0).ConfigItems.FinancialItem.ColorsMode = ChartFinancialColorMode.DarkLight

Chart Series

Chart Series

See Also

Renko Chart

DarkLightPower

Gets or sets the intensity of the dark and light colors used in DarkLight color mode.

Features

Features Details
Possible Values Ranges from 0 to 255 bytes
Default Value 100
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Renko Chart (Financial Charts)

Here is some sample code.

// Setting ColorsMode as DarkLight

this.chartControl1.Series[0].ConfigItems.FinancialItem.ColorsMode = ChartFinancialColorMode.DarkLight;

// Setting the power value of the dark light

this.chartControl1.Series[0].ConfigItems.FinancialItem.DarkLightPower = 200;
' Setting ColorsMode as DarkLight

Me.chartControl1.Series(0).ConfigItems.FinancialItem.ColorsMode = ChartFinancialColorMode.DarkLight

' Setting the power value of the dark light

Me.chartControl1.Series(0).ConfigItems.FinancialItem.DarkLightPower = 200

Chart Series

See Also

Renko Chart

DisplayShadow

It specifies if shadow should be displayed for the series.

Features

Features Details
Possible Values True, False
Default Value False
2D / 3D Limitations Only 2D
Applies to Chart Element All series and points
Applies to Chart Types Area Chart, Bar Chart, Bubble Chart, Column Chart, Stacking Column Chart, Stacking Column100 Chart, Line Chart, Spline Chart, Rotated Spline chart, Stepline Chart, Candle Chart, Kagi Chart, Point and Figure Chart, Renko Chart, Three line Break Charts, Gantt Chart, Histogram chart, Tornado Chart, Combination Chart, Box and Whisker Chart, Pie Chart, Polar And Radar Chart, Step Area Chart

Here is some sample code.

Series Wide Setting

this.chartControl1.Series[0].Style.DisplayShadow = true;

//To display shadow for specific data points use Styles[]

series1.Styles[0].DisplayShadow = true;
'To display shadow for specific data points use Styles[]

series1.Styles(0).DisplayShadow = True

Me.chartControl1.Series(0).Style.DisplayShadow = True

<p><img src="Chart-Series_images/Chart-Series_img21.jpeg" alt="Chart Series" /></p>

Specific Data Point Setting

this.chartControl1.Series[0].Styles[0].DisplayShadow = true;

this.chartControl1.Series[0].Styles[1].DisplayShadow = true;
Me.chartControl1.Series(0).Styles(0).DisplayShadow = True

Me.chartControl1.Series(0).Styles(1).DisplayShadow = True

See Also

Line Charts, AreaChart, Bubble Charts, Column Charts , Stacking Column Chart, StackedColumn100Chart, BarCharts, PieChart, Candle Charts, Kagi Chart, PointAndFigure Chart, Renko Chart, ThreeLineBreak Chart, Gantt Chart, Histogram chart, Tornado Chart, Combination Chart, Box and Whisker Chart, Polar And Radar Chart, Step Area chart

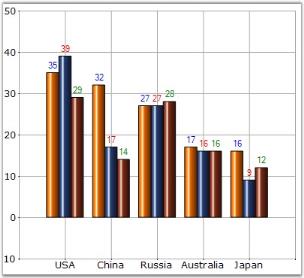

DisplayText

It indicates whether a label indicating the data point value should be displayed at the data points.

Features

Features Details
Possible Values True, False
Default Value False
2D / 3D Limitations No
Applies to Chart Element All series and points
Applies to Chart Types All Chart types

Here is some sample code.

Series wide setting

// Enabling DisplayText

this.chartControl1.Series[0].Style.DisplayText = true;

this.chartControl1.Series[0].Style.TextColor = Color.LightSlateGray;
' Enabling DisplayText

Me.chartControl1.Series(0).Style.DisplayText = True

Me.chartControl1.Series(0).Style.TextColor = Color.LightSlateGray

Chart Series

Chart Series

Accumulation label style

Using the LabelStyle property, you can place labels. The labels can be placed in the following positions:

  • Inside
  • Outside
  • OutsideInArea
  • OutsideInColumn.
// DisplayText position

series.ConfigItems.PieItem.LabelStyle = ChartAccumulationLabelStyle.Inside;
' DisplayText position

 series.ConfigItems.PieItem.LabelStyle = ChartAccumulationLabelStyle.Inside;

Chart Series

Callout Labels

Callout data label is used to customize the text dynamically. It allows you to drag and drop the data label in any place of chart area and edit text by double clicking on the callout data label.

Features

Features Details
Possible Values Callout setting object
Default Value * Enable – False * Text - string.Empty * TextOffset – 2.5f * Font – ChartFontInfo() * DisplayTextAndFormat - "{1},{2}" * Position - LabelPosition.Top * OffsetX – 0 * OffsetY – 0 * Color – HighlightText * TextColor – WindowText * Border - ChartLineInfo
2D / 3D Limitations No
Applies to Chart Element All series and points
Applies to Chart Types Area chart, bar chart, scatter chart, bubble chart, column chart, stacking column chart, stacking column100 chart, line chart, spline chart, rotated spline chart, stepLine chart, candle chart, HiLo chart, HiLoOpenClose chart, combination chart, pie chart.

By using “DisplayTextAndFormat”, you can customize the text displayed in the callout.

  • {0} - displays the series name in callout.
  • {1} - displays the x-value of the corresponding point in callout.
  • {2} - displays the y-value of the corresponding point in callout. Default format for callout is “{0},{1}”.

The following code sample demonstrates how to customize the text displayed in callout.

// Specified 3D View

this.chartControl1.Series3D = true;

// Enable Callout Feature

this.chartControl1.Series[0].Style.Callout.Enable = true;

// Change position, DisplayText format and color

this.chartControl1.Series[0].Style.Callout.DisplayTextAndFormat = "{1}: {2}";

this.chartControl1.Series[0].Style.Callout.Position = LabelPosition.Top;

this.chartControl1.Series[0].Style.Callout.Color = Color.LightBlue;

// Customize Text Font

this.chartControl1.Series[0].Style.Callout.Font.FontStyle = FontStyle.Underline;

this.chartControl1.Series[0].Style.Callout.TextColor = Color.Black;

this.chartControl1.Series[0].Style.Callout.Font.Size = 11;
' Specified 3D View

            Me.chartControl1.Series3D = True

' Enable Callout Feature

           Me.chartControl1.Series(0).Style.Call.Enable = True

 ' Change position, DisplayText format and color

            Me.chartControl1.Series(0).Style.Call.DisplayTextAndFormat = "{1}: {2}"

            Me.chartControl1.Series(0).Style.Call.Position = LabelPosition.Top

            Me.chartControl1.Series(0).Style.Call.Color = Color.LightBlue

 ' Customize Text Font

            Me.chartControl1.Series(0).Style.Call.Font.FontStyle = FontStyle.Underline

            Me.chartControl1.Series(0).Style.Call.TextColor = Color.Black

            Me.chartControl1.Series(0).Style.Call.Font.Size = 11

Chart Series

Specific Data Point Setting

To specify text for specific points, use the below code.

// Enabling DisplayText for the first data point

this.chartControl1.Series[0].Styles[0].DisplayText = true;

this.chartControl1.Series[0].Styles[0].TextColor = Color.LightSlateGray;
'Enabling DisplayText for the first data point

Me.chartControl1.Series(0).Styles(0).DisplayText = True

Me.chartControl1.Series(0).Styles(0).TextColor = Color.LightSlateGray

See Also

Chart Types

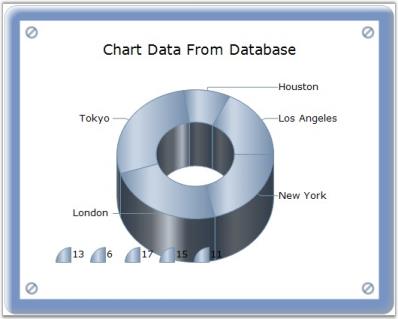

DoughnutCoefficient

Specifies the percentage of the overall radius of the chart that will be used for the Doughnut center hole. For example, if it is set to 0, the doughnut hole will not exist, therefore, the chart will look like a Pie chart.

Features

Features Details
Possible Values Ranges from 0.0 to 0.9
Default Value 0
2D / 3D Limitations No.
Applies to Chart Element All series.
Applies to Chart Types Doughnut Chart, Pie Chart.

PieCharts with a DoughnutCoefficient specified will be rendered as doughnut. By default, this value is set to 0.0 and hence the chart will be rendered as a full pie.

The DoughnutCoefficient property specifies the fraction of the radius occupied by the doughnut whole. Hence the value can range from 0.0 to 0.9.

this.chartControl1.Series[0].ConfigItems.PieItem.DoughnutCoefficient = 0.5f;
Me.chartControl1.Series(0).ConfigItems.PieItem.DoughnutCoefficient = 0.5f

Chart Series

See Also

PieChart

DrawColumnSeparatingLines

The drawing of separating line between columns is controlled by this property.

Features

Features Details
Possible Values True or False
Default Value False
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Column Chart and Bar Chart

Here is some sample code.

this.chartControl1.Series[0].DrawColumnSeparatingLines = true;
Me.chartControl1.Series(0).DrawColumnSeparatingLines = True

Chart Series

See Also

Column Charts, BarCharts

DrawErrorBars

Error Bars are used to indicate a degree of uncertainty in the plotted data through a bar indicating an “error range”.

The 2nd y value is used to indicate the error range. For example, a value of 5 indicates an error range of -5 to +5 from the specified y value.

Features

Features Details
Possible Values True or False
Default Value False
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Column Chart, Line Chart and HiLo Chart

Here is some sample code.

// Generating Series

ChartSeries series = new ChartSeries("Sales", ChartSeriesType.Column);

// 2nd Y value indicates the error range

series.Points.Add(1, new double[] { 20, 5 });

series.Points.Add(2, new double[] { 70, 6 });

series.Points.Add(3, new double[] { 10, 3 });

series.Points.Add(4, new double[] { 40, 6 });

series.Text = series.Name;

// Specifies the error bar in the column chart.

series.ConfigItems.ErrorBars.Enabled = true;

// Adding the series to the chart

this.chartControl1.Series.Add(series);
' Generating Series

series As New ChartSeries("Sales", ChartSeriesType.Column)

' 2nd Y value indicates the error range

series.Points.Add(1, New Double() { 20, 5 })

series.Points.Add(2, New Double() { 70, 6 })

series.Points.Add(3, New Double() { 10, 3 })

series.Points.Add(4, New Double() { 40, 6 })

series.Text = series.Name

' Specifies the error bar in the column chart.

series.ConfigItems.ErrorBars.Enabled = True


' Adding the series to the chart

Me.chartControl1.Series.Add(series)

Chart Series

Chart Series

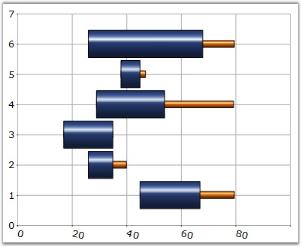

ErrorBar Orientation

Orientation of the ErrorBars can be specified in the ErrorBars.Orientation property. It can be Vertical or Horizontal.

//Creates a New Series

ChartSeries s1 = new ChartSeries("series");

//Points for the Series

s1.Points.Add(10, new double[] {20, 2, 2});

s1.Points.Add(20, new double[] {70, 2, 2});

s1.Points.Add(30, new double[] {10, 2, 2});

s1.Points.Add(40, new double[] {40, 2, 2});

s1.Points.Add(40, new double[] {40, 2, 2});

s1.Text = s1.Name;

//Type of Series

s1.Type = ChartSeriesType.Line;

s1.ConfigItems.ErrorBars.Enabled = true;

// Set the orientation to horizontal

s1.ConfigItems.ErrorBars.Orientation = ChartOrientation.Horizontal;

s1.ConfigItems.ErrorBars.SymbolShape = ChartSymbolShape.None;

s1.Style.Interior = new Syncfusion.Drawing.BrushInfo(Color.Red);

this.chartControl1.PrimaryXAxis.DrawGrid = false;

this.chartControl1.PrimaryYAxis.DrawGrid = false;

this.chartControl1.Series.Add(s1);
'Creates a New Series

Dim s1 As New ChartSeries("series")

'Points for the Series

s1.Points.Add(10, New Double() {20, 2, 2})

s1.Points.Add(20, New Double() {70, 2, 2})

s1.Points.Add(30, New Double() {10, 2, 2})

s1.Points.Add(40, New Double() {40, 2, 2})

s1.Points.Add(40, New Double() {40, 2, 2})

s1.Text = s1.Name

'Type of Series

s1.Type = ChartSeriesType.Line

s1.ConfigItems.ErrorBars.Enabled = True

' Set the orientation to horizontal

s1.ConfigItems.ErrorBars.Orientation = ChartOrientation.Horizontal

s1.ConfigItems.ErrorBars.SymbolShape = ChartSymbolShape.None

s1.Style.Interior = New Syncfusion.Drawing.BrushInfo(Color.Red)

Me.chartControl1.PrimaryXAxis.DrawGrid = False

Me.chartControl1.PrimaryYAxis.DrawGrid = False

Me.chartControl1.Series.Add(s1)

Chart Series

See Also

Line Charts, Column Charts, HiLo Charts, SymbolShape

ShowNormalDistribution

The normal distribution curve is drawn by setting this property of the ChartSeries class to true.

Features

Features Details
Possible Values True or False
Default Value False
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Histogram Chart

Here is some sample code.

// This draws the normal distribution curve for the histogram chart.

series2.ConfigItems.HistogramItem.ShowNormalDistribution = true;

// Set the desired number of intervals required for the histogram chart.

series2.ConfigItems.HistogramItem.NumberOfIntervals = 10;
' This draws the normal distribution curve for the histogram chart.

series2.ConfigItems.HistogramItem.ShowNormalDistribution = True

' Set the desired number of intervals required for the histogram chart.

series2.ConfigItems.HistogramItem.NumberOfIntervals = 10

Chart Series

See Also

Histogram chart

DrawSeriesNameInDepth

Indicates whether to draw series name at opposed position to origin, along x-axis.

Features

Features Details
Possible Values True or False
Default Value False
2D / 3D Limitations 3D Only
Applies to Chart Element All series
Applies to Chart Types All chart types

Here is some sample code.

// Specified 3D View

this.chartControl1.Series3D = true;

// Setting Text Format

this.chartControl1.Series[0].Style.Font.FontStyle = FontStyle.Underline;

this.chartControl1.Series[0].Style.TextColor = Color.Black;

this.chartControl1.Series[0].Style.Font.Size = 7;

this.chartControl1.Series[0].Style.Font.Facename = "Times New Roman";

// Set SeriesNameDepth as True

this.chartControl1.Series[0].DrawSeriesNameInDepth = true;
' Specified 3D View

Me.chartControl1.Series3D = True

' Setting Text Format

Me.chartControl1.Series(0).Style.Font.FontStyle = FontStyle.Underline

Me.chartControl1.Series(0).Style.TextColor = Color.Black

Me.chartControl1.Series(0).Style.Font.Size = 7

Me.chartControl1.Series(0).Style.Font.Facename = "Times New Roman"

' Set SeriesNameDepth as True

Me.chartControl1.Series(0).DrawSeriesNameInDepth = True

Chart Series

See Also

Chart Types

DropSeriesPoints

The chart also provides you an option to drop some points (by not drawing some points) while rendering large number of chart points.

You can enable this, by setting the DropSeriesPoints property to true.

this.chartControl1.DropSeriesPoints = true;
Me.chartControl1.DropSeriesPoints = True

ElementBorders

Gets / sets the border settings for elements associated with the chart point. You can specify the inner and outer border. It is currently used only by symbols rendered by the ChartPoint (inherited from ChartStyleInfo).

Features

Features Details
Possible Values Border setting object
Default Value
  • Weight – Thin
  • Width value – 1
  • Style - Standard

2D / 3D Limitations
No
Applies to Chart Element All series and points
Applies to Chart Types Area Charts, Bar Charts, Bubble Chart, Column Charts, Line Charts, Candle Chart, Renko chart, Three Line Break Chart, Box and Whisker Chart, Gantt Chart, Tornado Chart, Polar and Radar Chart

Here is some sample code.

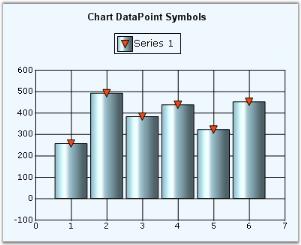

Series Wide Setting

// Setting Symbol for the ChartSeries

this.chartControl1.Series[0].Style.Symbol.Color = Color.Yellow;

this.chartControl1.Series[0].Style.Symbol.Shape = ChartSymbolShape.InvertedTriangle;

// Setting ElementBorder for a symbol

ChartBordersInfo border = new ChartBordersInfo();

border.Outer = new ChartBorder(ChartBorderStyle.Solid, Color.White);

border.Inner = new ChartBorder(ChartBorderStyle.DashDot, Color.Cyan);

this.chartControl1.Series[0].Style.ElementBorders = border;
' Setting Symbol for the ChartSeries

Me.chartControl1.Series(0).Style.Symbol.Color = Color.Yellow

Me.chartControl1.Series(0).Style.Symbol.Shape = ChartSymbolShape.InvertedTriangle

' Setting ElementBorder for a symbol

border As ChartBordersInfo = New ChartBordersInfo()

border.Outer = New ChartBorder(ChartBorderStyle.Solid, Color.White)

border.Inner = New ChartBorder(ChartBorderStyle.DashDot, Color.Cyan)

Me.chartControl1.Series(0).Style.ElementBorders = border

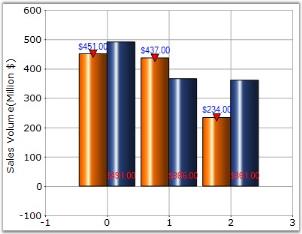

Chart Series

Specific Data Point Setting

//Specifying element border for the first data point Styles(0), second data point Styles(1) and so on..

this.chartControl1.Series[0].Styles[0].ElementBorders = border;
'Specifying element border for the first data point Styles(0), second data point Styles(1) and so on..

this.chartControl1.Series(0).Styles(0).ElementBorders = border

See Also

AreaChart, Bar Charts, Bubble Chart, Column Charts , Line Charts, Candle Charts, Renko chart, Three Line Break Chart,

Box and Whisker Chart, Gantt Chart, Tornado Chart, Polar And Radar Chart

EnablePhongStyle

Specifies if the phong style is enabled.

Features

Features Details
Possible Values True or False
Default Value True
2D / 3D Limitations No
Applies to Chart Element All Series
Applies to Chart Types Bubble Chart

Here is some sample code.

this.chartControl1.Series[0].ConfigItems.BubbleItem.EnablePhongStyle = false;
Me.chartControl1.Series(0).ConfigItems.BubbleItem.EnablePhongStyle = False

Chart Series

See Also

Bubble Charts

EnableAreaToolTip

To display proper tooltip for the Area charts, use the Series.EnableAreaToolTip property. When this property is enabled, the series index and the point index will be returned, which will be suitable for the various PointsToolTipFormats also.

This splits up the region between two points into two parts while hovering the mouse on the region and displays the tooltip with respect to the nearby chart point.

this.chartControl1.Series[0].EnableAreaToolTip = true;
Me.chartControl1.Series(0).EnableAreaToolTip = True

Chart Series

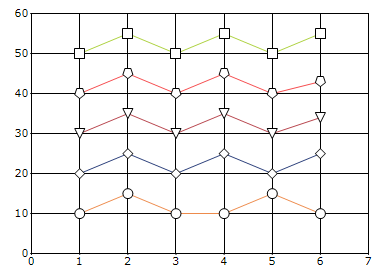

SymbolShape

This property determines the shape of the error bar symbol when DrawErrorBars is true.

Features

Features Details
Possible Values
  • None - No marker will be shown.
  • Line - A Line will be drawn as the marker.
  • Square - A Square will be drawn as the marker.
  • Circle - A Circle will be drawn as the marker.
  • Diamond - A Diamond will be drawn as the marker.
  • Triangle - A Triangle will be drawn as the marker.
  • VertLine - A VerticalLine will be drawn as the marker.
  • Cross - A Cross will be drawn as the marker.
  • Hexagon - An Hexagon will be drawn as the marker.
  • HorizLine - An Horizontal Line will be drawn as the marker.
  • Image - An Image will be drawn as the marker.
  • InvertedTriangle - A InvertedTriangle will be drawn as the marker.
  • Pentagon - A Pentagon will be drawn as the marker.
  • Star - A Star will be drawn as the marker.

Default Value
Diamond
2D / 3D Limitations No
Applies to Chart Element All Series
Applies to Chart Types Line Chart

Here is some sample code.

series.ConfigItems.ErrorBars.Enabled = true;

series.ConfigItems.ErrorBars.SymbolShape = ChartSymbolShape.Circle;
Me.series.ConfigItems.ErrorBars.Enabled = true

Me.series.ConfigItems.ErrorBars.SymbolShape = ChartSymbolShape.Circle

Chart Series

See Also

Line Charts, DrawErrorBars

ExplodedAll

Indicates whether to explode all slice in the Pie or Doughnut chart.

Features

Features Details
Possible Values True, False
Default Value False
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Pie Chart, Doughnut Chart

Here is some sample code.

this.chartControl1.Series[0].ExplodedAll = true;
Me.chartControl1.Series(0).ExplodedAll = True

Chart Series

See Also

PieChart

ExplodedIndex

Gets / sets the Index point that is to be used when a point is to be exploded from the main display.

Features

Features Details
Possible Values An integer indicating the index of the slice to be exploded.
Default Value -1
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Pie Chart, Doughnut Chart

Here is some sample code.

this.chartControl1.Series[0].ExplodedIndex = 0;
Me.chartControl1.Series(0).ExplodedIndex = 0

Chart Series

See Also

PieChart

ExplosionOffset

Gets / sets the offset value that is to be used when slices are to be exploded in a pie chart.

Features

Features Details
Possible Values Float type values
Default Value 20
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Pie Chart, Doughnut Chart

Here is some sample code.

this.chartControl1.Series[0].ExplodedAll = true;

this.chartControl1.Series[0].ExplosionOffset = 30f;
Me.chartControl1.Series[0].ExplodedAll = True

Me.chartControl1.Series(0).ExplosionOffset = 30f

Chart Series

See Also

PieChart

FancyToolTip

Defines the styles for a fancy tooltip. These styles include font, marker style, symbol shape, back color and other related styles.

Features

Features Details
Possible Values Specifies symbol, symbol styles for the ToolTip.
Default Value
  • Visible - False
  • Angle - 15
  • Alignment - Left
  • ForeColor - Color.Black
  • BackColor - Color.Info
  • SymbolColor - Color.Red
  • Font - Arial, 8 pt
  • Symbol Size - (10,10)
  • Symbol - Circle
  • Style - SmoothRectangle

2D / 3D Limitations
No
Applies to Chart Element All series
Applies to Chart Types All Chart Types

Here is some sample code.

this.chartControl1.Series[0].FancyToolTip.Angle = 180;

this.chartControl1.Series[0].FancyToolTip.Style = MarkerStyle.SmoothRectangle;

this.chartControl1.Series[0].FancyToolTip.Symbol = ChartSymbolShape.Hexagon;

this.chartControl1.Series[0].FancyToolTip.Visible = true;
Me.chartControl1.Series(0).FancyToolTip.Angle = 180

Me.chartControl1.Series(0).FancyToolTip.Style = MarkerStyle.SmoothRectangle

Me.chartControl1.Series(0).FancyToolTip.Symbol = ChartSymbolShape.Hexagon

Me.chartControl1.Series(0).FancyToolTip.Visible = True

Chart Series

See Also

Chart Types

FigureBase

Specifies the drawing style for the funnel or pyramid chart base.

Features

Features Details
Possible Values
  • Circle - Renders the chart with a circular base.
  • Square - Renders the chart with a square base.

Default Value
* Funnel Chart - Circle* Pyramid Chart - Square

2D / 3D Limitations
3D Only
Applies to Chart Element All series
Applies to Chart Types Funnel and Pyramid

Here is some sample code.

// Setting FigureBase For Pyramid Chart

this.chartControl1.Series[0].ConfigItems.PyramidItem.FigureBase = ChartFigureBase.Circle;

this.chartControl1.Series[0].ConfigItems.PyramidItem.FigureBase = ChartFigureBase.Square;

// Setting FigureBase For Funnel Chart

this.chartControl1.Series[0].ConfigItems.FunnelItem.FigureBase = ChartFigureBase.Circle;

this.chartControl1.Series[0].ConfigItems.FunnelItem.FigureBase = ChartFigureBase.Square;
' Setting FigureBase For Pyramid

Me.chartControl1.Series(0).ConfigItems.PyramidItem.FigureBase=ChartFigureBase.Circle

Me.chartControl1.Series(0).ConfigItems.PyramidItem.FigureBase=ChartFigureBase.Square

' Setting FigureBase For Funnel Chart

Me.chartControl1.Series(0).ConfigItems.FunnelItem.FigureBase = ChartFigureBase.Circle

Me.chartControl1.Series(0).ConfigItems.FunnelItem.FigureBase = ChartFigureBase.Square

Pyramid Chart

Chart Series

Chart Series

Funnel Chart

Chart Series

Chart Series

See Also

Pyramid Chart,Funnel Chart

FillMode

Specifies how the slice interior should be filled with gradient colors.

Features

Features Details
Possible Values
  • AllPie - Controls the interior shape style of All PieItem.
  • EveryPie - Controls the interior shape style of Every PieItem.

Default Value
AllPie
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Pie Chart

Here is some sample code.

// Setting Pie type

this.chartControl1.Series[0].ConfigItems.PieItem.PieType = ChartPieType.Round;

// Setting the interiors of shapes in this GraphicsPath object are filled.

this.chartControl1.Series[0].ConfigItems.PieItem.FillMode = ChartPieFillMode.EveryPie;
' Setting Pie type

Me.chartControl1.Series(0).ConfigItems.PieItem.PieType = ChartPieType.Round

' Setting the interiors of shapes in this GraphicsPath object are filled.

Me.chartControl1.Series(0).ConfigItems.PieItem.FillMode = ChartPieFillMode.EveryPie

Chart Series

Chart Series

See Also

PieChart

FunnelMode

Gets or sets the chart funnel mode.

Features

Features Details
Possible Values
  • YIsWidth - DataPoint y-value controls the radius of the funnel segment.
  • YIsHeight - DataPoint y-value controls the height of the funnel segment.

Default Value
YIsHeight
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Funnel Chart

Here is some sample code.

this.chartControl1.Series[0].ConfigItems.FunnelItem.FunnelMode = ChartFunnelMode.YIsHeight;

this.chartControl1.Series[0].ConfigItems.FunnelItem.FunnelMode = ChartFunnelMode.YIsWidth;
Me.chartControl1.Series(0).ConfigItems.FunnelItem.FunnelMode = ChartFunnelMode.YIsHeight

Me.chartControl1.Series(0).ConfigItems.FunnelItem.FunnelMode = ChartFunnelMode.YIsWidth

Chart Series

Chart Series

See Also

Funnel Chart

Font

Gets or sets a font object used for drawing the data point labels.

Features

Features Details
Possible Values Specifying font face, size and style.
Default Value
  • FontStyle - Regular
  • Face Name - Microsoft Sans Serif
  • Size - 8.25

2D / 3D Limitations
No
Applies to Chart Element All series and points
Applies to Chart Types All Chart types

Here is some sample code.

Series Wide Setting

this.chartControl1.Series[0].Style.DisplayText = true;

this.chartControl1.Series[0].Style.Font.Bold = true;

this.chartControl1.Series[0].Style.Font.Facename = "Arial";

this.chartControl1.Series[0].Style.Text = "Series 1";
Me.chartControl1.Series(0).Style.DisplayText = True

Me.chartControl1.Series(0).Style.Font.Bold = True

Me.chartControl1.Series(0).Style.Font.Facename = "Arial"

Me.chartControl1.Series(0).Style.Text = "Series 1"

Specific Data Point Setting

//font style set for first data point

this.chartControl1.Series[0].Styles[0].Font.Bold = true;

this.chartControl1.Series[0].Styles[0].Font.Facename = "Arial";
'font style set for first data point

Me.chartControl1.Series(0).Styles(0).Font.Bold = True

Me.chartControl1.Series(0).Styles(0).Font.Facename = "Arial"

Chart Series

See Also

Chart Types

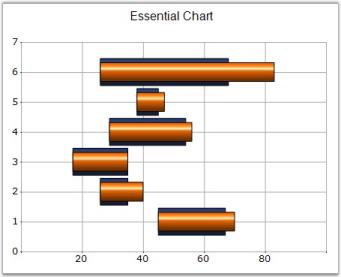

GanttDrawMode

Specifies the drawing mode of Gantt chart.

Features

Features Details
Possible Values
  • AutoSizeMode - Plots the Gantt Chart side by side.
  • CustomPointWidthMode - Plots the Gantt Chart as Overlapped.

Default Value
CustomPointWidthMode
2D / 3D Limitations None
Applies to Chart Element All series
Applies to Chart Types Gantt Chart

Here is some sample code.

// Specifies GanttDrawMode as CustomPointWidthMode

this.chartControl1.Series[0].GanttDrawMode = ChartGanttDrawMode.CustomPointWidthMode;

this.chartControl1.Series[0].Style.PointWidth = 0.7f;

this.chartControl1.Series[1].GanttDrawMode = ChartGanttDrawMode.CustomPointWidthMode;

this.chartControl1.Series[1].Style.PointWidth = 1f;
' Specifies GanttDrawMode as CustomPointWidthMode

Me.chartControl1.Series(0).GanttDrawMode = ChartGanttDrawMode.CustomPointWidthMode

Me.chartControl1.Series(0).Style.PointWidth = 0.7f

Me.chartControl1.Series(1).GanttDrawMode = ChartGanttDrawMode.CustomPointWidthMode

Me.chartControl1.Series(1).Style.PointWidth = 1f
// Specifies GanttDrawMode as AutoSizeMode

this.chartControl1.Series[0].GanttDrawMode = ChartGanttDrawMode.AutoSizeMode;

this.chartControl1.Series[1].GanttDrawMode = ChartGanttDrawMode.AutoSizeMode;
' Specifies GanttDrawMode as AutoSizeMode

Me.chartControl1.Series(0).GanttDrawMode = ChartGanttDrawMode.AutoSizeMode

Me.chartControl1.Series(1).GanttDrawMode = ChartGanttDrawMode.AutoSizeMode

Chart Series

Chart Series

See Also

Gantt Chart

GapRatio

Gets or sets the gap size between funnel chart or pyramid chart segments. Default value is 0.0. The maximum gap size is limited by the number of points.

Features

Features Details
Possible Values Ranges from 0.0
Default Value 0
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Funnel Chart, Pyramid Chart

Here is some sample code.

// Setting GapRatio for Funnel Chart

this.chartControl1.Series[0].ConfigItems.FunnelItem.GapRatio = 0.1f;

// Setting GapRatio for Pyramid Chart

this.chartControl1.Series[0].ConfigItems.PyramidItem.GapRatio = 0.1f;
' Setting GapRatio for Funnel Chart

Me.chartControl1.Series(0).ConfigItems.FunnelItem.GapRatio = 0.1f

' Setting GapRatio for Pyramid Chart

Me.chartControl1.Series(0).ConfigItems.PyramidItem.GapRatio = 0.1f

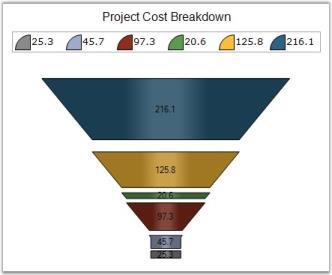

Chart Series

Chart Series

See Also

Pyramid Chart, Funnel Chart

Gradient

Gets / sets ColorBlend for a pie item. ColorBlend defines arrays of colors and positions used for interpolating color blending in a multicolor gradient.

Features

Features Details
Possible Values A ColorBlend object
Default Value None
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Pie Chart

Here is some sample code.

series.ConfigItems.PieItem.PieType = ChartPieType.Custom;

ColorBlend color = new ColorBlend();

color.Positions = new float[] { 0f, 0.05f, 1f };

color.Colors = new Color[] { Color.SteelBlue, Color.LightSteelBlue, Color.AliceBlue };

// Specifying Gradient Style

series.ConfigItems.PieItem.Gradient = color;
series.ConfigItems.PieItem.PieType = ChartPieType.Custom

Private color As ColorBlend = New ColorBlend()

color.Positions = New Single() { 0f, 0.05f, 1f }

color.Colors = New Color() { Color.SteelBlue, Color.LightSteelBlue, Color.AliceBlue }

' Specifying Gradient Style

series.ConfigItems.PieItem.Gradient = color

Chart Series

See Also

PieChart

HeightBox

Gets / sets the height of the boxes in the financial chart types.

Features

Features Details
Possible Values A double value
Default Value 1
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Point And Figure Chart

Here is some sample code.

this.chartControl1.Series[0].HeightBox = 2f;
Me.chartControl1.Series(0).HeightBox = 2f

Chart Series

Chart Series

See Also

PointAndFigure Chart

HeightByAreaDepth

Indicates whether to draw series using the ChartArea.Depth property.

Features

Features Details
Possible Values True or False
Default Value False
2D / 3D Limitations 3D Only
Applies to Chart Element All series
Applies to Chart Types Pie Chart

Here is some sample code.

this.chartControl1.Series[0].ConfigItems.PieItem.HeightByAreaDepth = true;

this.chartControl1.ChartArea.Depth = 25f;
Me.chartControl1.Series(0).ConfigItems.PieItem.HeightByAreaDepth = True

Me.chartControl1.ChartArea.Depth = 25f

Chart Series

Chart Series

See Also

PieChart

HeightCoefficient

When in 3D mode, the relative height of the pie chart can be specified via the property. Note that the HeightByAreaDepth property should be set as false for this to take effect.

Features

Features Details
Possible Values Valid Ranges From 0 to 1
Default Value 0.2
2D / 3D Limitations 3D Only
Applies to Chart Element All series
Applies to Chart Types Pie Chart

Here is the sample code.

this.chartControl1.Series[0].ConfigItems.PieItem.HeightByAreaDepth = false;

this.chartControl1.Series[0].ConfigItems.PieItem.HeightCoefficient = 0.1f;
Me.chartControl1.Series(0).ConfigItems.PieItem.HeightByAreaDepth = False

Me.chartControl1.Series(0).ConfigItems.PieItem.HeightCoefficient=0.1f

Chart Series

See Also

PieChart

HighlightInterior

The auto highlight color for any series can be changed by setting the color at the HighlightInterior property of ChartStyleInfo class.

Features

Features Details
Possible Values RBG values ranges from 0 to 255
Default Value None
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Bar Charts, Pie, Funnel, Pyramid,Bubble, Column, Area, Stacking Area, Stacking Area100, Line Charts, Box and Whisker, Gantt Chart , Tornado Chart, Polar And Radar Chart, Hi Lo Chart, Hi Lo Open Close Chart

Here is some sample code.

Series Wide Setting

this.chartControl1.AutoHighlight = true;

ChartSeries series1 = this.chartControl1.Series[0];

series1.Style.HighlightInterior = new BrushInfo(GradientStyle.ForwardDiagonal, Color.Red, Color.White);
Me.chartControl1.AutoHighlight = True

Dim series1 As ChartSeries = Me.chartControl1.Series(0)

series1.Style.HighlightInterior = New BrushInfo(GradientStyle.ForwardDiagonal, Color.Red, Color.White)

Chart Series

Specific Data Point Setting

To set interior color for individual highlighted datapoints,

series1.Styles[0].HighlightInterior = new BrushInfo(GradientStyle.ForwardDiagonal, Color.Red, Color.White);

series1.Styles[1].HighlightInterior = new BrushInfo(GradientStyle.ForwardDiagonal, Color.Green, Color.White);

series1.Styles[2].HighlightInterior = new BrushInfo(GradientStyle.ForwardDiagonal, Color.Yellow, Color.White);

series1.Styles[3].HighlightInterior = new BrushInfo(GradientStyle.ForwardDiagonal, Color.Pink, Color.White);
series1.Styles(0).HighlightInterior = New BrushInfo(GradientStyle.ForwardDiagonal, Color.Red, Color.White)

series1.Styles(1).HighlightInterior = New BrushInfo(GradientStyle.ForwardDiagonal, Color.Green, Color.White)

series1.Styles(2).HighlightInterior = New BrushInfo(GradientStyle.ForwardDiagonal, Color.Yellow, Color.White)

series1.Styles(3).HighlightInterior = New BrushInfo(GradientStyle.ForwardDiagonal, Color.Pink, Color.White)

See Also

BarCharts, PieChart, Funnel Chart, Pyramid Chart, Bubble Charts,Column Charts,AreaChart, Stacking Area Chart, Stacked Area100 Chart, Line Charts, Box and Whisker Chart, Gantt Chart, Tornado Chart, Polar And Radar Chart, HiLo Charts, HiLo Open Close Chart

HitTestRadius

HitTestRadius property controls the circle around this point, which will be considered within the bounds of this point for hit-testing purposes. The ChartRegion events such as ChartRegionClick, ChartRegionMouseDown, ChartRegionMouseHover, ChartRegionMouseLeave, ChartRegionMouseMove and ChartRegionMouseEnter, are being affected by this property.

Features

Features Details
Possible Values A double values
Default Value 7.5
2D / 3D Limitations None
Applies to Chart Element All series
Applies to Chart Types Line Chart and Step Line Chart

Here is some sample code.

// Specifies the circle radius around the point for HitTest

this.chartControl1.Series[0].Style.HitTestRadius = 20;

// ChartClick Event will be fired if clicked within the above circle

void chartControl1_ChartRegionClick(object sender, Syncfusion.Windows.Forms.Chart.ChartRegionMouseEventArgs e)

{

  // Message appears when User hits the test radius region

  if (e.Region.IsChartPoint)

  {

    MessageBox.Show("Point is Hit");

  }

}
' Specifies the circle radius around the point for HitTest

Me.chartControl1.Series(0).Style.HitTestRadius = 20

' ChartClick Event will be fired if clicked within the above circle

Private Sub chartControl1_ChartRegionClick(ByVal sender As Object, ByVal e As Syncfusion.Windows.Forms.Chart.ChartRegionMouseEventArgs)

' Message appears when User hits the test radius region

If e.Region.IsChartPoint Then

MessageBox.Show("Point is Hit")

End If

End Sub

Chart Series

See Also

Line Charts , StepLineChart, ChartRegionClick Events

ImageIndex

Gets / sets the image index from the associated ImageList property.

Features

Features Details
Possible Values A numeric value indicating an index of the image list.
Default Value None
2D / 3D Limitations No
Applies to Chart Element All series and points
Applies to Chart Types Area Charts, Bar Charts, Bubble Chart, Column Charts, Line Charts, Candle Chart, Renko chart, Three Line Break Chart, Box and Whisker Chart, Gantt Chart, Tornado Chart, Polar and Radar Chart

Here is some sample code.

Series Wide Setting

// Setting Images For the Series1

series1.Style.Images = new ChartImageCollection(this.imageList1.Images);

series1.Style.Symbol.ImageIndex = 0;

series1.Style.Symbol.Size = new Size(20, 20);

series1.Style.Symbol.Shape = ChartSymbolShape.Image;
' Setting Images For the Series1

series1.Style.Images = New ChartImageCollection(Me.imageList1.Images)

series1.Style.Symbol.ImageIndex = 0

series1.Style.Symbol.Size = New Size(20, 20)

series1.Style.Symbol.Shape = ChartSymbolShape.Image

Chart Series

Specific Data Point Setting

//Symbol set for specific data points (first point)

series1.Styles[0].Images = new ChartImageCollection(this.imageList1.Images);

series1.Styles[0].Symbol.ImageIndex = 0;

series1.Styles[0].Symbol.Size = new Size(20, 20);

series1.Styles[0].Symbol.Shape = ChartSymbolShape.Image;

//Symbol set for specific data points (Second point)

series1.Styles[1].Images = new ChartImageCollection(this.imageList1.Images);

series1.Styles[1].Symbol.ImageIndex = 1;

series1.Styles[1].Symbol.Size = new Size(20, 20);

series1.Styles[1].Symbol.Shape = ChartSymbolShape.Image;
'Symbol set for specific data points (first point )

series1.Styles(0).Images = New ChartImageCollection(Me.imageList1.Images)

series1.Styles(0).Symbol.ImageIndex = 0

series1.Styles(0).Symbol.Size = New Size(20, 20)

series1.Styles(0).Symbol.Shape = ChartSymbolShape.Image

//Symbol set for specific data points (Second point here)

series1.Styles(1).Images = New ChartImageCollection(Me.imageList1.Images)

series1.Styles(1).Symbol.ImageIndex = 1

series1.Styles(1).Symbol.Size = New Size(20, 20)

series1.Styles(1).Symbol.Shape = ChartSymbolShape.Image

See Also

AreaChart, BarCharts, Bubble Charts, Column Charts , Line Charts, Candle Charts, Renko Chart, ThreeLineBreak Chart, Box and Whisker Chart, Gantt Chart, Tornado Chart, Polar And Radar Chart

Images

Gets / sets the image list that is to be associated with this ChartPoint. This property is used in conjunction with the ImageIndex property to display images associated with this point.

Features

Features Details
Possible Values Value that represents the custom ImageList.
Default Value None
2D / 3D Limitations No
Applies to Chart Element All series and points
Applies to Chart Types Area Charts, Bar Charts, Bubble Chart, Column Charts, Line Charts, Candle Chart, Renko chart, Three Line Break Chart, Box and Whisker Chart, Gantt Chart, Tornado Chart, Polar and Radar Chart

Here is some sample code.

// Setting Images For the Series1

series1.Style.Images = new ChartImageCollection(this.imageList1.Images);

series1.Style.Symbol.ImageIndex = 0;

series1.Style.Symbol.Size = new Size(20, 20);

series1.Style.Symbol.Shape = ChartSymbolShape.Image;

// Disabling PhongStyle

this.chartControl1.Series[0].ConfigItems.BubbleItem.EnablePhongStyle = false;
' Setting Images For the Series1

series1.Style.Images = New ChartImageCollection(Me.imageList1.Images)

series1.Style.Symbol.ImageIndex = 0

series1.Style.Symbol.Size = New Size(20, 20)

series1.Style.Symbol.Shape = ChartSymbolShape.Image

' Disabling PhongStyle

Me.chartControl1.Series(0).ConfigItems.BubbleItem.EnablePhongStyle = False

Chart Series

Specific Data Point Setting

You can also specify different image collections for different data points using the below code.

series1.Styles[0].Images = new ChartImageCollection(this.imageList1.Images);

series1.Styles[0].Symbol.ImageIndex = 1;

series1.Styles[0].Symbol.Size = new Size(20, 20);

series1.Styles[0].Symbol.Shape = ChartSymbolShape.Image;

series1.Styles[1].Images = new ChartImageCollection(this.imageList2.Images);

series1.Styles[1].Symbol.ImageIndex = 2;

series1.Styles[1].Symbol.Size = new Size(20, 20);

series1.Styles[1].Symbol.Shape = ChartSymbolShape.Image;
series1.Styles(0).Images = New ChartImageCollection(Me.imageList1.Images)

series1.Styles(0).Symbol.ImageIndex = 1

series1.Styles(0).Symbol.Size = New Size(20, 20)

series1.Styles(0).Symbol.Shape = ChartSymbolShape.Image

series1.Styles(1).Images = New ChartImageCollection(Me.imageList2.Images)

series1.Styles(1).Symbol.ImageIndex = 2

series1.Styles(1).Symbol.Size = New Size(20, 20)

series1.Styles(1).Symbol.Shape = ChartSymbolShape.Image

See Also

AreaChart, BarCharts, Bubble Charts, Column Charts ,Line Charts, Candle Charts, Renko Chart, ThreeLineBreak Chart, Box and Whisker Chart, Gantt Chart, Tornado Chart, Polar And Radar Chart

InSideRadius

Sets / Gets the radius of the doughnut hole of Pie chart as a fraction of the radius of the pie.

Features

Features Details
Possible Values Ranges from 0.0f to 1.0f.
Default Value None.
2D / 3D Limitations No.
Applies to Chart Element All series.
Applies to Chart Types Pie Chart.

Here is some sample code.

ChartSeries series1 = new ChartSeries("Market");

series1.InSideRadius = 0.5f;
Dim series1 As New ChartSeries("Market")

series1.InSideRadius = 0.5f

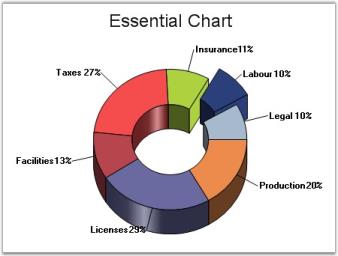

Chart Series

See Also

PieChart

Interior

This property will allow the user to set a solid back color, gradient or pattern style for the data points.

Features

Features Details
Possible Values A BrushInfo object
Default Value None
2D / 3D Limitations No
Applies to Chart Element All series and points
Applies to Chart Types All Chart Types

Series Wide Setting

The spline area interior brush can be customized using the ChartSeries.Style.Interior property as shown below.

The interior color of the chart series can be customized by using the Interior property of the ChartStyleInfo class. The following code illustrates this.

// This sets the interior color for the series. This can be done for any number of series.

this.chartControl1.Series[0].Style.Interior = new BrushInfo(GradientStyle.Horizontal ,Color.AliceBlue, Color.Green);
' This sets the interior color for the series. This can be done for any number of series.

Me.chartControl1.Series(0).Style.Interior = New BrushInfo(GradientStyle.Horizontal,Color.AliceBlue, Color.Green)

Chart Series

Specific Data Point Setting

You can also set interior color for individual data points using Series.Styles[0].Interior property.

this.chartControl1.Series[0].Styles[0].Interior = new BrushInfo(GradientStyle.Horizontal ,Color.AliceBlue, Color.Green);

this.chartControl1.Series[0].Styles[1].Interior = new BrushInfo(GradientStyle.Horizontal ,Color.Blue, Color.AliceBlue);
Me.chartControl1.Series(0).Styles[0].Interior = New BrushInfo(GradientStyle.Horizontal,Color.AliceBlue, Color.Green)

Me.chartControl1.Series(0).Styles[1].Interior = New BrushInfo(GradientStyle.Horizontal,Color.Blue, Color.AliceBlue)

PieChart Specific

When rendering pie charts, it’s sometimes very helpful to render a patterned background for each slice, while printing the pie on a gray scale printer. You can do as easily as shown below. The code here is for a Pie Chart series with 4 points.

series1.Styles[0].Interior = new BrushInfo(PatternStyle.BackwardDiagonal, new BrushInfoColorArrayList(new Color[] { Color.Yellow, Color.Blue }));

series1.Styles[1].Interior = new BrushInfo(PatternStyle.Cross, new BrushInfoColorArrayList(new Color[] { Color.LightGreen, Color.Blue }));

series1.Styles[2].Interior = new BrushInfo(PatternStyle.SolidDiamond, new BrushInfoColorArrayList(new Color[] { Color.Beige, Color.Blue }));

series1.Styles[3].Interior = new BrushInfo(PatternStyle.Wave, new BrushInfoColorArrayList(new Color[] { Color.White, Color.Blue }));

series1.Styles[0].Text = "Server1";

series1.Styles[1].Text = "Server2";

series1.Styles[2].Text = "Server3";

series1.Styles[3].Text = "Server4";
series1.Styles(0).Interior = New BrushInfo(PatternStyle.BackwardDiagonal, New BrushInfoColorArrayList(New Color() { Color.Yellow, Color.Blue }))

series1.Styles(1).Interior = New BrushInfo(PatternStyle.Cross, New BrushInfoColorArrayList(New Color() { Color.LightGreen, Color.Blue }))

series1.Styles(2).Interior = New BrushInfo(PatternStyle.SolidDiamond, New BrushInfoColorArrayList(New Color() { Color.Beige, Color.Blue }))

series1.Styles(3).Interior = New BrushInfo(PatternStyle.Wave, New BrushInfoColorArrayList(New Color() { Color.White, Color.Blue }))

series1.Styles(0).Text = "Server1"

series1.Styles(1).Text = "Server2"

series1.Styles(2).Text = "Server3"

series1.Styles(3).Text = "Server4"

Chart Series

See Also

Chart Types

LabelPlacement

Gets or sets the Pyramid chart or Funnel chart data point label placement when ChartAccumulationLabelStyle is set as inside.

Features

Features Details
Possible Values
  • Center – DataPoint labels are aligned to the center of the Pyramid segment.
  • Top - DataPoint labels are aligned to the top of the Pyramid segment.
  • Bottom – DataPoint labels are aligned to the bottom of the Pyramid segment.
  • Left - DataPoint labels are aligned to the Left of the Pyramid segment.
  • Right - DataPoint labels are aligned to the Right of the Pyramid segment.

Default Value
Right
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types Funnel and Pyramid Charts

Here is the code snippet using LabelPlacement in Pyramid Chart.

this.chartControl1.Series[0].ConfigItems.PyramidItem.LabelPlacement = ChartAccumulationLabelPlacement.Center;
Me.chartControl1.Series(0).ConfigItems.PyramidItem.LabelPlacement = ChartAccumulationLabelPlacement.Center

Chart Series

Here is the code snippet using LabelPlacement in Funnel Chart.

this.chartControl1.Series[0].ConfigItems.FunnelItem.LabelPlacement = ChartAccumulationLabelPlacement.Center;
Me.chartControl1.Series(0).ConfigItems.FunnelItem.LabelPlacement = ChartAccumulationLabelPlacement.Center

Chart Series

See Also

Pyramid Chart, Funnel Chart

LabelStyle

Gets or sets the Pyramid chart or Funnel chart label style. This property dictates the presence and overall positioning of the DataPoint labels.

Features

Features Details
Possible Values
  • Inside - DataPoint label is drawn inside the Pyramid segment.
  • Outside - DataPoint label is drawn outside and next to the Pyramid segment.
  • OutsideInColumn - DataPoint is drawn outside the Pyramid segment with all labels aligned.
  • Disabled - DataPoint labels are disabled.

Default Value
OutsideInColumn
2D / 3D Limitations No
Applies to Chart Element All Series
Applies to Chart Types Funnel, Pyramid charts

Here is the code snippet using LabelStyle in Pyramid Chart.

this.chartControl1.Series[0].ConfigItems.PyramidItem.LabelStyle = ChartAccumulationLabelStyle.OutsideInColumn;
Me.chartControl1.Series(0).ConfigItems.PyramidItem.LabelStyle= ChartAccumulationLabelStyle.OutsideInColumn

Chart Series

Here is the code snippet using LabelStyle in Funnel Chart.

this.chartControl1.Series[0].ConfigItems.FunnelItem.LabelStyle = ChartAccumulationLabelStyle.OutsideInColumn;
Me.chartControl1.Series(0).ConfigItems.FunnelItem.LabelStyle= ChartAccumulationLabelStyle.OutsideInColumn

Chart Series

See Also

Pyramid Chart, Funnel Chart

LegendItem

Refer ChartLegendItem for more information.

LightAngle

Specifies the light angle in horizontal plane.

Features

Features Details
Possible Values Any double value
Default Value -0.785398163397448
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types Column Charts , Bar Charts, Box and Whisker Chart, Gantt Chart, Histogram Chart, Tornado Chart, Polar and Radar Chart, Candle Chart, HiLo Chart(3D), HiloOpenClose(3D)

Here is code snippet using LightAngle in Column Chart.

// Specifies light angle of both the series

this.chartControl1.Series[0].ConfigItems.ColumnItem.LightAngle = 45;

this.chartControl1.Series[1].ConfigItems.ColumnItem.LightAngle = 45;
' Specifies light angle of both the series

Private Me.chartControl1.Series(0).ConfigItems.ColumnItem.LightAngle =45

Private Me.chartControl1.Series(1).ConfigItems.ColumnItem.LightAngle = 45

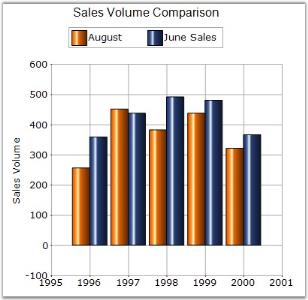

Chart Series

Chart Series

See Also

Column Charts , BarCharts, Box and Whisker Chart , Gantt Chart , Histogram chart, Tornado Chart , Polar And Radar Chart, Candle Charts, HiLo Charts(3D), HiLo Open Close Chart(3D)

LightColor

Specifies the color of light for all shading modes except ChartColumnShadingMode.FlatRectangle.

Features

Features Details
Possible Values A Color object
Default Value Color.White
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types Column Chart, Bar Chart, Box and Whisker Chart, Gantt Chart, Histogram Chart, Tornado Chart, Radar Chart

Here is sample code snippet using LightColor in Column Chart.

this.chartControl1.Series[0].ConfigItems.ColumnItem.LightColor = Color.Blue;

this.chartControl1.Series[1].ConfigItems.ColumnItem.LightColor = Color.Green;
Private Me.chartControl1.Series(0).ConfigItems.ColumnItem.LightColor = Color.Blue

Private Me.chartControl1.Series(1).ConfigItems.ColumnItem.LightColor = Color.Green

Chart Series

See Also

Scatter Chart, Column Charts , BarCharts, Box and Whisker Chart , Gantt Chart , Histogram chart, Tornado Chart ,

Polar and Radar Chart

Name

Specifies the name of the Series. This name can also be used to retrieve the series by name from the series collection.

Features

Features Details
Possible Values Any user defined string
Default Value Null
2D / 3D Limitations No
Applies to Chart Element Any Series points
Applies to Chart Types All chart types

Here is the code snippet using Name in Column Chart.

//This Code Snippet gives the name of the series as Product1

ChartSeries s1 = new ChartSeries();

s1.Type = Syncfusion.Windows.Forms.Chart.ChartSeriesType.Column;

s1.Name="Product1";

// Points to be added

this.chartControl1.Series.Add(s1);

//Series retrieved using Name

this.chartControl1.Series["Product1"].Style.Symbol.Shape = ChartSymbolShape.Diamond;

this.chartControl1.Series["Product1"].Style.Symbol.Color = Color.Red;
' This Code Snippet gives the name of the series as Product

s1 As New ChartSeries()

s1.Type = Syncfusion.Windows.Forms.Chart.ChartSeriesType.Column

s1.Name="Product1"

' Points to be added

Me.chartControl1.Series.Add(s1)

'Series retrieved using Name

Me.chartControl1.Series["Product1"].Style.Symbol.Shape = ChartSymbolShape.Diamond

Me.chartControl1.Series["Product1"].Style.Symbol.Color = Color.Red

Chart Series

See Also

Chart Types

NumberOfIntervals

Gets or sets the number of Histogram intervals.

Features

Features Details
Possible Values Any numeric value
Default Value 10
2D / 3D Limitations No
Applies to Chart Element All Series Points
Applies to Chart Types HistoGram Chart

Here is a code sample.

// Set the desired number of intervals required for the histogram chart.

series.ConfigItems.HistogramItem.NumberOfIntervals = 20;
' Set the desired number of intervals required for the histogram chart.

series.ConfigItems.HistogramItem.NumberOfIntervals = 20

Chart Series

See Also

Histogram chart

DrawMode

Gets or sets the open, close draw mode to the HiLoOpenClose chart.

Features

Features Details
Possible Values
  • Open - Points only the opening value of that period.
  • Close - Points out the closing value of that period.* Both - Points out both the opening and the closing values of that period.

Default Value
Both
2D / 3D Limitations No
Applies to Chart Element Any Series points
Applies to Chart Types HiLoOpenClose Chart

Here is the code snippet using DrawMode.

ChartSeries CS1 = new ChartSeries("Series Name",ChartSeriesType.HiLoOpenClose);

CS1.Points.Add(date,456,214,364,386);

CS1.Points.Add(date.AddDays(1),491, 234, 321, 378 );

CS1.Points.Add(date.AddDays(2),482,193,302,352);

CS1.Points.Add(date.AddDays(3),437,243,354,391);

CS1.Points.Add(date.AddDays(4),421,223,317,367);

CS1.Points.Add(date.AddDays(5),434,263,339,385);

CS1.ConfigItems.HiLoOpenCloseItem.DrawMode = ChartOpenCloseDrawMode.Open;

this.chartControl1.Series.Add(CS1);
Dim CS1 As New ChartSeries("Series Name",ChartSeriesType.HiLoOpenClose)

CS1.Points.Add(date,456,214,364,386)

CS1.Points.Add(date.AddDays(1),491, 234, 321, 378 )

CS1.Points.Add(date.AddDays(2),482,193,302,352)

CS1.Points.Add(date.AddDays(3),437,243,354,391)

CS1.Points.Add(date.AddDays(4),421,223,317,367)

CS1.Points.Add(date.AddDays(5),434,263,339,385)

Me.chartControl1.Series.Add(CS1)

CS1.ConfigItems.HiLoOpenCloseItem.DrawMode = ChartOpenCloseDrawMode.Open

Chart Series

Chart Series

Chart Series

See Also

HiLo Open Close Chart

OptimizePiePointPositions

Specifies if the data points with smaller values are grouped together and ordered. By default, they are ordered in the order in which the points are added to the series.

Features

Features Details
Possible Values
  • True - Enables optimization
  • False - Disables optimization

Default Value True
2D / 3D Limitations No.
Applies to Chart Element Any Series.
Applies to Chart Types Pie Chart.

Here is the code snippet using OptimizePiePointPositions.

ChartSeries series = new ChartSeries("Series Name", ChartSeriesType.Pie);

series.Points.Add(0, 20);

series.Points.Add(1, 28);

series.Points.Add(2, 23);

series.Points.Add(3, 10);

series.Points.Add(4, 12);

series.Points.Add(5, 3);

series.Points.Add(6, 2);

series.ExplodedIndex = 2;

series.OptimizePiePointPositions = false;

this.chartControl1.Series.Add(series);
Dim series As New ChartSeries("Series Name",ChartSeriesType.Pie)

series.Points.Add(0, 20)

series.Points.Add(1, 28)

series.Points.Add(2, 23)

series.Points.Add(3, 10)

series.Points.Add(4, 12)

series.Points.Add(5, 3)

series.Points.Add(6, 2)

series.ExplodedIndex = 2

series.OptimizePiePointPositions = False

Me.chartControl1.Series.Add(series)

Chart Series

Chart Series

See Also

PieChart

PhongAlpha

Specifies the Phong’s alpha co-efficient used for calculating specular lighting.

Features

Features Details
Possible Values Any double value
Default Value 20
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types Column Chart, Bar Chart, Box and Whisker Chart, Gantt Chart, Histogram Chart, Tornado Chart, Polar and Radar Chart, HiLo Chart, HiLoOpenClose Chart, Candle Chart, Scatter Chart

Here is code snippet using PhongAlpha in Column Chart.

this.chartControl1.Series[0].ConfigItems.ColumnItem.PhongAlpha = 2.0;
Private Me.chartControl1.Series(0).ConfigItems.ColumnItem.PhongAlpha = 2.0

Chart Series

Chart Series

See Also

BarCharts , Box and Whisker Chart , Column Charts , Candle Charts , Gantt Chart , HiLo Charts , HiLo Open Close Chart , Histogram chart , Tornado Chart, Radar Charts, Scatter Chart,

PieType

Sets pre-defined types for pie charts.

Features

Features Details
Possible Values
  • None - It has no specific type.
  • OutSide - Specifies outside pie type.
  • InSide - Specifies inside pie type.
  • Round - Specifies Round pie type.
  • Bevel - Specifies Bevel pie type.
  • Custom - Specifies custom pie type.

Default Value
None
2D / 3D Limitations No
Applies to Chart Element Any Pie Series
Applies to Chart Types PieChart
this.chartControl1.Series[0].ConfigItems.PieItem.PieType=ChartPieType.Bevel;
Me.chartControl1.Series(0).ConfigItems.PieItem.PieType = ChartPieType.Bevel

The following screen shots depict these types.

Chart Series

Chart Series

Chart Series

Chart Series

Chart Series

See Also

PieChart

PieWithSameRadius

Gets or sets whether the pie chart is rendered in the same radius when the LabelStyle is set to Outside or OutsideInColumn.

Features

Features Details
Possible Values True or False
Default Value False
2D / 3D Limitations No
Applies to Chart Element Any Pie Series
Applies to Chart Types PieChart and Doughnut chart
this.chartControl1.Series[0].ConfigItems.PieItem.PieWithSameRadius=true;
Me.chartControl1.Series(0).ConfigItems.PieItem.PieType = True

Setting this property to true will let you display Pie Chart with same size in the divided area.

PointsToolTipFormat

Check Tooltips topic for more info on this setting.

See Also

Chart Types

PointWidth

Sets the width of this point relative to the total width available. It is very useful to render series that overlap.

Features

Features Details
Possible Values 0.0F to 1.0F
Default Value 1.0F
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types Gantt Chart

Here is a code snippet using PointWidth in Gantt Chart.

Series Wide Setting

ganttSeries.Style.PointWidth = 0.25f;
Private ganttSeries.Style.PointWidth = 0.25f

Chart Series

Chart Series

Specific Data Point Setting

You can also set the PointWidth for specific points using Series.Styles[0].PointWidth for the first data point, Series.Styles[1].PointWidth for the second data point and so on.

ganttSeries.Styles[0].PointWidth = 0.25f;

ganttSeries.Styles[1].PointWidth = 0.5f;
Private ganttSeries.Styles(0).PointWidth = 0.25f

Private ganttSeries.Styles(1).PointWidth = 0.5f

See Also

Gantt Chart

PriceDownColor

Specifies a color for the financial item whose price is down.

Features

Features Details
Possible Values Any valid color
Default Value Color.Red
2D / 3D Limitations No
Applies to Chart Element Any series
Applies to Chart Types Kagi Chart, Point and Figure Chart, Renko Chart, Three Line Break Chart

Here is code snippet using PriceDownColor in point and figure Chart.

series7.PriceDownColor = Color.Magenta;

series7.PriceUpColor= Color.Orange;
series7.PriceDownColor = Color.Magenta

series7.PriceUpColor = Color.Orange

Chart Series

See Also

Kagi Chart, PointAndFigure Chart, ThreeLineBreak Chart, Renko Chart

PriceUpColor

Specifies a color for the financial item whose price is up.

Features

Features Details
Possible Values Any valid color
Default Value Color.Green
2D / 3D Limitations No
Applies to Chart Element Any series
Applies to Chart Types Kagi Chart, Point and Figure Chart, Renko Chart, Three Line Break Chart

Here is sample code snippet using PriceUpColor in Kagi Chart.

series.PriceUpColor = Color.Red;

series.PriceDownColor = Color.Green;
series.PriceUpColor = Color.Red

series.PriceDownColor = Color.Green

Chart Series

See Also

Kagi Chart, Point and Figure Chart, Three Line Break Chart, Renko Chart

PyramidMode

Specifies the mode in which the y values should be interpreted. In Linear mode the y values are proportional to the length of the sides of the Pyramid. In Surface Mode the y values are proportional to the surface area of the corresponding blocks.

Features

Features Details
Possible Values
  • Linear - Draw pyramid chart in linear mode
  • Surface - Draw pyramid chart in surface mode

Default Value
Linear
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types Pyramid

Here is some sample code.

this.chartControl1.Series[0].ConfigItems.PyramidItem.PyramidMode=ChartPyramidMode.Surface;
Private Me.chartControl1.Series(0).ConfigItems.PyramidItem.PyramidMode=ChartPyramidMode.Surface

Chart Series

See Also

Pyramid Chart

Radar Type

Indicates the type of radar chart to be rendered.

Features

Features Details
Possible Values
  • Area - Renders the radar chart such that the points are connected and the enclosed region is not filled.
  • Line - Renders the radar chart such that the points are connected but the enclosed region is not filled.
  • Symbol - Points are rendered with the associated symbols

Default Value
Area
2D / 3D Limitations No
Applies to Chart Element Any series
Applies to Chart Types Polar and Radar Chart

Here is code snippet using RadarType.

this.chartControl1.Series[0].ConfigItems.RadarItem.Type = ChartRadarDrawType.Symbol;

this.chartControl1.Series[1].ConfigItems.RadarItem.Type = ChartRadarDrawType.Symbol;

this.chartControl1.Series[0].Style.Symbol.Shape = ChartSymbolShape.Star;

this.chartControl1.Series[1].Style.Symbol.Shape = ChartSymbolShape.Star;

this.chartControl1.Series[0].Style.Symbol.Color = Color.Blue;

this.chartControl1.Series[1].Style.Symbol.Color = Color.Green;
Private Me.chartControl1.Series(0).ConfigItems.RadarItem.Type = ChartRadarDrawType.Symbol

Private Me.chartControl1.Series(1).ConfigItems.RadarItem.Type = ChartRadarDrawType.Symbol

Private Me.chartControl1.Series(0).Style.Symbol.Shape = ChartSymbolShape.Star

Private Me.chartControl1.Series(1).Style.Symbol.Shape = ChartSymbolShape.Star

Private Me.chartControl1.Series(0).Style.Symbol.Color = Color.Blue

Private Me.chartControl1.Series(1).Style.Symbol.Color = Color.Green

Chart Series

See Also

Polar And Radar Charts

RadarStyle

Indicates the style of the radar chart axes.

Features

Features Details
Possible Values
  • Polygon - Axes are renders as polygon.
  • Circle - Axes are renders as Circle.

Default Value
Polygon
2D / 3D Limitations No
Applies to Chart Element Any series
Applies to Chart Types Radar Chart

Here is code snippet using RadarType.

this.chartControl1.RadarStyle = ChartRadarAxisStyle.Circle;
Me.chartControl1.RadarStyle = ChartRadarAxisStyle.Circle

Chart Series

Chart Series

See Also

Radar Charts

RelatedPoints

Lets you specific the relationship between two points in the Gantt chart type. This will render a line connecting the specified points.

Features

Features Details
Possible Values A ChartRelatedPointInfo object, which has the following properties:
  • Color - Any Color Object* Alignment - Any PenAlignment Property
  • Points - Integer Array containing the points which are to be connected.
  • Count - Specifies the Number of points
  • DashStyle - Any System.Drawing.Drawing2D.DashStyle* DashPattern - A Float array with two values
  • Width - Any Float value

Default Value
  • Color - Control Text Color
  • Alignment - Center* Points - Null* Count - 0
  • DashStyle - Solid* DashPattern - Null
  • Width - 5.0f

2D / 3D Limitations
No
Applies to Chart Element Any Series and Points
Applies to Chart Types Gantt Chart

Here is sample code snippet using RelatedPoints.

// Related Points for first series

int[] ptIndices = new int[] {2,4};

this.chartControl1.Series[0].Styles[3].RelatedPoints.Points = ptIndices;

this.chartControl1.Series[0].Styles[3].RelatedPoints.Color = Color.Red;

this.chartControl1.Series[0].Styles[3].RelatedPoints.Alignment = System.Drawing.Drawing2D.PenAlignment.Right;

this.chartControl1.Series[0].Styles[3].RelatedPoints.DashStyle = System.Drawing.Drawing2D.DashStyle.Custom;

this.chartControl1.Series[0].Styles[3].RelatedPoints.Width = 3f;

float[] dash = new float[] { 1.5f, 2.4f };

this.chartControl1.Series[0].Styles[3].RelatedPoints.DashPattern = dash;

// Related Points for second series

int[] ptIndices = new int[] { 1 };

this.chartControl1.Series[1].Styles[5].RelatedPoints.Points = ptIndices;

this.chartControl1.Series[1].Styles[5].RelatedPoints.Color = Color.Green;

this.chartControl1.Series[1].Styles[5].RelatedPoints.Alignment = System.Drawing.Drawing2D.PenAlignment.Center;

this.chartControl1.Series[1].Styles[5].RelatedPoints.DashStyle = System.Drawing.Drawing2D.DashStyle.Solid;

this.chartControl1.Series[1].Styles[5].RelatedPoints.Width = 3f;
' Related Points for first series

Dim ptIndices As Integer() = New Integer() {2,4}

Me.chartControl1.Series(0).Styles(3).RelatedPoints.Points = ptIndices

Me.chartControl1.Series(0).Styles(3).RelatedPoints.Color = Color.Red

Me.chartControl1.Series(0).Styles(3).RelatedPoints.Alignment = System.Drawing.Drawing2D.PenAlignment.Right

Me.chartControl1.Series(0).Styles(3).RelatedPoints.DashStyle = System.Drawing.Drawing2D.DashStyle.Custom

Me.chartControl1.Series(0).Styles(3).RelatedPoints.Width = 3f

Dim dash As Single() = New Single() { 1.5f, 2.4f }

Me.chartControl1.Series(0).Styles(3).RelatedPoints.DashPattern = dash

' Related Points for second series

Dim ptIndices As Integer() = New Integer() { 1 }

Me.chartControl1.Series(1).Styles(5).RelatedPoints.Points = ptIndices

Me.chartControl1.Series(1).Styles(5).RelatedPoints.Color = Color.Green

Me.chartControl1.Series(1).Styles(5).RelatedPoints.Alignment = System.Drawing.Drawing2D.PenAlignment.Center

Me.chartControl1.Series(1).Styles(5).RelatedPoints.DashStyle = System.Drawing.Drawing2D.DashStyle.Solid

Me.chartControl1.Series(1).Styles(5).RelatedPoints.Width = 3f

Chart Series

See Also

Gantt Chart

ReversalAmount

Gets or sets the reversal amount for financial charts.

Features

Features Details
Possible Values Any numeric value
Default Value 1
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types Kagi Chart, Three Line Break Chart, Point and Figure Chart, Renko Chart

Here is code snippet using ReversalAmount in Renko Chart.

Chart Series

series.ReversalAmount = 3;
Private series.ReversalAmount = 3

Chart Series

See Also

Kagi Chart, PointAndFigure Chart, ThreeLineBreak Chart, Renko Chart

Rotate

Indicates whether the x and y axis should be rotated for this series.

Features

Features Details
Possible Values True - Enable the Rotate property False - Disable the Rotate property
Default Value False
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types Column Charts, Bar Charts, Area charts, Line Chart, Spline Chart, Stepline Chart, Box and Whisker chart, Histogram chart, Polar and Radar Chart, Bubble And Scatter Chart

Here is sample code snippet using Rotate in Column Chart.

this.chartControl1.Series[0].Rotate = true;
Private Me.chartControl1.Series(0).Rotate = True

Chart Series

Chart Series

See Also

Column Charts , Bar Charts, AreaChart, Line Chart, Spline Chart, Stepline Chart, Kagi Chart, Box and Whisker chart, Histogram chart, Polar And Radar Chart, Bubble And Scatter Chart

ScatterConnectType

Specifies the connection type of the Scatter Charts.

Features

Features Details
Possible Values None - Scatter Connect Type will be none.Line - Scatter Connect Type will be Line.Spline - Scatter Connect Type will be spline.
Default Value None
2D / 3D Limitations No
Applies to Chart Element All series
Applies to Chart Types Scatter Chart

Scatter Line Chart

Optionally, you can connect the points in the series through straight lines using the ScatterConnectType property as shown below.

series.ScatterConnectType = ScatterConnectType.Line;
series.ScatterConnectType = ScatterConnectType.Line

Chart Series

Scatter Spline Chart

Alternatively, you can connect the points in the series through splines using the ScatterConnectType property as shown below.

series.ScatterConnectType = ScatterConnectType.Spline;

series.ScatterSplineTension = 1; // Default is 0
series.ScatterConnectType = ScatterConnectType.Spline

series.ScatterSplineTension = 1 ' Default is 0

Chart Series

See Also

Scatter Chart

ScatterSplineTension

Sets the tension required for the Scatter Spline Chart.

Features

Features Details
Possible Values Any Possible Numeric Values
Default Value 0.5
2D / 3D Limitations No
Applies to Chart Element All Series
Applies to Chart Types ScatterSplineChart

Here is some sample code.

this.chartControl1.Series[i].ScatterConnectType  = ScatterConnectType.Spline;

this.chartControl1.Series[i].ScatterSplineTension =3;
Private Me.chartControl1.Series(i).ScatterConnectType = ScatterConnectType.Spline

Private Me.chartControl1.Series(i).ScatterSplineTension =3

Chart Series

See Also

Scatter Chart

SeriesToolTipFormat

Specifies the format for tooltip display in series.

Features

Features Details
Possible Values
  • {0} - Series Name
  • {1} - Series Style tooltip

Default Value
{0}
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types Area Charts, Radar Chart, Polar Chart, ThreeLineBreak Chart,PointAndFigure Chart, StepLine Chart, Spline Chart, HiloOpenClose(3D), RotatedSpline, Kagi Chart

Here is some sample code.

this.chartControl1.Series[1].SeriesToolTipFormat="{0}";
Private Me.chartControl1.Series(1).SeriesToolTipFormat="{0}"

Chart Series

See Also

AreaChart, Radar Chart, Polar Chart, ThreeLineBreak Chart,PointAndFigure Chart, StepLine Chart, Spline Chart, HiLo Open Close Chart(3D), RotatedSpline, Kagi Chart

ShadingMode

Specifies the appearance of the chart series.

Features

Features Details
Possible Values
  • FlatRectangle - Displays in a flat rectangular format.
  • PhongCylinder - Displays in a cylindrical format.

Default Value
PhongCylinder
2D / 3D Limitations No
Applies to Chart Element All Series
Applies to Chart Types Column Chart, BarCharts, Candle Chart, HiLo Chart, HiLoOpenClose Chart, Tornado chart, Box and Whisker chart, Gantt Chart, Histogram Chart, Polar and Radar Chart

Here is sample code snippet using ShadingMode.

this.chartControl1.Series[0].ConfigItems.ColumnItem.ShadingMode = ChartColumnShadingMode.FlatRectangle;
Private Me.chartControl1.Series(0).ConfigItems.ColumnItem.ShadingMode = ChartColumnShadingMode.FlatRectangle

Chart Series

Chart Series

See Also

Column Charts , BarCharts, Candle Charts, HiLo Charts,HiLo Open Close Chart, Tornado Chart, Box and Whisker Chart, Gantt Chart, Histogram chart, Polar And Radar Chart

ShadowInterior

Specifies the interior color of the shadow.

Features

Features Details
Possible Values Any valid Color format
Default Value Black
2D / 3D Limitations 2D only
Applies to Chart Element Any Series
Applies to Chart Types Column Charts, Bubble Chart, Line Charts, BarCharts, Candle Chart, Kagi Chart, Point and Figure Chart, Renko Chart, Three Line Break Chart, Box and Whisker Chart, Gantt Chart, Histogram Chart, Tornado Chart, Pie Chart, Polar and Radar Chart, Area Chart, Step Area Chart

Here is sample code snippet using ShadowInterior in Column Chart.

Series Wide Setting

// Specifying Shadow Interior for 2 series

this.chartControl1.Series[0].Style.DisplayShadow = true;

this.chartControl1.Series[0].Style.ShadowInterior = new BrushInfo(GradientStyle.None, Color.SteelBlue,Color.SteelBlue);
' Specifying Shadow Interior for 2 series

Private Me.chartControl1.Series(0).Style.DisplayShadow = True

Private Me.chartControl1.Series(0).Style.ShadowInterior = New BrushInfo(GradientStyle.None, Color.SteelBlue,Color.SteelBlue)

Chart Series

Specific Data Point Setting

To specify different shadow colors for individual points, use Series.Styles[0].ShadowInterior property.

this.chartControl1.Series[0].Styles[0].ShadowInterior = new BrushInfo(GradientStyle.None, Color.SteelBlue,Color.SteelBlue);

this.chartControl1.Series[0].Styles[0].ShadowInterior = new BrushInfo(GradientStyle.None, Color.Gray,Color.Gray);
Private Me.chartControl1.Series(0).Style.ShadowInterior = New BrushInfo(GradientStyle.None, Color.SteelBlue,Color.SteelBlue)

Private Me.chartControl1.Series(0).Style.ShadowInterior = New BrushInfo(GradientStyle.None, Color.Gray,Color.Gray)

See Also

Column Charts , BarCharts, Line Charts, Candle Charts, Kagi Chart,Box and Whisker Chart, Histogram chart, Polar And Radar Chart,Point and Figure Chart, Renko Chart, Three Line Break Chart, Gantt Chart, Tornado Chart, Pie Chart, Area Chart, Step Area Chart

ShadowOffset

Specifies the width of the shadow of the series.

Features

Features Details
Possible Values Any possible numeric values for x, y
Default Value 3, 2
2D / 3D Limitations 2D only
Applies to Chart Element Any Series
Applies to Chart Types Column Charts, Bubble Chart, Line Charts, BarCharts, Candle Chart, Kagi Chart, Point and Figure Chart, Renko Chart, Three Line Break Chart, Box and Whisker Chart, Gantt Chart, Histogram Chart, Tornado Chart, Pie Chart, Polar and Radar Chart, Area Chart, Step Area Chart

Here is sample code snippet using ShadowOffset in Column Chart.

Series Wide Setting

series.Style.DisplayShadow = true;

series.Style.ShadowOffset = new Size(7, 7);

//For specific points

series.Styles[0].ShadowOffset = new Size(7, 7);

series.Styles[1].ShadowOffset = new Size(8, 8);

series.Styles[2].ShadowOffset = new Size(6, 6);
Private series.Style.DisplayShadow = True

Private series.Style.ShadowOffset = New Size(7, 7)

'For specific points

Private series.Styles(0).ShadowOffset = New Size(7, 7)

Private series.Styles(1).ShadowOffset = New Size(8, 8)

Private series.Styles(2).ShadowOffset = New Size(6, 6)

Chart Series

Specific Data Point Setting

//For specific points

series.Styles[0].ShadowOffset = new Size(7, 7);

series.Styles[1].ShadowOffset = new Size(8, 8);

series.Styles[2].ShadowOffset = new Size(6, 6);
'For specific points

Private series.Styles(0).ShadowOffset = New Size(7, 7)

Private series.Styles(1).ShadowOffset = New Size(8, 8)

Private series.Styles(2).ShadowOffset = New Size(6, 6)

See Also

Column Charts , BarCharts, Line Charts, Candle Charts, Kagi Chart, Box and Whisker Chart, Histogram chart, Polar And Radar Chart,Point and Figure Chart, Renko Chart, Three Line Break Chart, Gantt Chart, Tornado Chart, Pie Chart, Area Chart, Step Area Chart

ShowDataBindLabels

Indicates whether data bound labels are displayed in the chart.

Features

Features Details
Possible Values
  • True - Displays the data bind labels.
  • False - Hides the data bind labels.

Default Value
False
2D / 3D Limitations No
Applies to Chart Element All Series
Applies to Chart Types Pie Chart, Doughnut Chart, Funnel Chart and Pyramid chart.

Here is sample code snippet using ShowDataPointLabels.

//For Pie Chart

this.chartControl.Series[0].ConfigItems.PieItem.ShowDataBindLabels = true;

//For Funnel Chart

this.chartControl.Series[0].ConfigItems.FunnelItem.ShowDataBindLabels = true;

//For Pyramid Chart

this.chartControl.Series[0].ConfigItems.PyramidItem.ShowDataBindLabels = true;
'For Pie Chart

Me.chartControl.Series(0).ConfigItems.PieItem.ShowDataBindLabels = True

'For Funnel Chart

Me.chartControl.Series(0).ConfigItems.FunnelItem.ShowDataBindLabels = True

'For Pyramid Chart

Me.chartControl.Series(0).ConfigItems.PyramidItem.ShowDataBindLabels = True

Chart Series

Chart Series

Chart Series

See Also

PieChart, Funnel Chart, Pyramid Chart

ShowHistogramDataPoints

Indicates if the histogram data points should be shown.

Features

Features Details
Possible Values
  • True - Displays the datapoints.
  • False - Hides the datapoints.

Default Value
True
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types Histogram Chart

Here is sample code snippet using ShowHistogramDataPoints.

this.chartControl1.Series[0].ShowHistogramDataPoints =true;
Private Me.chartControl1.Series(0).ShowHistogramDataPoints =True

Chart Series

Chart Series

See Also

Histogram chart

ShowTicks

Indicates whether ticks should be shown or not.

Features

Features Details
Possible Values
  • True - Displays ticks
  • False - Hides ticks

Default Value
True
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types Pie Chart

Here is a sample code snippet using ShowTicks.

// Enables Ticks

this.chartControl1.Series[0].ShowTicks = true;
' Enables Ticks

Private Me.chartControl1.Series(0).ShowTicks = True

Chart Series

Chart Series

See Also

PieChart

SmartLabels

Specifies the behavior of the labels. If set to true, the labels will be rendered to avoid overlap with other labels.

Features

Features Details
Possible Values
  • True - Enables smart labels
  • False - Disables smart labels

Default Value
False
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types All chart types

Here is sample code snippet using Smart Labels in ColumnChart.

this.chartControl1.Series[0].Style.DisplayText = true;

series.Styles[0].Text = series.Name;

this.chartControl1.Series[0].SmartLabels = true;
Me.chartControl1.Series(0).Style.DisplayText = True

series.Styles(0).Text = series.Name

Private Me.chartControl1.Series(0).SmartLabels = True

Chart Series

Chart Series

Custom borders for smart Labels

Smart labels can be made smarter by displaying with customized borders. The color and the width of the border can be changed using the appearance properties available. SmartLabelsBorderColor property is used to set color for the border and SmartLabelsBorderWidth property is used to set the width of the border.

this.chartControl1.Series[0].SmartLabelsBorderColor = Color.Yellow;

this.chartControl1.Series[0].SmartLabelsBorderWidth = 2
Me.chartControl1.Series(0).SmartLabelsBorderColor = Color.Yellow

Me.chartControl1.Series(0).SmartLabelsBorderWidth = 2

See Also

Chart Types

Spacing

Spacing between data points

This specifies the space/width between data points in the x axis. This value is specified in percentage (%) of interval width. So, for example, if the value of the property is 20%, then only 80% of the interval width is used for rendering the data point(s). If there are multiple series then the available width is divided between the data points in the different series. This of course is used only for appropriate chart types like the column chart which has a width component.

This property will not be used when ChartColumnWidth is set to FixedWidthMode.

Features

Features Details
Possible Values A double value (10 to 99)
Default Value 30
2D / 3D Limitations No
Applies to Chart Element Any Series and points
Applies to Chart Types Column Charts, BarCharts, Box and Whisker Chart, Gantt Chart, Tornado Chart, Candle Chart, HiLo Chart, HiLo Open Close Chart
//Indicates the spacing width in percentage that is to be applied between the datapoints of the column chart.

this.chartControl1.Spacing = 50;
'Indicates the spacing width in percentage that is to be applied between the data points of the column chart.

Me.chartControl1.Spacing = 50

Chart Series

See Also

Column Charts , BarCharts, Box and Whisker Chart, Gantt Chart, Tornado Chart, Candle Charts, HiLo Chart, HiLo Open Close Chart

SpacingBetweenSeries

EssentialChart provides support to control the spacing between series using SpacingBetweenSeries property.

Features

Features Details
Possible Values A double value (10 to 100)
Default Value 10
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types Area Charts, BarCharts, Line Charts, Bubble Chart, Financial Charts, Gantt Chart, Histogram chart, Tornado Chart, Combination Chart, Box and Whisker Chart
//Specifies the spacing between individual series.

this.chartControl1.SpacingBetweenSeries = 20;
'Specifies the spacing between individual series.

Me.chartControl1.SpacingBetweenSeries = 20

Chart Series

Chart Series

See Also

Area Charts, BarCharts, Line Charts, Column Charts, Bubble Charts, Financial Charts, Gantt Chart, Histogram chart, Tornado Chart Combination Chart, Box and Whisker Chart

SpacingBetweenPoints

EssentialChart provides support to control the spacing between points using SpacingBetweenPoints property.

Features

Features Details
Possible Values A double value (0 to 99)
Default Value 0
2D / 3D Limitations 2D only
Applies to Chart Element Series points
Applies to Chart Types Column Chart, Bar Chart, HiLo Chart, HiLo Open Close Chart, Candle Chart, Tornado Chart, Boxes and Whisker Chart
this.chartControl1.SpacingBetweenPoints = 70;
Me.chartControl1.SpacingBetweenSeries = 70

See Also

Column Charts , BarCharts, HiLo Charts, HiLo Open Close Chart, Candle Charts, Tornado Chart, Box and Whisker Chart

Stacking Group

This section illustrates how to group the stacking series with another stacking series.

  1. In order to group the stacking series with another stacking series in chart control, you need to set a StackingGroup property of the chart series with the desired group name.

The below example demonstrates the code on setting the StackingGroup for the series in the Chart control.

ChartSeries ser1 = new ChartSeries("Series 1");

   ser1.Type = ChartSeriesType.StackingColumn;

   // specifying group name .

   ser1.StackingGroup = "FirstGroup";

   ChartSeries ser2 = new ChartSeries("Series 2");

   ser2.Type = ChartSeriesType.StackingColumn;

   // specifying group name .

   ser2.StackingGroup = "SecondGroup";

   ChartSeries ser3 = new ChartSeries("Series 3");

   ser3.Type = ChartSeriesType.StackingColumn;

   // specifying group name .

   ser3.StackingGroup = "FirstGroup";
Dim ser1 As New ChartSeries("Series 1")

   ser1.Type = ChartSeriesType.StackingColumn

   ' specifying group name .

   ser1.StackingGroup = "FirstGroup"

   Dim ser2 As New ChartSeries("Series 2")

   ser2.Type = ChartSeriesType.StackingColumn

   ' specifying group name .

   ser2.StackingGroup = "SecondGroup"

   Dim ser3 As New ChartSeries("Series 3")

   ser3.Type = ChartSeriesType.StackingColumn

   ' specifying group name .

   ser3.StackingGroup = "FirstGroup"

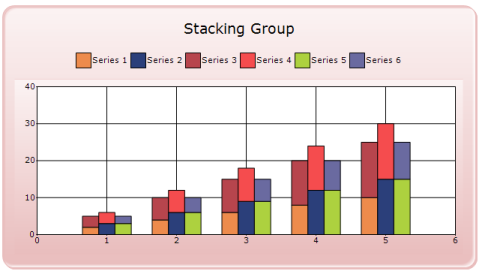

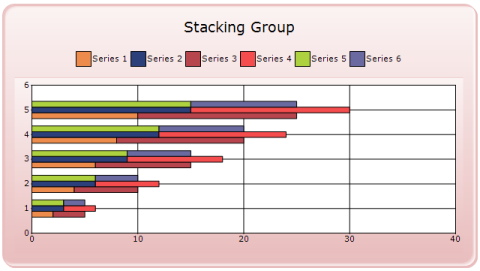

Chart Series

Chart Series

StepItem.Inverted

Specifies if the particular stepline is inverted or not in the StepAreaChart.

Features

Features Details
Possible Values
  • True - Indicates that the stepline is inverted.
  • False - Indicates that the stepline is not inverted.

Default Value
True
2D / 3D Limitations No
Applies to Chart Element Any Series
Applies to Chart Types StepAreaChart, StepLine Chart

Here is sample code snippet using Inverted Step.

this.chartControl1.Series[0].ConfigItems.StepItem.Inverted=true;
Private Me.chartControl1.Series(0).ConfigItems.StepItem.Inverted=True

Chart Series

Chart Series

See Also

StepAreaChart, StepLine Chart

Summary

Provides access to summary information such as minimum/maximum values contained in this series at any given moment.

Features

Features Details
Possible Values </ul></li> MaxX - Returns the maximum X value. </li>
  • MaxY - Returns the minimum Y value.
  • MinX - Returns the minimum X value.
  • MinY - Returns the minimum Y value.
  • ModelImpl - Returns the model implemented.
  • GetYPercentage - This method returns percentage value of series point in a Pie chart.
  • </ul>

    Default Value
    • MaxX - 0
    • MaxY - 0
    • MinY - 0
    • MinX - 0
    • ModelImpl - Nil

    2D / 3D Limitations
    No
    Applies to Chart Element Any Series
    Applies to Chart Types All chart types

    Here is a sample code snippet using Radar chart.

    string str = this.chartControl1.Series[0].Summary.MaxY.ToString();

    string str1 = this.chartControl1.Series[0].Summary.MinY.ToString();

    label1.Text = "Summary" + "\n" + " MaxY Value : " + str + "\n" + "MinY Value : " + str1;

    //To get percentage value of series point in Pie chart

    this.chartControl1.Series[0].Summary.GetYPercentage(1);

    this.chartControl1.Series[0].Summary.GetYPercentage(1, 0);
    Dim str As String = Me.chartControl1.Series(0).Summary.MaxY.ToString()

    Dim str1 As String = Me.chartControl1.Series(0).Summary.MinY.ToString()

    label1.Text = "Summary" + "" & Char(10) & "" + " MaxY Value : " + str + "" & Char(10) & "" + "MinY Value : " + str1

    'To get percentage value of series point in Pie chart

    this.chartControl1.Series[0].Summary.GetYPercentage(1)

    this.chartControl1.Series[0].Summary.GetYPercentage(1, 0)

    Chart Series

    See Also

    Chart Types, How to find value, maximum value and minimum value among the data points

    Symbol

    Sets the attributes of the symbol that is to be displayed at this point.

    Features

    Features Details
    Possible Values
    • Size - Specifies the size of the symbol.
    • Color - Specifies the color of the symbol.
    • Shape - Specifies the shape of the symbol.
    • Offset - Specifies the offset of the symbol.

    Default Value
    • Size - 10,10
    • Color - HighLightText Color
    • Shape - None
    • Offset - 0,0

    2D / 3D Limitations
    No
    Applies to Chart Element Any Series
    Applies to Chart Types Column Chart, Bar Chart, Bubble Chart, Financial Chart, Line Chart, Box and Whisker Chart, Gantt chart, Tornado chart, Radar Chart, Polar Chart, Area Charts, Scatter Chart

    Here is sample code snippet using Symbol in Column Chart.

    Series Wide Setting

    this.chartControl1.Series[0].Style.Symbol.Shape = ChartSymbolShape.Diamond;

    this.chartControl1.Series[0].Style.Symbol.Color=Color.Green;

    this.chartControl1.Series[0].Style.Symbol.Size = new Size(10, 10);

    this.chartControl1.Series[0].Style.Symbol.Offset = new Size(1, 20);

    //Sets the Color of the Symbol border.

    this.chartControl1.Series[0].Style.Symbol.Border.Color = Color.Blue;

    //Sets the Width of the Symbol border.

    this.chartControl1.Series[0].Style.Symbol.Border.Width = 1;

    //Sets the Alignment of the Symbol border.

    this.chartControl1.Series[0].Style.Symbol.Border.Alignment = PenAlignment.Outset;

    //Sets the Dash style of the Symbol Border.

    this.chartControl1.Series[0].Style.Symbol.Border.DashStyle = DashStyle.Solid;
    Private Me.chartControl1.Series(0).Style.Symbol.Shape = ChartSymbolShape.Diamond

    Private Me.chartControl1.Series(0).Style.Symbol.Color=Color.Green

    Private Me.chartControl1.Series(0).Style.Symbol.Size = New Size(10, 10)

    Private Me.chartControl1.Series(0).Style.Symbol.Offset = New Size(1, 20)

    'Used to set the Color of the Symbol border.

    Private Me.chartControl1.Series(0).Style.Symbol.Border.Color = Color.Blue

    'Used to set the Width of the Symbol border.

    Private Me.chartControl1.Series(0).Style.Symbol.Border.Width = 1

    ‘Used to set the Alignment of the Symbol border.

    Private Me.chartControl1.Series(0).Style.Symbol.Border.Alignment = PenAlignment.Outset

    ‘Used to set the Dash style of the Symbol Border.

    Private Me.chartControl1.Series0).Style.Symbol.Border.DashStyle = DashStyle.Solid

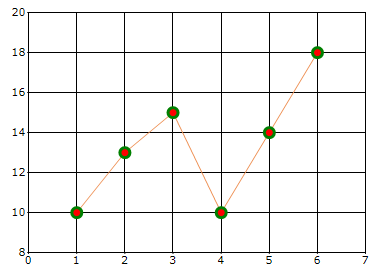

    Chart Series

    Specific Data Point Setting

    To specify customized symbols for individual datapoints, use Series.Styles[i].Symbol property, where i ranges from 0 to n representing the data points.

    this.chartControl1.Series[0].Styles[0].Symbol.Shape = ChartSymbolShape.Diamond;

    this.chartControl1.Series[0].Styles[0].Symbol.Color=Color.Green;

    this.chartControl1.Series[0].Styles[0].Symbol.Size = new Size(10, 10);

    this.chartControl1.Series[0].Styles[0].Symbol.Offset = new Size(1, 20);

    this.chartControl1.Series[0].Styles[1].Symbol.Shape = ChartSymbolShape.Hexagon;

    this.chartControl1.Series[0].Styles[1].Symbol.Color=Color.Yellow;

    this.chartControl1.Series[0].Styles[1].Symbol.Size = new Size(9, 9);

    this.chartControl1.Series[0].Styles[1].Symbol.Offset = new Size(1, 20);

    //Used to set the Color of the Symbol border.

    this.chartControl1.Series[0].Styles[0].Symbol.Border.Color = Color.Blue;

    //Used to set the Width of the Symbol border.

    this.chartControl1.Series[0].Styles[0].Symbol.Border.Width = 3;

    //Used to set the Alignment of the Symbol border.

    this.chartControl1.Series[0].Styles[0].Symbol.Border.Alignment = PenAlignment.Outset;

    //Used to set the Dash style of the Symbol Border.

    this.chartControl1.Series[0].Styles[0].Symbol.Border.DashStyle = DashStyle.Solid;
    Private Me.chartControl1.Series(0).Styles(0).Symbol.Shape = ChartSymbolShape.Diamond

    Private Me.chartControl1.Series(0).Styles(0).Symbol.Color=Color.Green

    Private Me.chartControl1.Series(0).Styles(0).Symbol.Size = New Size(10, 10)

    Private Me.chartControl1.Series(0).Styles(0).Symbol.Offset = New Size(1, 20)

    Private Me.chartControl1.Series(0).Styles(1).Symbol.Shape = ChartSymbolShape.Hexagon

    Private Me.chartControl1.Series(0).Styles(1).Symbol.Color=Color.Yellow

    Private Me.chartControl1.Series(0).Styles(1).Symbol.Size = New Size(9, 9)

    Private Me.chartControl1.Series(0).Styles(1).Symbol.Offset = New Size(1, 20)

    'Used to set the Color of the Symbol border.

    Private Me.chartControl1.Series(0).Styles[0].Symbol.Border.Color = Color.Blue

    'Used to set the Width of the Symbol border.

    Private Me.chartControl1.Series(0).Styles[0].Symbol.Border.Width = 3

    'Used to set the Alignment of the Symbol border.

    Private Me.chartControl1.Series(0).Styles[0].Symbol.Border.Alignment = PenAlignment.Outset

    'Used to set the Dash style of the Symbol Border.

    Private Me.chartControl1.Series0).Styles[0].Symbol.Border.DashStyle = DashStyle.Solid

    See Also

    Column Charts , BarCharts, Bubble Chart, Financial Chart, Line Charts, Box and Whisker Chart, Gantt Chart, Tornado Chart, Radar Chart, Polar Chart, AreaChart, Scatter Chart

    Text (Series)

    It specifies the chart series text. This will be displayed at run-time in the legend.

    Features

    Features Details
    Possible Values Any string value
    Default Value Name of the series
    2D / 3D Limitations No
    Applies to Chart Element Any Series
    Applies to Chart Types All Chart Types

    Text can be set directly by using Series object.

    Here is sample code snippet.

    // Here the series text will be taken from series name

    ChartSeries series1 = new ChartSeries("August",ChartSeriesType.Column);

    // Add points to series1.

    //....

    //....

    // Here, the text is given explicitly.

    ChartSeries series2 = new ChartSeries("June",ChartSeriesType.Column);

    series2.Text = "JuneSales";
    ' Here the series text will be taken from series name

    Dim series1 As New ChartSeries("August",ChartSeriesType.Column)

    ' Add points to series1.

    '....

    ' Here, the text is given explicitly.

    Dim series2 As New ChartSeries("June",ChartSeriesType.Column)

    series2.Text = "JuneSales"

    Chart Series

    See Also

    Chart Types

    Text (Style)

    Series Wide Setting

    Datapoint labels for a series can be specified using Series.Style.Text property.

    //labels for the series

    chartControl1.Series[0].Style.DisplayText = true;

    chartControl1.Series[0].Style.Text = "Series1 Point";
    'labels for the series

    chartControl1.Series[0].Style.DisplayText = True

    chartControl1.Series(0).Style.Text = "Series1 Point"

    Chart Series

    Specific Data Point Setting

    Labels for specific data points can be specified through Series.Styles[0].Text property.

    //labels for the individual datapoints in the series

    chartControl1.Series[0].Style.DisplayText = true;

    chartControl1.Series[0].Styles[0].Text = "First Point";

    chartControl1.Series[0].Styles[1].Text = "Second Point";

    chartControl1.Series[0].Styles[2].Text = "Third Point";
    'labels for the individual datapoints in the series

    chartControl1.Series[0].Style.DisplayText = True

    chartControl1.Series(0).Styles(0).Text = "First Point"

    chartControl1.Series(0).Styles(1).Text = "Second Point"

    chartControl1.Series(0).Styles(2).Text = "Third Point"

    Chart Series

    Chart Series

    See Also

    Chart Types

    TextColor

    It is used to set the color of the display text of the series.

    Features

    Features Details
    Possible Values All predefined colors
    Default Value Black
    2D / 3D Limitations No
    Applies to Chart Element Series and Points
    Applies to Chart Types All Chart Types

    Here is sample code snippet using TextColor in Column Chart.

    Series Wide Setting

    // Set the color of the text in the Series

    this.chartControl1.Series[0].Style.TextColor = Color.Blue;

    this.chartControl1.Series[1].Style.TextColor = Color.Red;

    this.chartControl1.Series[2].Style.TextColor = Color.Green;
    ' Set the color of the text in the Series

    Private Me.chartControl1.Series(0).Style.TextColor = Color.Blue

    Private Me.chartControl1.Series(1).Style.TextColor = Color.Red

    Private Me.chartControl1.Series(2).Style.TextColor = Color.Green

    Chart Series

    Specific Data Point Setting

    We can set TextColor for specific data points in a series by using Series.Styles[0].TextColor property as follows.

    // Set the text color for the three data points in the Series

    this.chartControl1.Series[0].Styles[0].TextColor = Color.Blue;

    this.chartControl1.Series[0].Styles[1].TextColor = Color.SteelBlue;

    this.chartControl1.Series[0].Styles[2].TextColor = Color.LightBlue;
    ' Set the text color for the three data points in the Series

    Private Me.chartControl1.Series(0).Styles(0).TextColor = Color.Blue

    Private Me.chartControl1.Series(0).Styles(1).TextColor = Color.SteelBlue

    Private Me.chartControl1.Series(0).Styles(2).TextColor = Color.LightBlue

    See Also

    Chart Types

    TextFormat

    Sets the format that is to be applied to values that are displayed as text.

    Features

    Features Details
    Possible Values Any string value with '{0}' as place holder for the Y value.
    Default Value Nil
    2D / 3D Limitations No
    Applies to Chart Element Any Series and Points
    Applies to Chart Types All Chart Types

    Here is sample code snippet using TextFormat in Column Chart.

    Series wide setting

    this.chartControl1.Series[0].Style.TextFormat = "T = {0}";
    Me.chartControl1.Series(0).Style.TextFormat = "T = {0}"

    Chart Series

    Specific Data Point Setting

    TextFormats for individual data points are specified using below code.

    chartControl1.Series[0].Styles[0].TextFormat = "YValue : {0}";

    chartControl1.Series[0].Styles[1].TextFormat = "Dollars : {0:C}";
    chartControl1.Series(0).Styles(0).TextFormat = "YValue : {0}"

    chartControl1.Series(0).Styles(1).TextFormat = "Dollars : {0:C}"

    See Also

    Chart Types

    TextOffset

    Sets the Offset of the text from the position of the chart point.

    Features

    Features Details
    Possible Values Any float value
    Default Value 2.5
    2D / 3D Limitations No
    Applies to Chart Element Any Series
    Applies to Chart Types All Chart Types

    Here is a sample code snippet using TextOffset in Column Chart.

    Series Wide Setting

    this.chartControl1.Series[0].Style.TextOffset = 10.0F;
    Me.chartControl1.Series(0).Style.TextOffset = 10.0F

    Chart Series

    Specific Data Point Setting

    TextOffset for data points can be specified using Series.Styles[0].TextOffset property.

    this.chartControl1.Series[0].Styles[0].TextOffset = 10.0F;

    this.chartControl1.Series[0].Styles[1].TextOffset = 15.0F;
    Me.chartControl1.Series(0).Styles(0).TextOffset = 10.0F

    Me.chartControl1.Series(0).Styles(1).TextOffset = 15.0F

    See Also

    Chart Types

    TextOrientation

    It is used to align the text of the series within the data point region.

    Features

    Features Details
    Possible Values
    • Center - Aligns to the center of the point.
    • Down - Aligns below the point.
    • Left - Aligns to the left position to the point.
    • RegionCenter - Aligns below the region that represents the points.
    • RegionDown - Aligns below the region that represents the points.
    • RegionUp - Aligns to the top of the region that represents the points.
    • Right - Aligns to the right of the point.
    • Smart - Aligns in a manner that is appropriate to the situation.
    • SymbolCenter - Text is centered to the symbol that is associated to the point.
    • Up - Aligns to the top of the point.
    • UpLeft - Aligns to the top left corner of the point.
    • UpRight - Aligns to the top right corner of the point.

    Default Value
    Up
    2D / 3D Limitations No
    Applies to Chart Element Any Series
    Applies to Chart Types All chart types

    Here is some sample code.

    Series Wide Setting

    // Text Orientation of chart series

    this.chartControl1.Series[1].Style.TextOrientation = ChartTextOrientation.RegionDown;

    this.chartControl1.Series[0].Style.TextOrientation = ChartTextOrientation.Up;

    this.chartControl1.Series[0].Style.TextColor=Color.Blue;

    this.chartControl1.Series[1].Style.TextColor=Color.Red;
    ' Text Orientation of chart series

    Private Me.chartControl1.Series(1).Style.TextOrientation = ChartTextOrientation.RegionDown

    Private Me.chartControl1.Series(0).Style.TextOrientation = ChartTextOrientation.Up

    Private Me.chartControl1.Series(0).Style.TextColor=Color.Blue

    Private Me.chartControl1.Series(1).Style.TextColor=Color.Red

    Chart Series

    Specific Data Point Setting

    Text orientation for specific data points can be set using Series.Style[i].TextOrientation property, where “i” represents the index of data points ranging from 0 to n.

    this.chartControl1.Series[1].Styles[0].TextOrientation = ChartTextOrientation.RegionDown;

    this.chartControl1.Series[0].Styles[0].TextOrientation = ChartTextOrientation.Up;

    this.chartControl1.Series[0].Styles[0].TextColor=Color.Blue;

    this.chartControl1.Series[1].Styles[0].TextColor=Color.Red;

    this.chartControl1.Series[1].Styles[1].TextOrientation = ChartTextOrientation.Smart;

    this.chartControl1.Series[0].Styles[1].TextOrientation = ChartTextOrientation.UpRight;

    this.chartControl1.Series[0].Styles[1].TextColor=Color.Green;

    this.chartControl1.Series[1].Styles[1].TextColor=Color.Yellow;
    Private Me.chartControl1.Series(1).Styles(0).TextOrientation = ChartTextOrientation.RegionDown

    Private Me.chartControl1.Series(0).Styles(0).TextOrientation = ChartTextOrientation.Up

    Private Me.chartControl1.Series(0).Styles(0).TextColor=Color.Blue

    Private Me.chartControl1.Series(1).Styles(0).TextColor=Color.Red

    Private Me.chartControl1.Series(1).Styles(1).TextOrientation = ChartTextOrientation.Smart

    Private Me.chartControl1.Series(0).Styles(1).TextOrientation = ChartTextOrientation.UpRight

    Private Me.chartControl1.Series(0).Styles(1).TextColor=Color.Green

    Private Me.chartControl1.Series(1).Styles(1).TextColor=Color.Yellow

    See Also

    Chart Types

    ToolTip

    Sets the tooltip of the style object associated with the series.
    Features

    Features Details
    Possible Values Any string value
    Default Value Nil
    2D / 3D Limitations No
    Applies to Chart Element Any Series
    Applies to Chart Types Scatter Chart, HiLo Open Close Chart(3D),Column Charts, BarCharts, Bubble Chart,Line Charts, Box and Whisker Chart, Tornado Chart, Combination Chart, Gantt Chart,Candle Chart, HiLo Chart(3D), PolarAndRadar, PieChart,Accumulation Charts, Area Charts

    Property

    Property Description Type Data Type Reference links
    ShowToolTips Specifies whether tooltip has to be displayed. Server side Boolean NA

    Here is sample code snippet using ToolTip in the Column Chart.

    Series Wide Setting

    this.chartControl1.ShowToolTips = true;

    series1.PointsToolTipFormat = "{1}";

    series1.Style.ToolTip = "Tooltip of Series1";
    Me.chartControl1.ShowToolTips = True

    series1.PointsToolTipFormat = "{1}"

    series1.Style.ToolTip = "Tooltip of Series1"

    Chart Series

    Specific Data Point Setting

    ToolTip can be applied to individual points of a Series.

    for (int i = 0; i < series1.Points.Count; i++)
    {
        series1.Styles[i].ToolTip = string.Format("X = {0}, Y = {1}", series1.Points[0].X.ToString(),series1.Points[i].YValues[0]);
    }
    Dim i As Integer = 0

    Do While i < series1.Points.Count

    series1.Styles(i).ToolTip = String.Format("X = {0}, Y = {1}", series1.Points(0).X.ToString(),series1.Points(i).YValues(0))

      i += 1

    Loop

    Chart Series

    See Also

    Scatter Chart,HiLo Open Close Chart(3D), Column Charts, BarCharts, Bubble Charts, Line Charts, Box and Whisker Chart, Tornado Chart, Combination Chart, Gantt Chart, Candle Charts, HiLo Charts(3D), Polar And Radar Chart, PieChart, Accumulation Charts, Area Charts

    ToolTipFormat

    Sets the tooltip format of the style object associated with the series.

    Features

    Features Details
    Possible Values Any string with '{0}' as the place holder for Y value.
    Default Value Nil
    2D / 3D Limitations No
    Applies to Chart Element Any Series and Points
    Applies to Chart Types Scatter Chart, HiLo Open Close Chart(3D),Column Charts, BarCharts, Bubble Chart,Line Charts, Box and Whisker Chart, Tornado Chart, Combination Chart, Gantt Chart,Candle Chart, HiLo Chart(3D), PolarAndRadar, PieChart,Accumulation Charts, Area Charts

    Here is sample code snippet using ToolTipFormat in the Column chart.

    Series Wide Setting

    this.chartControl1.ShowToolTips = true;

    this.chartControl1.Series[1].Style.ToolTipFormat = "Y = {0}";
    Me.chartControl1.ShowToolTips = True

    Me.chartControl1.Series[1].Style.ToolTipFormat = "Y = {0}"

    Chart Series

    Specific Data Point Setting

    Tooltip format can be applied for individual points by using Series.Styles[0].ToolTipFormat property settings.

    for (int i = 0; i < series1.Points.Count; i++)
    {
        series1.Styles[i].ToolTipFormat = "{0}";
    }
    Dim i As Integer = 0

    Do While i < series1.Points.Count

    series1.Styles(i).ToolTipFormat = "{0}";

      i += 1

    Loop

    Chart Series

    See Also

    Scatter Chart, HiLo Open Close Chart(3D)

    Visible

    It turns on / off the visibility of the series.

    Features

    Features Details
    Possible Values
    • True - Unhide the associated series.
    • False - Hides the associated series.

    Default Value
    True
    2D / 3D Limitations No
    Applies to Chart Element All series
    Applies to Chart Types All chart types

    Here is sample code snippet using Visible property in Bar Chart.

    // Hides Series[0] and shows Series[1]

    this.chartControl1.Series[0].Visible = false;

    this.chartControl1.Series[1].Visible = true;
    ' Hides Series[0] and shows Series[1]

    Private Me.chartControl1.Series(0).Visible = False

    Private Me.chartControl1.Series(1).Visible = True

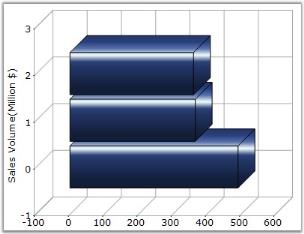

    Chart Series

    Chart Series

    See Also

    Chart Types

    VisibleAllPies

    Specifies whether the legend is to be displayed with one legend item for each slice in the pie.

    Features

    Features Details
    Possible Values
    • True - Indicates only one legend item for all slices of pie.
    • False - Indicates one legend item for each slice of pie.

    Default Value
    False
    2D / 3D Limitations No
    Applies to Chart Element Any Series
    Applies to Chart Types Pie Chart

    Here is the sample code snippet using VisibleAllPies in PieChart.

    this.chartControl1.ChartArea.VisibleAllPies = false;

    chartControl1.Legend.RowsCount = 3;
    Me.chartControl1.ChartArea.VisibleAllPies = False

    chartControl1.Legend.RowsCount = 3

    Chart Series

    Chart Series

    See Also

    Pie Chart

    XType

    Returns the x value type that is being rendered. It is a read-only property.

    Features

    Features Details
    Possible Values
    • Double - Specifies Double values
    • DateTime - Specifies Date and Time values
    • Logarithmic - Specifies Logarithmic values
    • Custom - Specifies Custom values

    Default Value
    Double
    2D / 3D Limitations No
    Applies to Chart Element Any Series
    Applies to Chart Types All Chart Types

    Here is sample code snippet using XType.

    autoLabel1.Text = this.chartControl1.Series[0].XType.ToString();
    Private autoLabel1.Text = Me.chartControl1.Series(0).XType.ToString()

    Chart Series

    See Also

    Chart Types

    YType

    Returns the y value type that is being rendered. It is a read-only property.

    Features

    Features Details
    Possible Values
    • Double - Specifies Double values
    • DateTime - Specifies Date and Time values
    • Logarithmic - Specifies Logarithmic values
    • Custom - Specifies Custom values

    Default Value
    Double
    2D / 3D Limitations No
    Applies to Chart Element Any Series
    Applies to Chart Types All Chart Types

    Here is sample code snippet using YType.

    autoLabel1.Text = this.chartControl1.Series[0].YType.ToString();
    Private autoLabel1.Text = Me.chartControl1.Series(0).YType.ToString()

    Chart Series

    See Also

    Chart Types

    ZOrder

    Specifies the order in which the objects are arranged and controls the visibility when one is placed over the other.

    By default, the Z-order for series are assigned based on the order in which they are added to the Series collection.

    Features Details
    Possible Values Any integer value
    Default Value The order that we add the series in the chart control.
    2D / 3D Limitations No
    Applies to Chart Element Any Series
    Applies to Chart Types Gantt Chart, Histogram chart, Tornado Chart, Combination Chart, Box and Whisker Chart, Area Charts,Polar And Radar Chart, BarCharts, Column Charts, Bubble Charts, Candle Charts, HiLo Charts, HiLo Open Close Chart

    Here is sample code snippet using ZOrder.

    this.chartControl1.Series[0].ZOrder = 0;

    this.chartControl1.Series[1].ZOrder = 1;
    Private Me.chartControl1.Series(0).ZOrder = 0

    Private Me.chartControl1.Series(1).ZOrder = 1

    Chart Series

    Chart Series

    Rearranging the Series using ZOrder property

    The chart series can be rearranged at run-time using ZOrder property as follows. The chart needs to be redrawn in order to reflect ZOrder property changes. We cannot call redrawing for every series ZOrder changes. In order to overcome this, we should change the order of the series in between the begin update and end update statements as follows.

    this.chartControl1.BeginUpdate();

    this.chartControl1.Model.Series[0].ZOrder = 2;

    this.chartControl1.Model.Series[1].ZOrder = 1;

    this.chartControl1.Model.Series[2].ZOrder = 0;

    this.chartControl1.EndUpdate();
    Me.chartControl1.BeginUpdate()

    Me.chartControl1.Model.Series[0].ZOrder = 2

    Me.chartControl1.Model.Series[1].ZOrder = 1

    Me.chartControl1.Model.Series[2].ZOrder = 0

    Me.chartControl1.EndUpdate()

    Chart Series

    See Also

    Gantt Chart, Histogram chart, Tornado Chart, Combination Chart, Box and Whisker Chart, Area Charts,Polar And Radar Chart, BarCharts, Column Charts, Bubble Charts, Candle Charts, HiLo Charts,HiLo Open Close Chart

    Data Point Labels, Tooltips and Symbols

    Labels

    Data Points in a series can be adorned with text labels as well as custom symbols to provide additional information regarding the specific data points.

    Text labels can be rendered at the data points using the DisplayText, Text and TextFormat settings. They can further be customized using the TextColor, TextOffset and TextOrientation settings.

    Chart Series

    Tooltips

    Refer the Tooltips topic for more information on this.

    Symbols

    Built-in or custom symbols can be rendered at the data points to emphasize importance of certain data points. See Symbol setting for more information.

    Chart Series

    Shape:

    Data markers are used to provide information about the data points in the series. You can add a shape to adorn each data point.

    Markers can be assigned with different shapes such as rectangle, circle, and diamond using the shape property.

    The following code sample demonstrates how to add shapes to a marker.

    //Set add shape for chart symbols

    series1.Style.Symbol.Shape = ChartSymbolShape.Circle;
    //Set add shape for chart symbols

    series1.Style.Symbol.Shape = ChartSymbolShape.Circle;

    The following screenshot illustrates a chart with different chart symbols.

    Chart Series

    Customization:

    The color and border of a marker can be customized using the color and border properties.

    The following code sample demonstrates how to customize the color and border for shapes.

    // set border and color for chart symbols
     series1.Style.Symbol.Shape = ChartSymbolShape.Circle;
     series1.Style.Symbol.Color = Color.Red;
     series1.Style.Symbol.Border.Color = Color.Green;
     series1.Style.Symbol.Border.Width = 3;
    // set border and color for chart symbols
     series1.Style.Symbol.Shape = ChartSymbolShape.Circle;
     series1.Style.Symbol.Color = Color.Red;
     series1.Style.Symbol.Border.Color = Color.Green;
     series1.Style.Symbol.Border.Width = 3;

    The following screenshot illustrates a chart with color and border customization of chart symbols.

    Chart Series

    Custom Points

    EssentialChart supports plotting of points on the Chart Area even if they don’t belong to a series. These are stored in the ChartControl.CustomPoints collection. They can be set at custom coordinates of the Chart Area or be made to follow a certain point or percentage coordinates. A custom point displays a text, background, border, symbol and marker, which is a line that connects the CustomPoint with the point on the chart area when it is offset from it.

    Through Designer the Custom Points can be set using the CustomPoints property. Clicking this property will popup ChartCustomPoint Collection Editor window where you can add your custom points.

    You can set the co-ordinates (XValue and the YValue property), symbols and their customization, using the Symbols property, text, using the Text property, alignment of the text, using the Alignment property and so on.

    Chart Series

    Chart Series

    Programmatically

    • Creating and Customizing the Custom Point.

      // Point that follows a series point:

       ChartCustomPoint cp = new ChartCustomPoint();

       // Gets the series index and point index if the CustomType is PointFollow.

       cp.PointIndex = 1;

       cp.SeriesIndex = 0;

       // Specifies the text of the custom point.

       cp.Text = "Custom Point";

       // Specifies the custom type.

       chartCustomPoint1.CustomType = Syncfusion.Windows.Forms.Chart.ChartCustomPointType.PointFollow;

       // Specifies the shape of the custom point symbol.

       cp.Symbol.Shape = ChartSymbolShape.Diamond;

       // Specifies the color of the custom point.

       chartCustomPoint1.Symbol.Color = Color.Khaki;

       //Setting X-value and Y- value

       chartCustomPoint1.XValue = 1;

       chartCustomPoint1.YValue = 370;

       //Setting the font properties

       chartCustomPoint1.Color = System.Drawing.SystemColors.ButtonHighlight;

       chartCustomPoint1.Font.Bold = true;

       chartCustomPoint1.Font.Facename = "Verdana";

       chartCustomPoint1.Font.Size = 10F;
      'Point that follows a series point:

       cp As ChartCustomPoint = New ChartCustomPoint()

       'Gets the series index and point index if the CustomType is PointFollow.

       cp.PointIndex = 1

       cp.SeriesIndex = 0

       'Specifies the text of the custom point.

       cp.Text = "Custom Point"

       'Specifies the custom type.

       chartCustomPoint1.CustomType = Syncfusion.Windows.Forms.Chart.ChartCustomPointType.PointFollow

       'Specifies the shape of the custom point symbol.

       cp.Symbol.Shape = ChartSymbolShape.Diamond

       'Specifies the color of the custom point.

       cp.Symbol.Color = Color.Khaki

       //Setting X-value and Y- value

       chartCustomPoint1.XValue = 1

       chartCustomPoint1.YValue = 370

       'Setting the font properties

       chartCustomPoint1.Color = System.Drawing.SystemColors.ButtonHighlight

       chartCustomPoint1.Font.Bold = true

       chartCustomPoint1.Font.Facename = "Verdana"

       chartCustomPoint1.Font.Size = 10F

    NOTE

    You can also customize a custom point symbol using Symbol property.

    • Adding Custom Point to the Chart.

      // Adds the custom point to the collection.

       this.chartControl1.CustomPoints.Add(cp);
      'Adds the custom point to the collection.

       Me.chartControl1.CustomPoints.Add(cp)

    Custom point types

    CustomPoint types Description
    PointFollow This custom point will follow the regular points of any series, to which it is assigned.
    ChartCoordinates This lets you render a point type at any location in the chart.
    Percent The coordinates are specified as the percentage of the chart area.
    Pixel The coordinates are specified to be in pixels of the chart area.

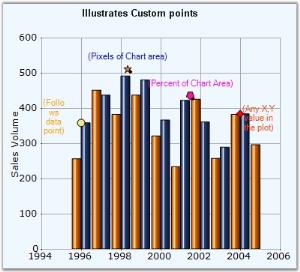

    Chart Series

    The custom point symbols in the above image represents following Custom Types respectively.

    1. Yellow “Circle” – PointFollow
    2. Orange “Star” - Pixel
    3. Pink “Pentagon” - Percent
    4. OrangeRed “Diamond” – ChartCoordinates

    A sample demonstrating all the custom point types is available in our installation at the following location:

    ..\My Documents\Syncfusion\EssentialStudio\Version Number\Windows\Chart.Windows\Samples\2.0\Chart Series\Chart Custom Points

    Custom Point in Multiple Axes

    The custom points for the Secondary axis can be achieved by assigning the Series Index for the ChartCoordinates type.

    The following code snippet illustrates this:

    ChartCustomPoint cp = new ChartCustomPoint();

    cp.CustomType = ChartCustomPointType.ChartCoordinates;

    //Set the series index if the CustomType is ChartCoordinates in multiple axis

    cp.SeriesIndex = 0;

    cp.XValue = 10;

    cp.YValue = 60;

    cp.Symbol.Shape = ChartSymbolShape.Circle;

    cp.Alignment = ChartTextOrientation.Left;

    cp.Color = Color.Black;

    cp.Font.Facename = "Verdana";

    cp.Font.Size = 8.0F;

    cp.Symbol.Color = Color.Yellow;

    cp.Text = cp.XValue + "," + cp.YValue;

    this.ChartWebControl1.CustomPoints.Add(cp);
    Dim cp As ChartCustomPoint = New ChartCustomPoint()

    cp.CustomType = ChartCustomPointType.ChartCoordinates

    'Set the series index if the CustomType is ChartCoordinates in multiple axis

    cp.SeriesIndex = 0

    cp.XValue = 10

    cp.YValue = 60

    cp.Symbol.Shape = ChartSymbolShape.Circle

    cp.Alignment = ChartTextOrientation.Left

    cp.Color = Color.Black

    cp.Font.Facename = "Verdana"

    cp.Font.Size = 8.0F

    cp.Symbol.Color = Color.Yellow

    cp.Text = cp.XValue & "," & cp.YValue

    Me.ChartWebControl1.CustomPoints.Add(cp)

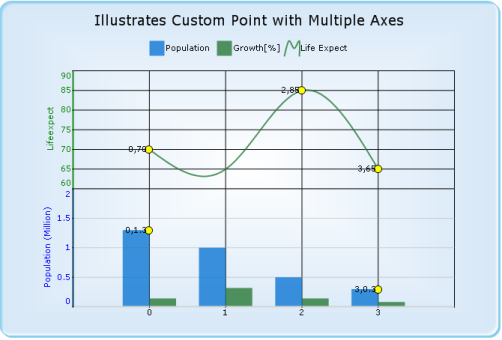

    Chart Series

    Empty Points

    EssentialChart lets you prevent certain points from getting plotted in the resultant chart. Such points are termed Empty Points.

    Empty Points can be implemented by setting the IsEmpty property of the ChartPoint class to true.

    // This sets the specified point as empty point.

    this.chartControl1.Series[1].Points[0].IsEmpty = true;
    ' This sets the specified point as empty point.

    Me.chartControl1.Series[1].Points[0].IsEmpty = True

    The following images illustrate the same. The second image displays after setting Point1 as an empty point.

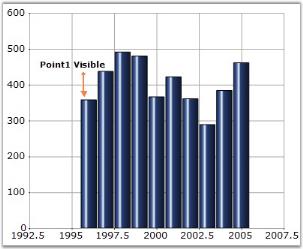

    Chart Series

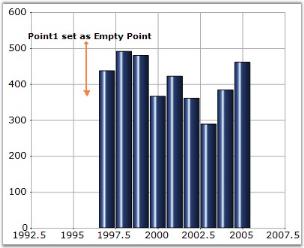

    Chart Series

    Showing Empty Point without any gap between Data Points

    It is possible to set some data point as empty point and still show the chart without any gap between the points. You need to set AllowGapForEmptyPoints property to false to enable this feature. By default it is set to true.

    Chart Series

    NOTE

    You need to set ChartControl.Indexed property to true for the above setting to be effective.

    this.chartControl1.Series[0].Points[3].IsEmpty = true;

    this.chartControl1.Series[0].Points[4].IsEmpty = true;

    this.chartControl1.Series[0].Points[5].IsEmpty = true;
    Me.chartControl1.Series(0).Points(3).IsEmpty = True

    Me.chartControl1.Series(0).Points(4).IsEmpty = True

    Me.chartControl1.Series(0).Points(5).IsEmpty = True

    Chart Series

    this.chartControl1.Indexed = true;

    this.chartControl1.AllowGapForEmptyPoints = true;
    Me.chartControl1.Indexed = True

    Me.chartControl1.AllowGapForEmptyPoints = True

    [VB.NET]

    Chart Series

    Trendlines

    Trendlines are used to analyze and display the trends in the data graphically. It is built on the assumptions based on current and past price trends.
    Multiple Trendlines can be added to the ChartSeries.Trendlines collection which holds objects of class Trendline.

    Features

    Features Details
    2D / 3D Limitations Not Applicable for 3D
    Applies to Chart Element All series and Points
    Applies to Chart Types Scatter Chart, HiLo Open Close Chart, Column Charts, Bar Charts, Bubble Chart, Line Charts, Box and Whisker Chart, Combination Chart, Candle Chart, Area Charts, ColumnRange Chart, BoxAndWhiskerChart, Stacking Column Chart, Stacking Bar Chart, Stacking Area, Stacking Area100

    The Properties of Trendlines are listed below

    Trendline Properties Description Default Value
    Name Gets or Sets the name for the Trendline Trendline
    Visible Displays the Trendline True
    Type Enum property that displays the various types of Trendlines TrendlineType.Linear
    BackwardForecast Gets or Sets the Backward Forecast values 0
    ForwardForecast Gets or Sets the Forward Forecast values 0
    PolynomialOrder Gets or Sets the Polynomial Order value for the Polynomial Trendline 2
    Period Gets or Sets the period used in the Moving Average Trendline 2
    Style Gets or Sets the Dash Style for the Trendline DashStyle.Solid
    Width Gets or Sets the line width for the Trendline 1f
    Color Gets or Sets the Color associated with the Trendline Color.Black

    The Code Snippet to enable the Trendlines in Chart

    //Declaring

    Trendline trendline = new Trendline();

    //Customizing the Trendline

    trendline.Name = "Linear";
    trendline.Visible = true;
    trendline.Style = DashStyle.Solid;
    trendline.Width = 2f;
    trendline.Color = Color.Black;
    trendline.Type = TrendlineType.Linear;

    //Adding Trendline to the series

    this.chartControl1.Series[0].Trendlines.Add(trendline);
    'Declaring

    Private  trendline  As Trendline = new Trendline()

    'Customizing the Trendline

    trendline.Name = "Linear"

    trendline.Visible = true

    trendline.Style = DashStyle.Solid

    trendline.Width = 2f

    trendline.Color = Color.Black

    trendline.Type = TrendlineType.Linear

    'Adding Trendline to the series

    Me.chartControl1.Series[0].Trendlines.Add(trendline)

    Chart Series

    Trendline Types

    The different types of trendlines are

    • Linear Trendline
    • Exponential Trendline
    • Power Trendline
    • Logarithmic Trendline
    • Polynomial Trendline
    • Moving Average Trendline

    Linear Trendline

    To render the Linear Trendline, you have to set the Type as TrendlineType.Linear.

    trendline.Type = TrendlineType.Linear;
    trendline.Type = TrendlineType.Linear

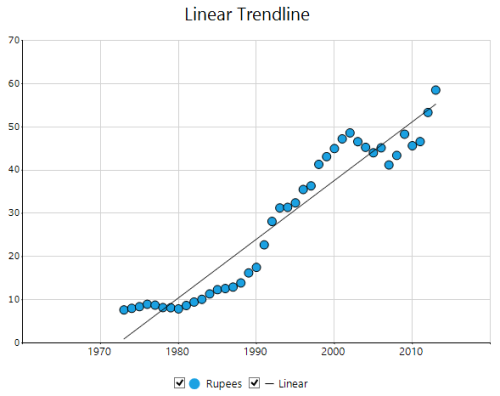

    Chart Series

    Exponential Trendline

    Exponential Trendline can be rendered by setting the trendline.Type as TrendlineType.Exponential.

    trendline.Type = TrendlineType.Exponential;
    trendline.Type = TrendlineType.Exponential

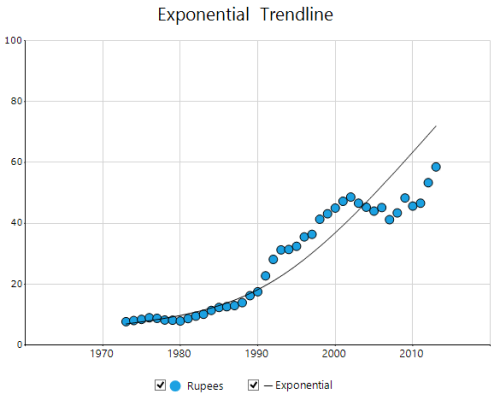

    Chart Series

    NOTE

    This trendline cannot be used for negative values and values containing zero

    Power Trendline

    Power Trendline can be rendered by setting the trendline.Type as TrendlineType.Power.

    trendline.Type = TrendlineType.Power;
    trendline.Type = TrendlineType.Power

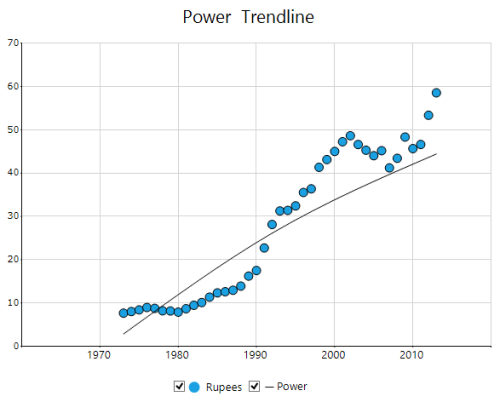

    Chart Series

    Logarithmic Trendline

    Logarithmic Trendline can be rendered by setting the trendline.Type as TrendlineType.Logarithmic.

    trendline.Type = TrendlineType.Logarithmic;
    trendline.Type = TrendlineType.Logarithmic

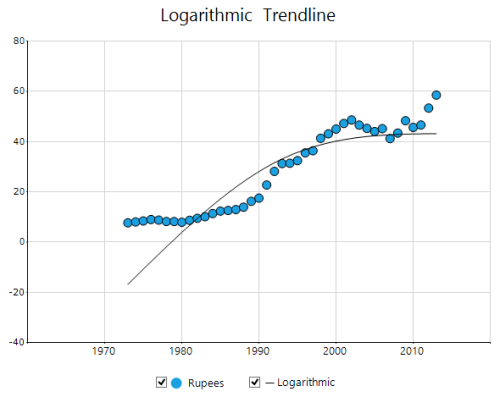

    Chart Series

    Polynomial Trendline

    Polynomial Trendline can be rendered by setting the trendline.Type as TrendlineType.Polynomial.

    trendline.Type = TrendlineType.Polynomial;
    trendline.Type = TrendlineType.Polynomial

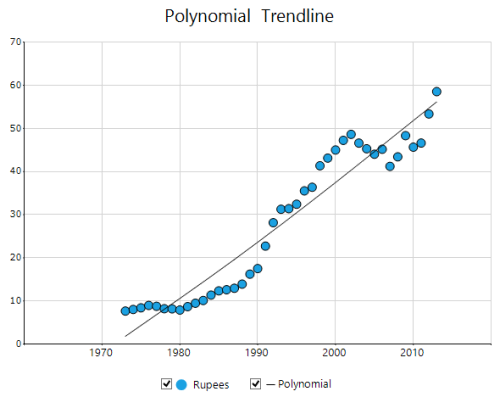

    Chart Series

    Polynomial Order

    You can set the Polynomial order for the Polynomial trendline. Polynomial order calculates order based on the equation and this value should fall between 2 and 6.

    trendline.Type = TrendlineType.Polynomial;
    trendline.PolynomialOrder = 4;
    trendline.Type = TrendlineType.Polynomial
    trendline.PolynomialOrder = 4

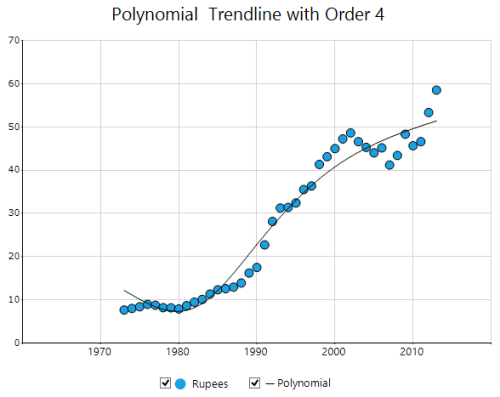

    Chart Series

    Moving Average Trendline

    Moving Average Trendline can be rendered by setting the trendline.Type as TrendlineType.MovingAverage.

    trendline.Type = TrendlineType.MovingAverage;
    trendline.Type = TrendlineType.MovingAverage

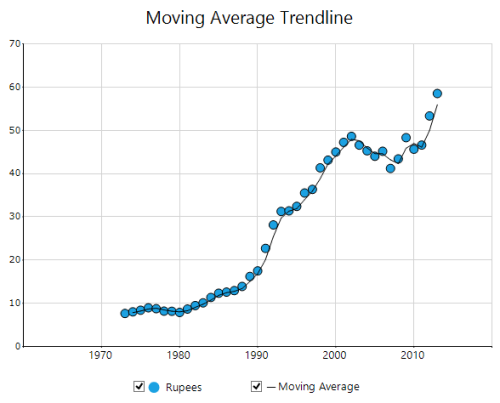

    Chart Series

    Period

    The period of the Moving Average Trendline is modified by using the period property

    trendline.Type = TrendlineType.MovingAverage;
    trendline.Period = 3;
    trendline.Type = TrendlineType.MovingAverage
    trendline.Period = 3

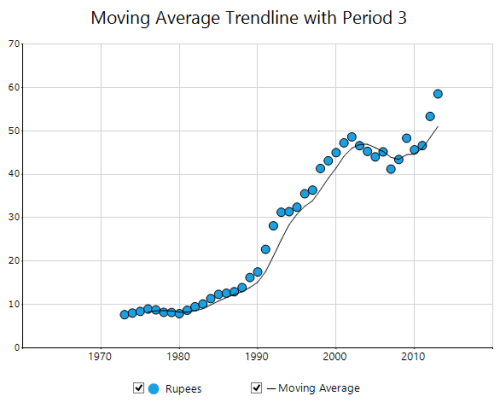

    Chart Series

    Forecasting

    Trendline forecasting is the prediction of future/past situations.

    Forecasting can be classified into two types as follows.

    • Forward Forecasting

    • Backward Forecasting

    Forward Forecasting

    For determining the future trends (in forward direction). The following code example explains the how to set the value for forward forecast.

    trendline.ForwardForecast = 10;
    trendline.ForwardForecast = 10

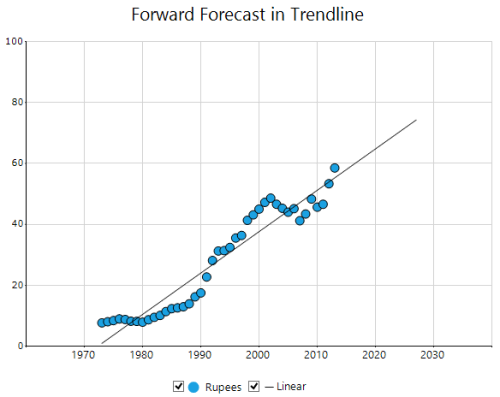

    Chart Series

    Backward Forecasting

    For determining the past trends (in backward direction). The following code example explains the how to set the value for backward forecast.

    trendline.BackwardForecast = 10;
    trendline.BackwardForecast = 10

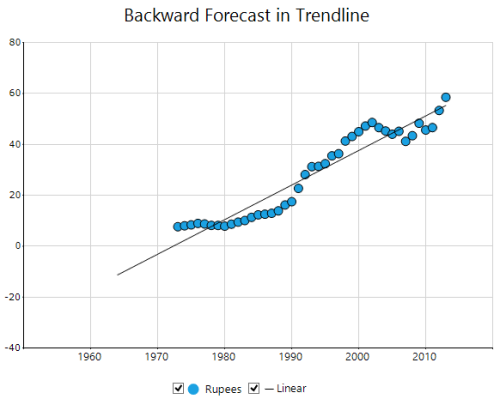

    Chart Series

    Trendline Legends

    The visibility of the trendline can also be checked using the checkboxes in the legend. When the legend checkbox is unchecked, the trendline is hidden.

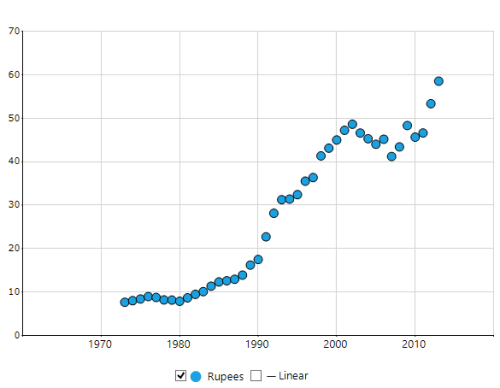

    Chart Series

    NOTE

    In order to enable the checkboxes in the trendline legend ,VisibleCheckBox property should be enabled in the legend.

    Customizing the Styles of the Trendlines

    The trendline can be customized by using the properties such as Color, Width and Style.

    trendline.Style = DashStyle.Dash;
    trendline.Width = 3f;
    trendline.Color = Color.Red;
    trendline.Style = DashStyle.Dash
    trendline.Width = 3f
    trendline.Color = Color.Red

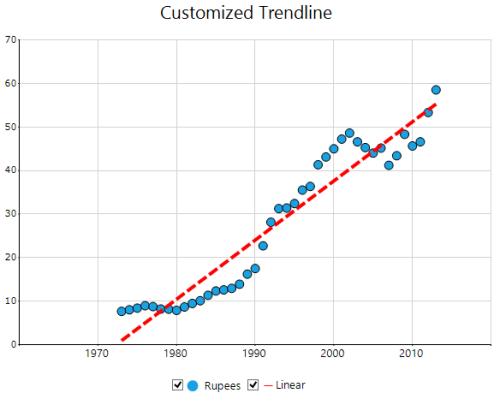

    Chart Series
